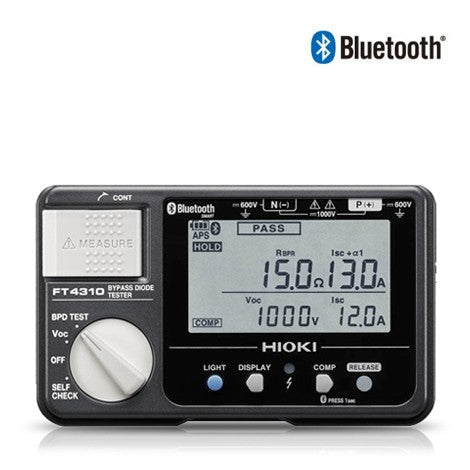

HIOKI Bypass Diode Tester FT4310

Basic specifications

Roll over image to zoom in

Name: HIOKI Bypass Diode Tester FT4310
Brand: HIOKI
Price: 36656000.0 IDR
Availability: OutOfStock

★★★★★(2)

2 Terjual

Share this product

Measurement
items

Bypass diode comparator judgment, Bypass route resistor, Open-circuit voltage, Short-circuit current, Measurement (applied) current

Measurement object

Crystal system string
Open-circuit voltage: 1000 V DC or less, Rated current: 2 A to 12 A DC

Caution:
The FT4310 cannot measure strings that are installed in parallel or complex strings that are installed in combination.

Measurement method

Short-circuit and pulse voltage application

Measurement accuracy

Open-circuit voltage: ±0.2% rdg. ±3 dgt. (at 0 to ±1000 V)
Short-circuit current: ±3% rdg. ±3 dgt. (at 0.0 to 15.0 A)
Bypass route resistance: ±5% rdg. ±5 dgt. (at 0.0 to 15.0 Ω, During pure
resistance measurement)

Measurement time

2 s or less (3 seconds or less when measurement voltage is 10 V or less)

Possible number of measurements

3000 times (Comparator, backlight, Bluetooth® OFF)
LR6 Alkaline battery × 6

Accuracy guaranteed: 1 year

Measurement items	Open-circuit voltage
Measurement range	0 V to 1000 V DC (Displayed up to 1200 V DC), Accuracy: ±0.2% rdg. ±3 dgt.
Response time	Within 1 sec.

Last update: August 2022

Countries and regions where wireless operation is currently supported	Australia, Austria, Bangladesh, Belgium, Bulgaria, Canada, Chile, China, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, Ireland, Israel, Italy, Japan, Kenya, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, New Caledonia, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States, Viet Nam
Note	Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law.
