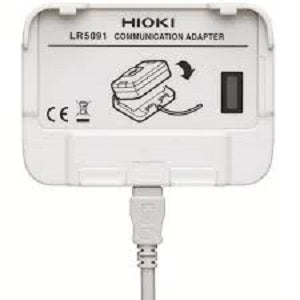

HIOKI Communication Adaptor LR-5091 u/ LR-5000 Series

Share this product

Basic specifications

Function	Transfer data from a data logger to a PC Send settings and the time from a PC to a data logger.
Communication method	Between data loggers: Infrared communication With PC: USB 2.0
Display	N/A
Internal memory (capacity of data)	N/A
Removable storage media	N/A
Power supply	USB bus power
Dimensions and mass	83 mm (3.27 in) W × 61 mm (2.40 in) H × 19 mm (0.75 in) D, 43 g (1.5 oz)
Included accessories	USB cable (1 m) ×1, CD (Application software "LR5000 Utility") ×1

Operating environment	OS: Windows 7 (32/64bit, .NET Framework 2.0 or more), Vista (32bit, SP1 or more), XP (SP2 or more) USB interface (when using the Communication Base 3910/3911, a COM port is required)
Function	• Settings: Communicates via infrared light with LR5000 series loggers to send and receive settings. • Graph function: Displays graphs of up to 16 channels, displays statistical data, etc. • Print function: Print graphs, Print statistical data. • Export function (data CSV output, paste into Excel) • Import function (loads text files from the Clamp On Power HiTester 3169-20/-21 [only demand parameter with a recording interval of at least 1 sec.]) • Processing of data: Scaling, Power calculation, Energy cost calculation, Operating ratio calculation, Integration, Dew point temperature, Calculate between channels
