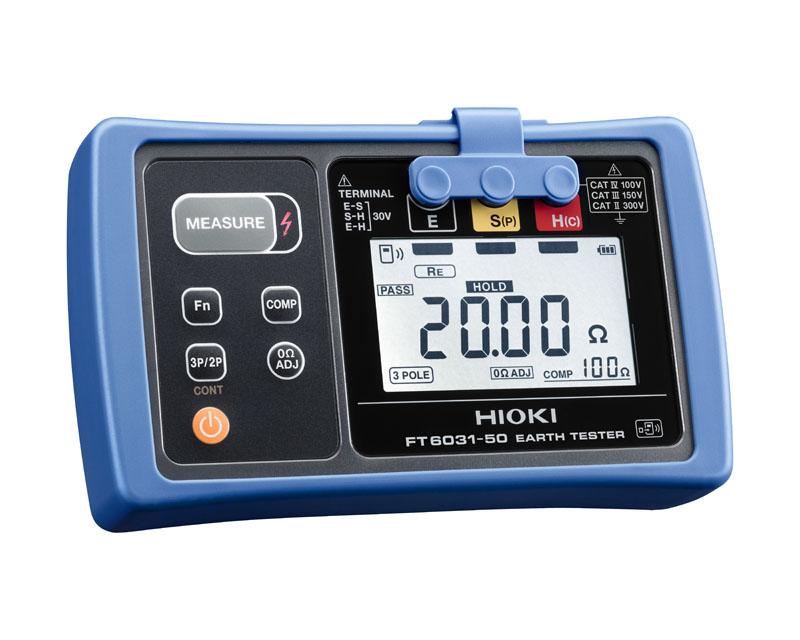

HIOKI Earth TESTER FT6031-50

Name: HIOKI Earth TESTER FT6031-50
Brand: Hioki
Price: 5751500.0 IDR
Availability: OutOfStock

Share this product

Basic specifications

Accuracy guaranteed: 1 year
To ensure safety, use the optional Test Lead L9787 when making measurements using the two-electrode method.

Measurement system	Two-electrode method/three-electrode method (switchable)
Measurement range	20 Ω (0 Ω〜20 Ω)	200 Ω (0 Ω〜200.0 Ω)	2000 Ω (0 Ω〜2000 Ω)
Accuracy	±1.5% rdg ±8 dgt	±1.5% rdg ±4 dgt	±1.5% rdg ±4 dgt
Earth voltage	0〜30.0 V rms Accuracy: ±2.3% rdg ±8 dgt (50 Hz/60 Hz), ±1.3% rdg ±4 dgt (DC)
Allowable earth potential	25.0 V rms (DC or sine wave)
Dustproof and waterproof	IP65/IP67 (EN60529)
Power supply	LR6 Alkaline battery ×4, Possible number of measurements: 500 times (measurement conditions: three-electrode method, measuring 10 Ω at 10-second intervals without Z3210 installed)
Functions	Live wire warning, zero-adjustment, continuous measurement mode, wireless communication (only when Z3210 is connected), and comparator
Dimensions and mass	185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz.) (including batteries and protector, excluding terminal covers and other accessories)
Included accessories	Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measurement Cable L9841 (black 4 m) ×1, Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1, Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1, Carrying Case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1
