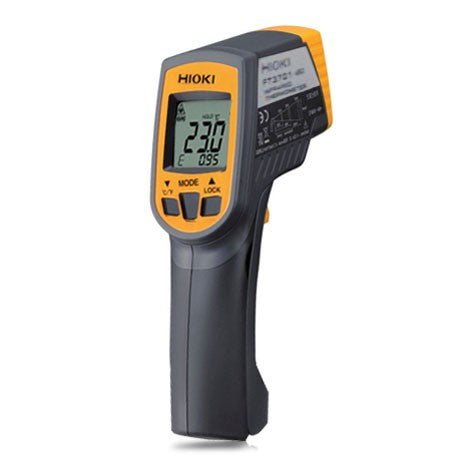

HIOKI Infared Thermo Hitester FT3701-20

Name: HIOKI Infared Thermo Hitester FT3701-20
Brand: Hioki
Price: 3026370.0 IDR
Availability: OutOfStock

Share this product

Basic specifications

Accuracy guaranteed: 1 year

	FT3700-20	FT3701-20
Measurement temperature range	-60.0˚C to 550.0˚C (-76˚F to 1022˚F), 0.1˚C resolution	-60.0˚C to 760.0˚C (-76˚F to 1400˚F), 0.1 ˚C resolution
Accuracy	-35.0˚C to -0.1˚C (-31.0˚F to 31.9˚F) : ±10 %rdg. ±2˚C 0.0˚C to 100.0˚C (-32.0˚F to 212.0˚F) : ±2˚C 100.1˚C to 500.0˚C (212.1˚F to 932.0˚F) : ±2% rdg. Note: -60.0˚C to -35.1˚C (-76.0˚F to -31.1˚F), and over 500.1˚C (932.0˚F), Accuracy not specified
Response time	1 sec (90%)
Measurement wavelength	8 to 14 µm
Thermal emissivity compensation	ε=0.10 to 1 (0.01 step)
Measurement field diameter	ε=0.10 to 1 (0.01 step)	φ 100 mm at 3000 mm (3.94 in at 9.84 ft) (Distance : Spot = 30 : 1)
Sighting	Two-beam laser marker Max 1 mW (class 2), Red
Functions	Continuous measurement mode, MAX/ MIN/ DIF (MAX - MIN)/ AVG measurement, Alarm, Backlight, Auto power-off
Power supply	LR03 (AAA) alkaline battery ×2, 150 mVA, Continuous use of 140 hours (With laser marker, backlight and buzzer are OFF)
Dimensions and mass	48 mm (1.89 in) W × 172 mm (6.77 in) H × 119 mm (4.69 in) D, 256 g (9.0 oz), (including batteries)
Included accessories	Instruction manual ×1, LR03 alkaline battery ×2, Carrying case ×1
