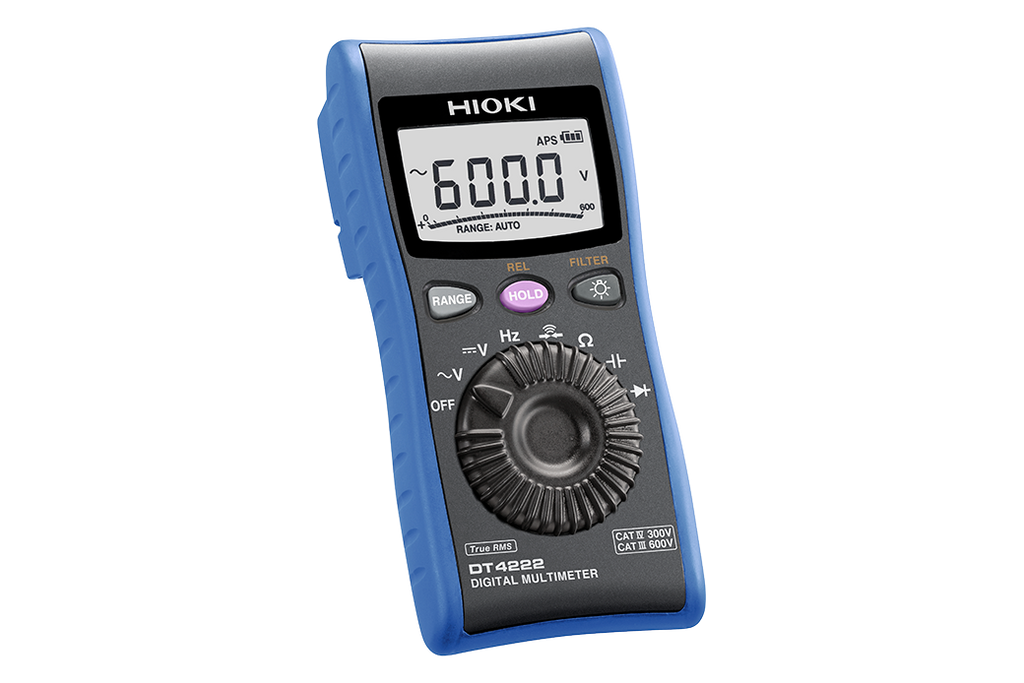

Multitester Hioki DT-4222

Name: Multitester Hioki DT-4222
Brand: Hioki
SKU: 0016844
Price: 2023000.0 IDR
Availability: OutOfStock

HiokiSKU: 0016844

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Basic specifications

Accuracy guaranteed: 1 year
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.

DC Voltage range	600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range	60 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance range	600.0 Ω to 60 MΩ, 6 ranges, Basic accuracy: ±0.9 % rdg. ±5 dgt.
Capacitance range	10 μF to 10 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency range	AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges Basic accuracy: ±0.1 % rdg. ±2 dgt.
Continuity Check	Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more
Diode test	Open terminal voltage: 2.5 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
Voltage Detection	N/A
Other functions	Filter function, display value hold, relative value display, auto-power save
Display	Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates	5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
Power supply	LR03 alkaline batteries ×1, Continuous use: 40 hours (back light OFF)
Dimensions and mass	72 mm (2.83 in) W × 149 mm (5.87 in) H× 38 mm (1.50 in) D,190 g (6.7 oz) (with batteries and holster)
Included accessories	Test Lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1
