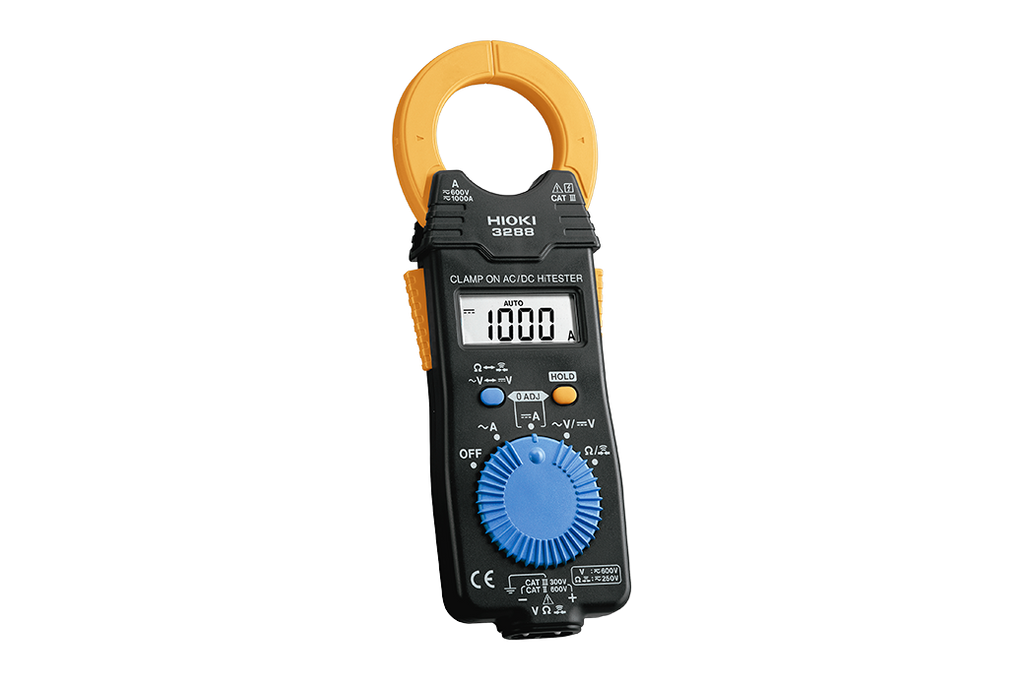

Tang Amper Hioki 3288

Name: Tang Amper Hioki 3288
Brand: Hioki
SKU: 0013957
Price: 5382900.0 IDR
Availability: OutOfStock

HiokiSKU: 0013957

Share this product

Basic specifications

Accuracy guaranteed: 1 year

	3288	3288-20
DC Current range	100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range	100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt.	100.0/ 1000 A, (10 Hz to 500 Hz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range	419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range	4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, Average rectified)	4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, True RMS)
Resistance range	419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Crest factor	N/A	3 or less (2 at 1000 A range, 1.5 at Voltage)
Other functions	Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display	LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply	Coin type lithium battery (CR2032) ×1, Continuous use 60 hours	Coin type lithium battery (CR2032) ×1, Continuous use 35 hours
Core jaw dia.	φ 35 mm (1.38 in)
Dimensions and mass	57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)
Included accessories	Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1
