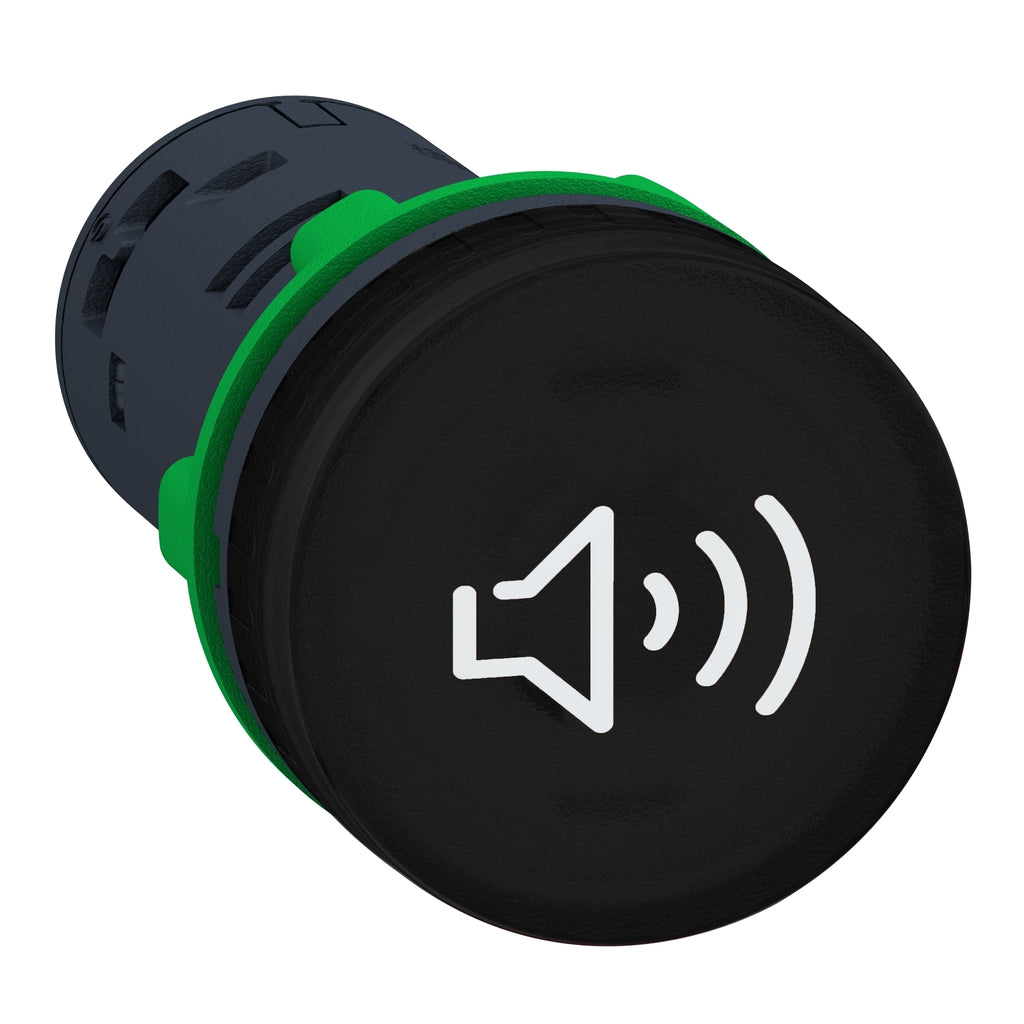

Buzzer Schneider XB5KSB 24VDC

Name: Buzzer Schneider XB5KSB 24VDC
Brand: SCHNEIDER
SKU: 0014197
Price: 824000.0 IDR
Availability: InStock

★★★★★(24)

111 Terjual

Save 33%

SCHNEIDERSKU: 0014197

Share this product

Complementary
[Us] rated supply voltage	24 V +/- 10 %
supply circuit type	AC/DC
supply frequency	50/60 Hz
current consumption	<= 28 mA
signalling type	Continuous or intermittent tone
resistance to high pressure washer	9000000 Pa at 80 °C, distance : 0.1 m
height	29 mm
width	29 mm
depth	55 mm
net weight	0.024 kg

Environment
noise level	90 dB at 6.8 kHz distance 0.1 m (+/- 10 %)
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
overvoltage category	Class II conforming to IEC 60536
electrical shock protection class	Class II conforming to IEC 60536
IP degree of protection	IP20 (rear face) conforming to IEC 60529 IP66 conforming to IEC 60529 IP67 IP69 IP69K
NEMA degree of protection	NEMA 4X NEMA 13
IK degree of protection	IK05 conforming to EN 50102 IK03 conforming to IEC 50102
standards	IEC 60947-5-1 EN 60947-1 EN 60947-5-1 EN 60947-5-4 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-1 UL 508 JIS C8201-5-1 JIS C8201-1
product certifications	UL listed CSA BV

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
