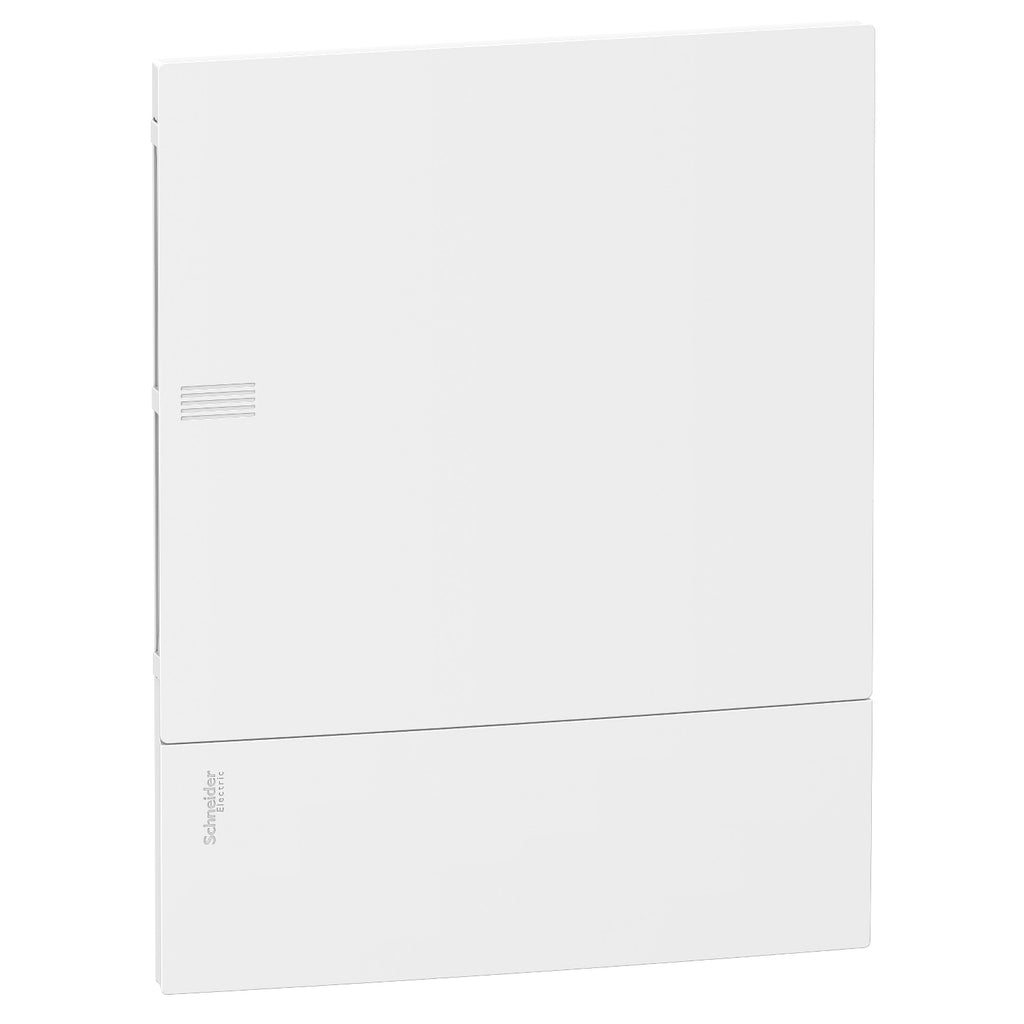

Box MCB Schneider 24 Group (MIP22212) Pintu Opaq IB

Roll over image to zoom in

Box MCB Schneider 24 Group (MIP22212) Pintu Opaq IB

Name: Box MCB Schneider 24 Group (MIP22212) Pintu Opaq IB
Brand: Schneider
SKU: 0011181
Price: 671400.0 IDR
Availability: OutOfStock

Save 11%

SchneiderSKU: 0011181

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

range	Mini Pragma
product or component type	Enclosure
enclosure type	Modular enclosure
Nb of 18 mm modules per row	12
Nb of horizontal rows	2
Type of door	Plain
width	270 mm wall: 294 mm outside:
height	353 mm wall: 377 mm outside:
depth	18 mm outside: 80 mm wall: 98 mm total:
Built-in depth	80 mm

Complementary
enclosure mounting	Flush
9 mm pitches	24
total number of 18 mm modules	24
[In] rated current	63 A
type of rail	35 mm asymmetrical rail
mounting plate description	Without mounting plate
cable entry	Pre-cutted holes
terminal block function	Earth / neutral
number of terminal blocks	1 earth (screwed) with 16 outgoers 1 neutral (screwed) with 16 outgoers
distribution block outgoers	2 x 16 mm² for earth 2 x 16 mm² for neutral 6 x 6 mm² for earth 6 x 6 mm² for neutral 8 x 10 mm² for earth 8 x 10 mm² for neutral
enclosure material	Back part: technoplastic Door: technoplastic Front face: technoplastic
internal depth	76 mm
colour	Door: white (RAL 9003) Front face: white (RAL 9003)
market segment	Small commercial Residential

Environment
standards	IEC 60695-2-11 IEC 60439-3 IEC 60670-24 IEC 529 EN 50102
quality labels	IMQ
fire resistance	Door: 650 °C Back part: 650 °C Front face: 650 °C
IK degree of protection	IK07
ambient air temperature for operation	-25…60 °C
