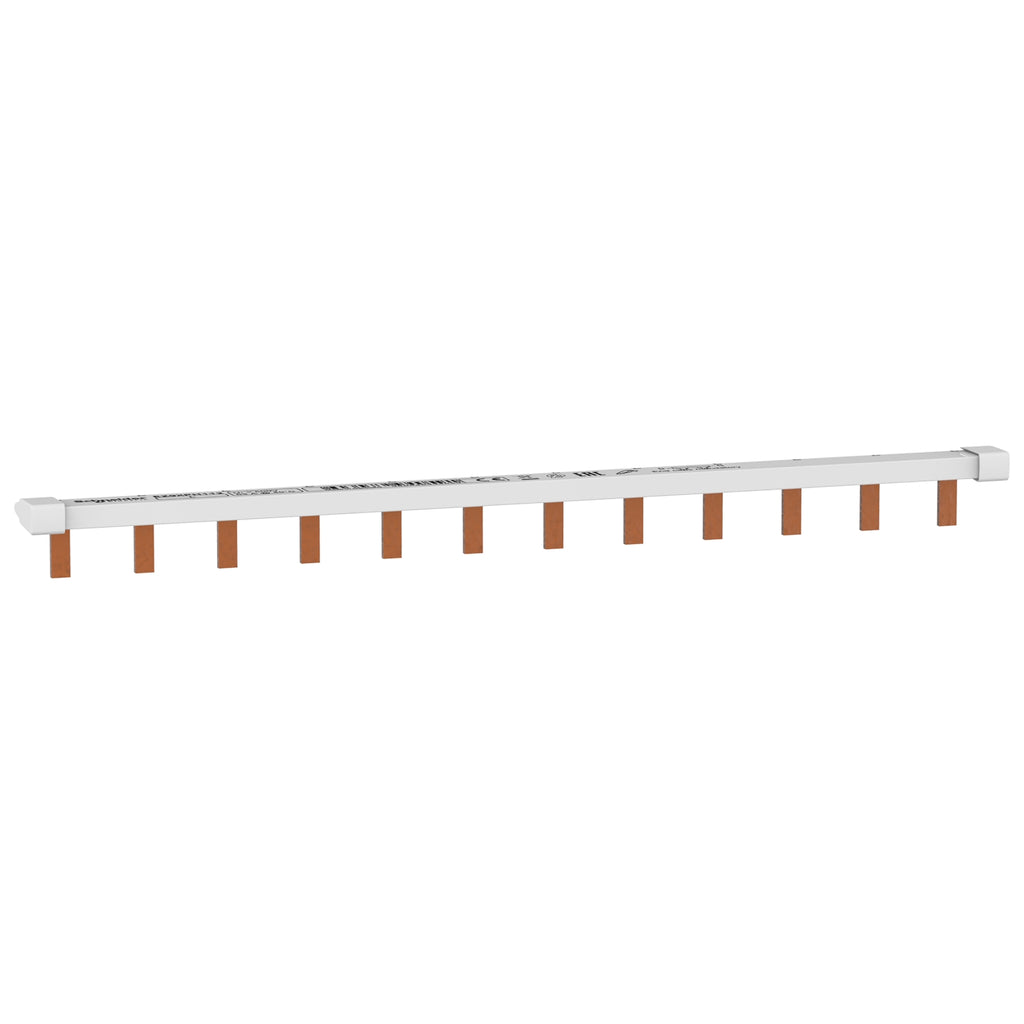

Busbar Sisir Schneider Domae (EZ9XPH112) 1P 63A 12 Module

Roll over image to zoom in

Busbar Sisir Schneider Domae (EZ9XPH112) 1P 63A 12 Module

Name: Busbar Sisir Schneider Domae (EZ9XPH112) 1P 63A 12 Module
Brand: Schneider
SKU: 0003042
Price: 52100.0 IDR
Availability: OutOfStock

Save 22%

SchneiderSKU: 0003042

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Range	Easy9
Product or component type	Comb busbar
Mounting mode	Horizontal
accessory / separate part category	Connection accessory
Lines description	1L
Length in 18 mm modules	12

Complementary
Number of ways	12 ways 1 L
Poles configuration for 1 way	1 x 1P
Connection pitch	18 mm
Connector type	Tooth
Distance between way	18 mm
insulation	Insulated
Device presentation	Cuttable
Provided equipment	2 end piece
[Ie] rated operational current	63 A at 40 °C
[Ue] rated operational voltage	230 V AC 50 Hz Ph/N
[Ui] rated insulation voltage	500 V AC conforming to IEC 61439-1
Mounting location	Top on tunnel type terminals
9 mm pitches	24
Width	220 mm
Colour	Light grey (RAL 7035)
Range compatibility	Easy9 (Easy9 XP)

Environment
Standards	IEC 60439-1 IEC 60664
Fire resistance	850 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree	2

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1.5 cm
Package 1 Width	1.5 cm
Package 1 Length	21.5 cm
Package 1 Weight	34 g
Unit Type of Package 2	BB1
Number of Units in Package 2	15
Package 2 Height	5.7 cm
Package 2 Width	8.5 cm
Package 2 Length	24.7 cm
Package 2 Weight	587 g
Unit Type of Package 3	S03
Number of Units in Package 3	270
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	11.045 kg
