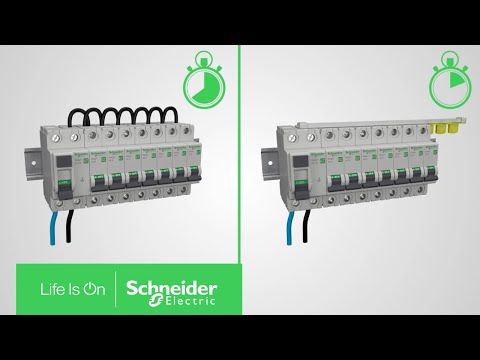

Busbar Sisir Schneider Domae (EZ9XPH212) 2P 63A 12 Module

Roll over image to zoom in

Busbar Sisir Schneider Domae (EZ9XPH212) 2P 63A 12 Module

Name: Busbar Sisir Schneider Domae (EZ9XPH212) 2P 63A 12 Module
Brand: Schneider
SKU: 0003044
Price: 83600.0 IDR
Availability: OutOfStock

Save 22%

SchneiderSKU: 0003044

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Range	Easy9
Product or component type	Comb busbar
Mounting mode	Horizontal
accessory / separate part category	Connection accessory
Lines description	2L
Length in 18 mm modules	12

Complementary
Number of ways	6 ways 2 L
Poles configuration for 1 way	1 x 2P
Connection pitch	18 mm
Connector type	Tooth
Distance between way	36 mm
insulation	Insulated
Device presentation	Cuttable
Provided equipment	2 end piece
[Ie] rated operational current	63 A at 40 °C
[Ue] rated operational voltage	230 V AC 50 Hz Ph/N 400 V AC 50 Hz Ph/Ph
[Ui] rated insulation voltage	500 V AC conforming to IEC 61439-1
Mounting location	Top on tunnel type terminals
9 mm pitches	24
Width	220 mm
Colour	Light grey (RAL 7035)
Range compatibility	Easy9 (Easy9 XP)

Environment
Standards	IEC 60439-1 IEC 60664
Fire resistance	850 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree	2
