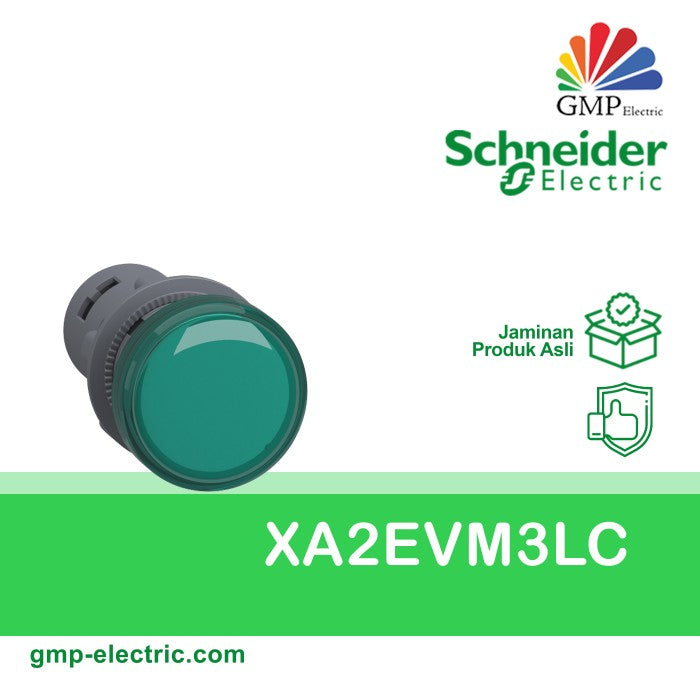

Pilot Lamp Schneider XA2EVM3LC 22 mm Plastic 220VAC Green

Harmony Easy XA2

Monolithic pilot light

XA2

22 mm

Round

Green

LED

Integral LED

220...230 V AC 50/60 Hz

29 mm

29 mm

53 mm

(X1-X2)PL

0.02 kg

Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1

>= 30 x 40 mm (support panel) metal - thickness: 1���6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2���6 mm

Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)

CE
CCC

Screw clamp terminals, <= 2 x 1.5 mm�� with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm�� without cable end conforming to EN/IEC 60947-1

0.8���1 N.m conforming to EN 60947-1

Cross compatible with Philips No 2 screwdriver
Slotted compatible with flat �� 4 mm screwdriver
Slotted compatible with flat �� 5.5 mm screwdriver

400 V (pollution degree 3) conforming to EN/IEC 60947-1

6 kV EN/IEC 60947-1

Steady

0.8���1.2 V AC

<= 20 mA

40000 h at rated voltage and 25 ��C

XA2E

-40���70 ��C

-25���70 ��C

Class I conforming to IEC 536

IP65 (front face) conforming to IEC 60529

IK05 conforming to IEC 50102

IEC 60947-1
IEC 60947-5-1
GB 14048.5
GB 14048.1

CE
CCC

5 gn (f= 12���500 Hz) conforming to IEC 60068-2-6

30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
