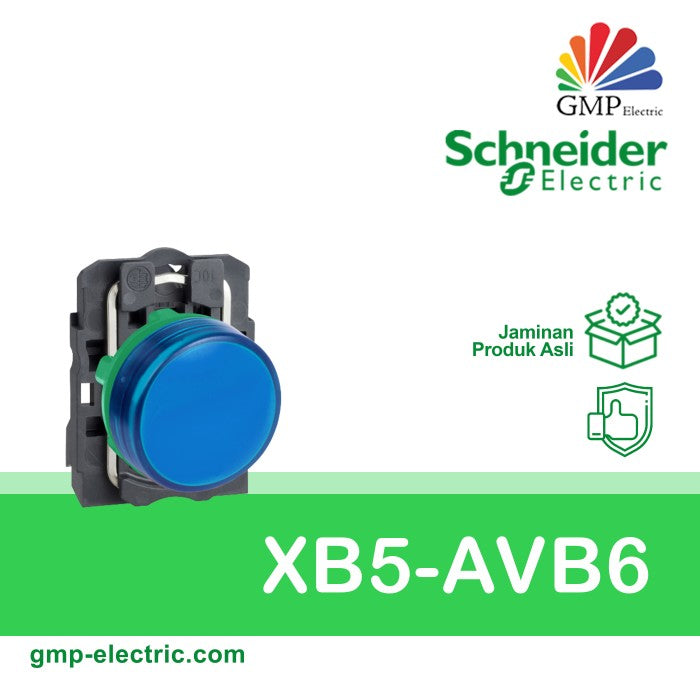

Pilot Lamp Schneider XB5-AVB6 22 mm Plastic 24VAC/DC Biru

Harmony XB5

Pilot light

XB5

Dark grey plastic

Plastic

Standard

22 mm

1

Round

With plain lens

Protected LED

Integral LED

Blue

24 V AC/DC at 50/60 Hz

Complete product

42 mm

30 mm

54 mm

(X1-X2)PL

0.038 kg

7000000 Pa at 55 ��C, distance : 0.1 m

Screw clamp terminals, <= 2 x 1.5 mm�� with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm�� without cable end conforming to EN/IEC 60947-1

250 V (pollution degree 3) conforming to EN 60947-1

EN 60947-1 4 kV

Steady

XB5AVCUST03

XB5

19.2���30 V DC
21.6���26.4 V AC

18 mA

100000 h at rated voltage and 25 ��C

1 kV conforming to IEC 61000-4-5

TH

-40���70 ��C

-40���70 ��C

Class II conforming to IEC 60536

IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K conforming to ISO 20653

NEMA 13
NEMA 4X

IK05 conforming to IEC 50102

UL 508
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
EN/IEC 60947-5-4
JIS C8201-1

CSA
UL listed

5 gn (f= 12���500 Hz) conforming to IEC 60068-2-6

50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

2 kV conforming to IEC 61000-4-4

10 V/m conforming to IEC 61000-4-3

Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Electromagnetic emission class B conforming to IEC 55011

6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Class B conforming to IEC 55011
