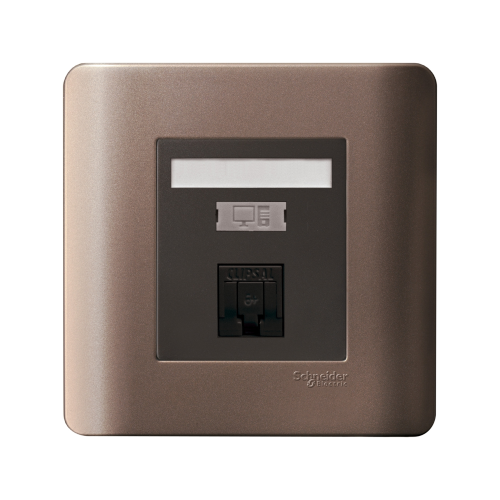

Outlet Data CAT6 ZENCELO Bronze 1 Gang Kotak Kontak Date CAT6 E8431RJ_6_SZ

Roll over image to zoom in

Outlet Data CAT6 ZENCELO Bronze 1 Gang Kotak Kontak Date CAT6 E8431RJ_6_SZ

Name: Outlet Data CAT6 ZENCELO Bronze 1 Gang Kotak Kontak Date CAT6 E8431RJ_6_SZ
Brand: Schneider
SKU: 0014005
Price: 324900.0 IDR
Availability: OutOfStock

Save 20%

SchneiderSKU: 0014005

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
range	ZENcelo
product or component type	Data socket
device application	Communication
colour tint	Silver bronze

Complementary
rated current	1.5 A
communication network category	Data: 6e
insulation resistance	>= 200 MOhm
contact resistance	1 µOhm
number of gangs	1 gang
minimum return loss	23 dB
AWG gauge	AWG 26...AWG 22 (4 twisted pair cables)
contacts material	Housing: PC Contact: phosphor bronze with gold plating IDC contact: phosphor bronze with nickel plating
material	Polycarbonate: plastic part
device mounting	Flush Surface
width	87 mm
height	87 mm
depth	36 mm

Environment
dielectric strength	1000 V for 60 s at 60 Hz
ambient air temperature for operation	1…35 °C
relative humidity	0…95 %
environmental characteristic	No UV resistant
standards	ASTMD4566-98 TIA/EIA-568-B.2-1

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
