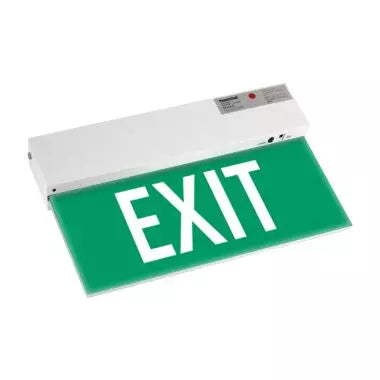

Slim Frameless Exit Sign With Numerous Installation Options
- Ultra bright white LEDs meeting ISO safety colour requirements
- Exceeds SS IEC 60598-2-22 and SS 563 brightness requiremets
- Extra low power consumption
- High Quality, Long Life SMD LED module
- Series connection of LEDs provides equal biasing of all LEDs ensures maximum LED life span and uniform light distribution
- Low battery voltage cut
-off with latch function, to eliminate battery over discharge
- Add-on plate for recess mounting
Spesifikasi
Informasi lebih lanjut
| Range |
Slimline Led |
| Product/Component Type |
Exit Luminaire Range |
| Mode of Operation |
Maintained |
| Lamp |
1.2W White LED module with burning life span > 50,000 hours |
| Main Supply |
220-240 Volts, 50-60Hz |
| Rated Duration |
3 Hours |
| Power Consumption |
3W (Total standy power inclusive of LED converter) |
| Battery Charger |
Regulated variable rate |
| Battery Type |
High Temperature Nickel Cadmium |
| Charge Monitor |
LED |
| Test Facility |
Micro Switch |
| Casing Construction |
Electro-galvanised steel. Epoxy powder coating for casing and gear tray |
| Standards / Compliance |
SS IEC 60598-2-22, SS 563 |
| Safety Features |
Low battery voltage cut off to prevent over discharge |
| Mounting |
Surface mount (Recessed mount option available) |
| Diffuser |
Acrylic plate (fire retardant) |
