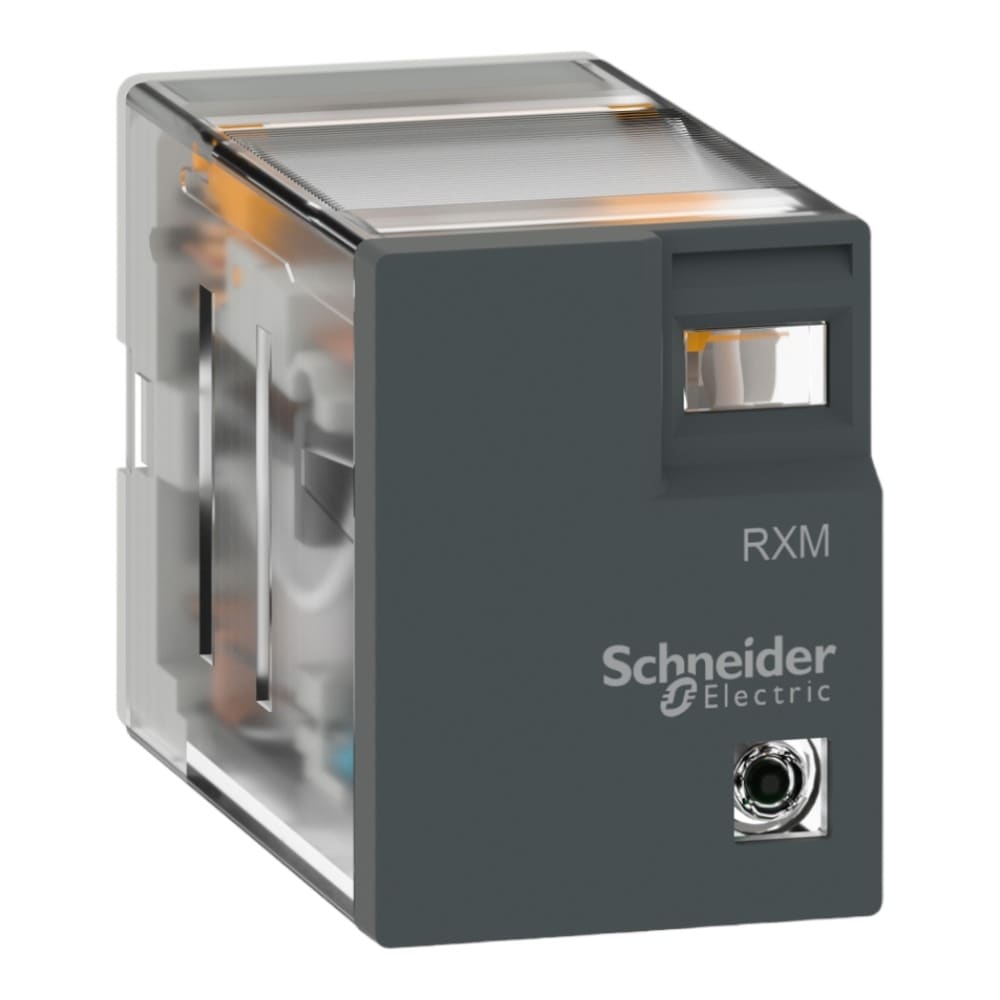

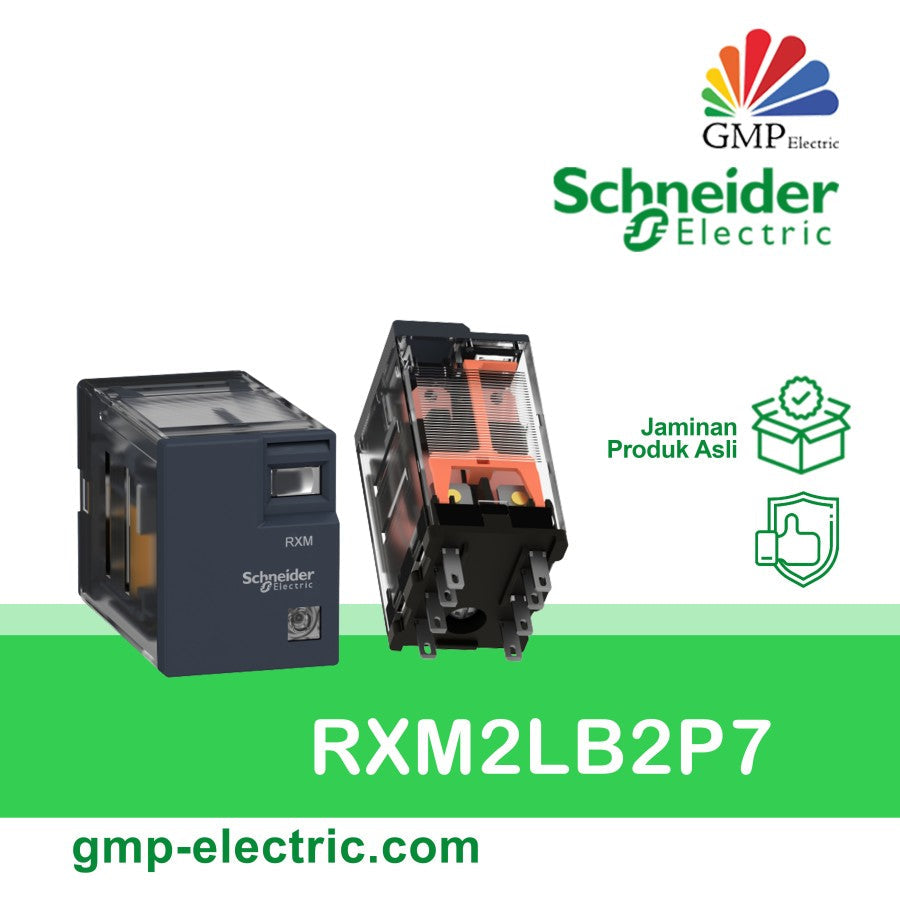

Relay Schneider RXM2LB2P7 230VAC, LED Indicator, 2 C/O 5A 250VAC

Harmony Relay

Miniature

Plug-in relay

RXM

Without

20 %

10

Standard

230V AC

5 A at -40…55 °C

With

Without push-button

250 V conforming to IEC

3.6 kV during 1.2/50 µs conforming to IEC 61810-7

Silver alloy (Ag/Ni)

5 A (AC-1/DC-1) NO conforming to IEC
2.5 A (AC-1/DC-1) NC conforming to IEC

10 mA

250 V AC
250 V DC

17 V

5 A at 250 V AC
5 A at 28 V DC

1250 VA AC
140 W DC

170 mW

<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load

10000000 cycles

100000 cycles for resistive load

0.9 W, DC

>= 0.1 Uc DC

20 ms between coil de-energisation and making of the Off-delay contact
20 ms between coil energisation and making of the On-delay contact

630 Ohm network: DC at 20 °C +/- 10 %

RT I

Level A group mounting

Any position

21 mm

27 mm

46 mm

0.032 kg

2000 V AC between coil and contact
2000 V AC between poles
1000 V AC between contacts

B10d = 100000

EN/IEC 61810-1 (iss. 2)
CE

-40…85 °C

-40…55 °C

3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to EN/IEC 60068-2-6
6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to EN/IEC 60068-2-6

IP40 conforming to EN/IEC 60529

10 gn for opening conforming to EN/IEC 60068-2-27
5 gn for closing conforming to EN/IEC 60068-2-27

370 g

410 mm

210 mm

280 mm
