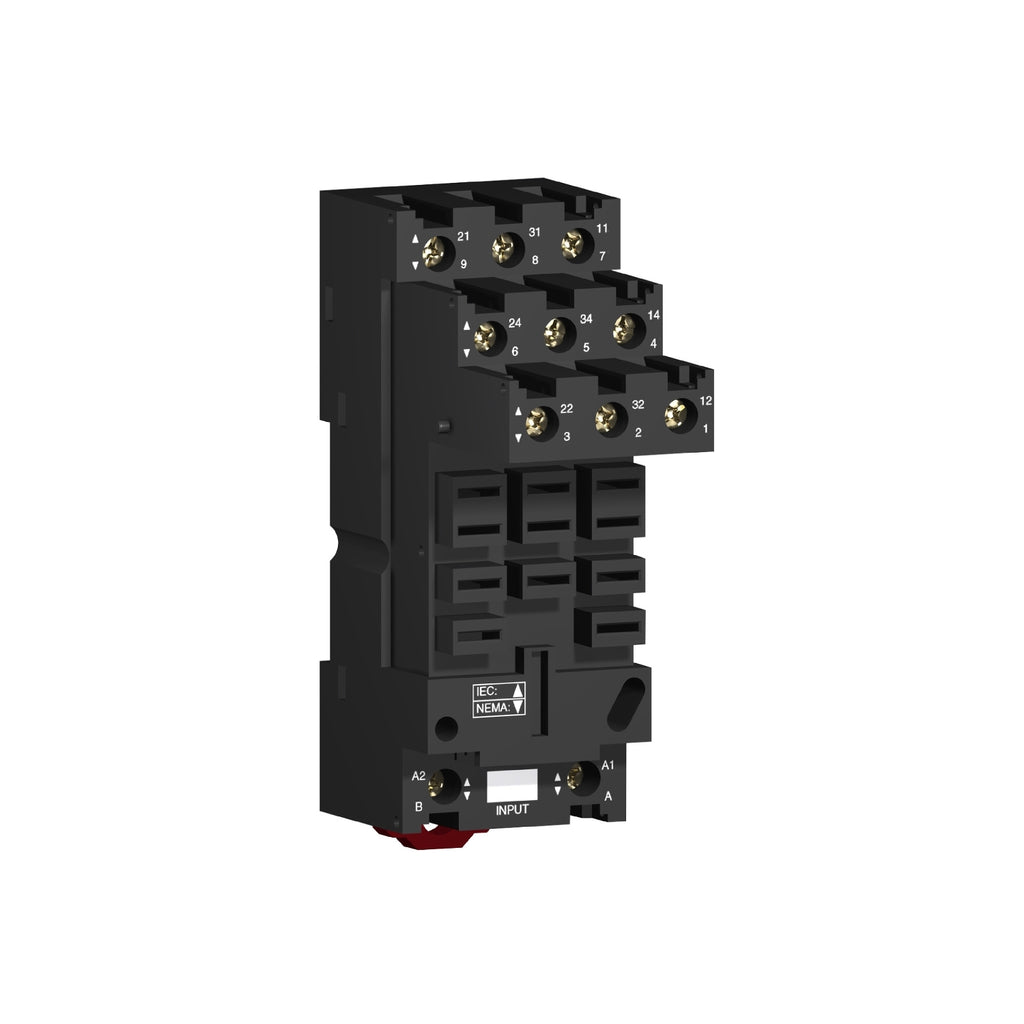

Socket Relay Schneider RUZSF3M 11 Pin (u/RUMC)

SchneiderSKU: 0014737

Share this product

Main
Range of Product	Harmony Electromechanical Relays
Product or Component Type	Socket
contact terminal arrangement	Separate
Product compatibility	Plug-in relay RUM 2 C/O Plug-in relay RUM 3 C/O
Shape of pin	Flat
Device short name	RUZ
Sale per indivisible quantity	10

Complementary
[Ith] conventional free air thermal current	16 A
[Ue] rated operational voltage	< 250 V
Tightening torque	< 1 N.m M3.5
Fixing mode	By screw panel) Clip-on 35 mm symmetrical DIN rail)
Marking	CE
Width	1.42 in (36 mm)
Net Weight	0.21 lb(US) (0.095 kg)
[Uimp] rated impulse withstand voltage	4 kV
Overvoltage category	III
Pollution degree	3

Environment
Connections - terminals	Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
standards	IEC 61984
Product Certifications	CSA UL
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Ambient air temperature for operation	-40…131 °F (-40…55 °C)
IP degree of protection	IP20 conforming to EN/IEC 60529
Dielectric strength	2500 V

Ordering and shipping details
Category	21128-ZELIO ICE CUBE RELAY ACCESSORIES
Discount Schedule	CP2
GTIN	3389119403252
Returnability	Yes
Country of origin	CN
