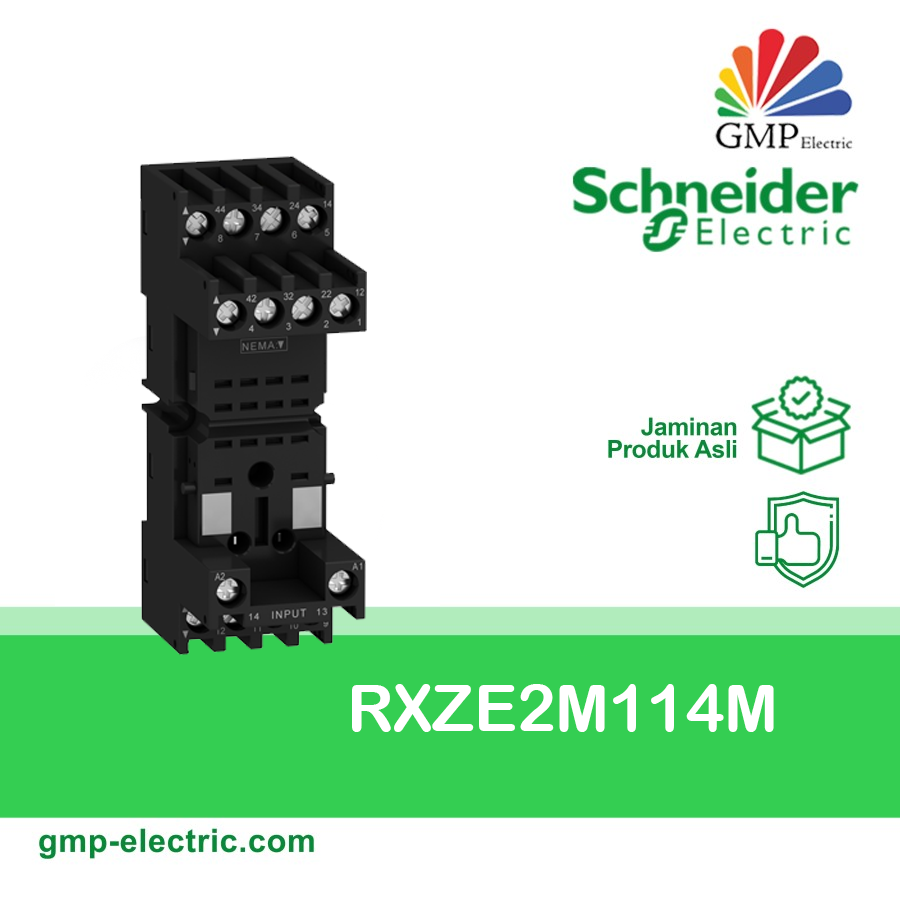

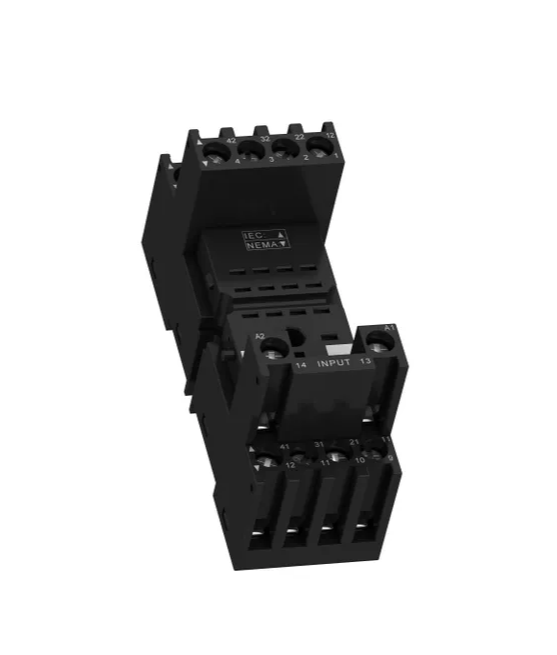

Socket Relay Schneider RXZE2M114M, u/RXM4 &RXM2, 14 kaki, 10A 250VAC

Harmony Relay

Socket

Mixed

Plug-in relay RXM with 2 C/O contact
Plug-in relay RXM with 4 C/O contact

Flat

RXZ

10

10 A

< 250 V

Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

< 1 N.m for M3 screw(s)

By screw (panel)
Clip-on (35 mm symmetrical DIN rail)

CE

27 mm

0.056 kg

IEC 61984

UL
CSA
Lloyd's

-40…85 °C

-40…55 °C

IP20 conforming to EN/IEC 60529

2500 V

PCE

1

54 g

4.3 cm

2.7 cm

8 cm

BB1

10

574 kg

7.7 cm

9.2 cm

14.2 cm

S02

120

30.52 kg

15 cm

30 cm

40 cm
