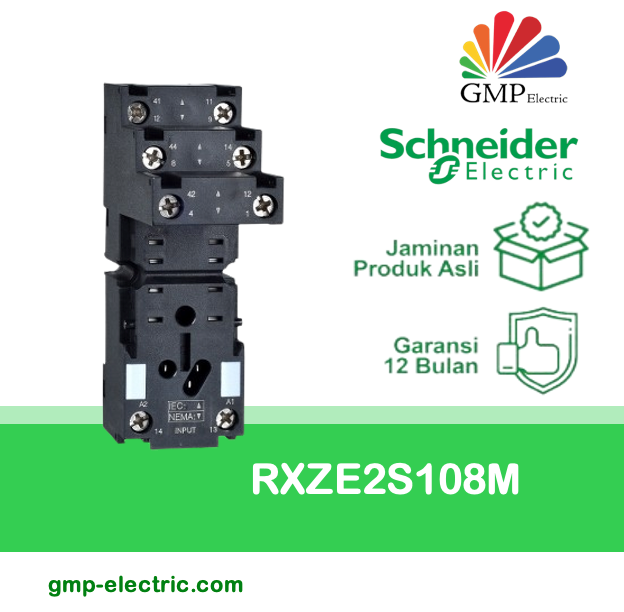

Socket Relay Schneider RXZE2S108M (MY2)

SchneiderSKU: 0009779

Share this product

Main
Range of Product	Harmony Electromechanical Relays Harmony Timer Relays
Product or Component Type	Socket
contact terminal arrangement	Separate
Product compatibility	Plug-in relay RXM 2 C/O Plug-in relay REXL 2 C/O
Shape of pin	Flat
Device short name	RXZ
Sale per indivisible quantity	10

Complementary
[Ith] conventional free air thermal current	12 A
[Ue] rated operational voltage	< 250 V
Connections - terminals	Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² AWG 20...AWG 14) solid without cable end
Tightening torque	< 1 N.m M3
Fixing mode	By screw panel) Clip-on 35 mm symmetrical DIN rail)
Marking	CE
Width	1.06 in (27 mm)
Net Weight	0.13 lb(US) (0.058 kg)

Environment
[Uimp] rated impulse withstand voltage	4 kV
Overvoltage category	III
Pollution degree	3
standards	IEC 61984
Product Certifications	CSA Lloyd's UL
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Ambient air temperature for operation	-40…131 °F (-40…55 °C)
IP degree of protection	IP20 conforming to EN/IEC 60529
Dielectric strength	2500 V

Ordering and shipping details
Category	21128-ZELIO ICE CUBE RELAY ACCESSORIES
Discount Schedule	CP2
GTIN	3389119404266
Returnability	Yes
Country of origin	CN
