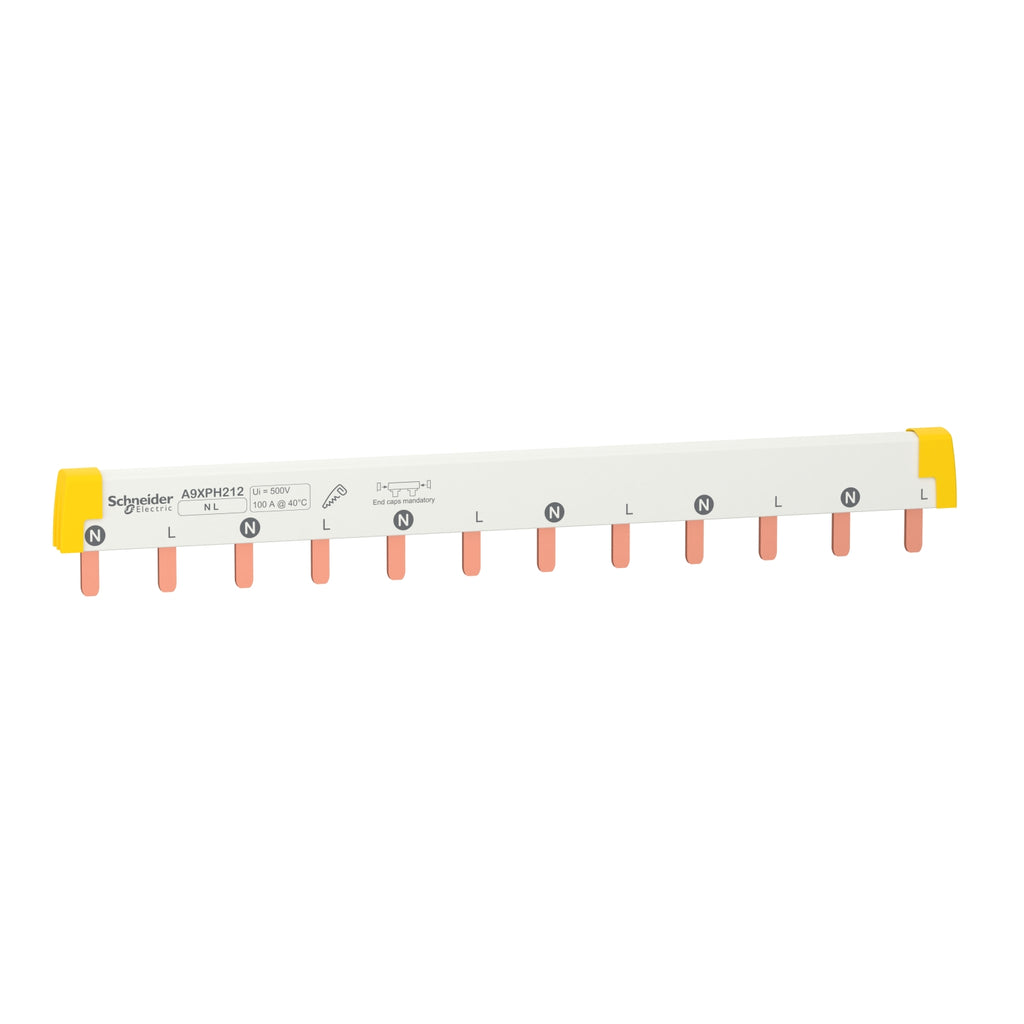

Busbar Sisir Schneider ACTI9 (A9XPH212) 2P 100A 12 Module

Roll over image to zoom in

Busbar Sisir Schneider ACTI9 (A9XPH212) 2P 100A 12 Module

Name: Busbar Sisir Schneider ACTI9 (A9XPH212) 2P 100A 12 Module
Brand: Schneider
SKU: 0017380
Price: 164000.0 IDR
Availability: OutOfStock

Save 46%

SchneiderSKU: 0017380

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Range	Acti9
Product or component type	Comb busbar
Mounting mode	Horizontal
accessory / separate part category	Connection accessory
Lines description	1L + N
Length in 18 mm modules	12

Complementary
Number of ways	6 ways N + 1 L
Poles configuration for 1 way	1 x 1P + N 1 x 2P
Connection pitch	18 mm
Connector type	Tooth
Distance between way	36 mm
Marking	N L
insulation	Insulated
Device presentation	Cuttable
[Ie] rated operational current	100 A at 40 °C
[Ue] rated operational voltage	415 V AC
[Ui] rated insulation voltage	500 V AC conforming to IEC 61439-2
Mounting location	Top or bottom on tunnel type terminals Top or bottom on double terminal
9 mm pitches	24
Width	220 mm
Colour	White (RAL 9003)
Range compatibility	Acti 9 Acti9 iC60 Acti 9 Acti9 iK60 Acti 9 Acti9 iID Acti 9 Acti9 iID K Acti 9 Acti9 iSW Acti 9 Acti9 iSW-NA Multi9 Multi9 C60

Environment
Standards	IEC 60947-7-1 IEC 61439-2
Fire resistance	960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree	3 conforming to IEC 60947-7-1
IP degree of protection	IP20 with end-pieces and tooth covers
