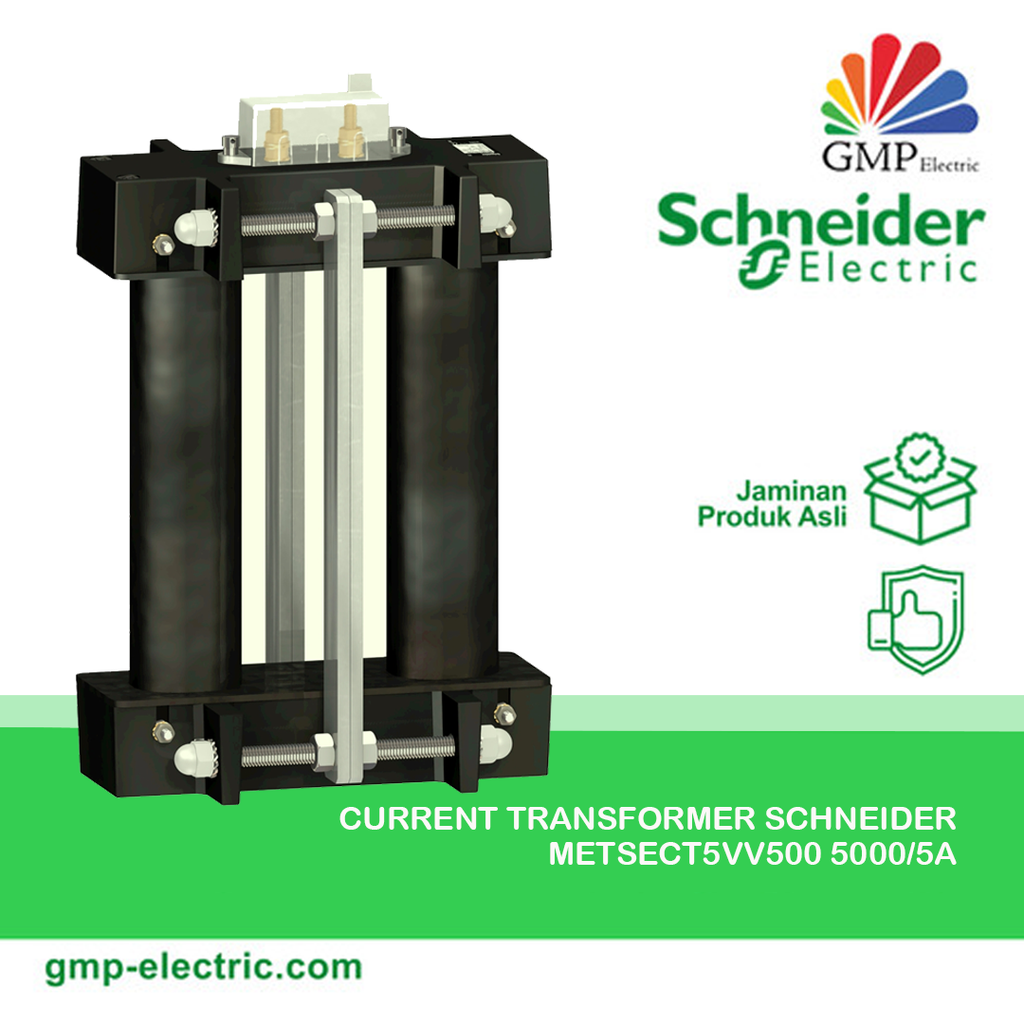

Current Transformer Schneider METSECT5VV500 5000/5A

Save 29%

Share this product

Complementary
current transformer type	Tropicalised for busbar
Current transformer ratio	5000/5
[Ith] conventional free air thermal current	60 kA
dynamic withstand current	2.5 Ith
Maximum safety factor	10
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
[Ui] rated insulation voltage	3 kV
Mounting mode	Insulated locking screw
Mounting support	Busbar
Width	Outside: 175 mm Inner: 55 mm
Height	Outside: 242 mm Inner: 165 mm
Depth	Total : 110 mm
Net weight	3.1 kg
[Uimp] rated impulse withstand voltage	3 kV
Electrical insulation class	Class B
Opening of bars	165 x 55
Sealing	With

Environment
Standards	IEC 61869-2 VDE 0414
Product certifications	CE EAC
IP degree of protection	IP20
Relative humidity	0…95 %
Ambient air temperature for operation	-25…50 °C
