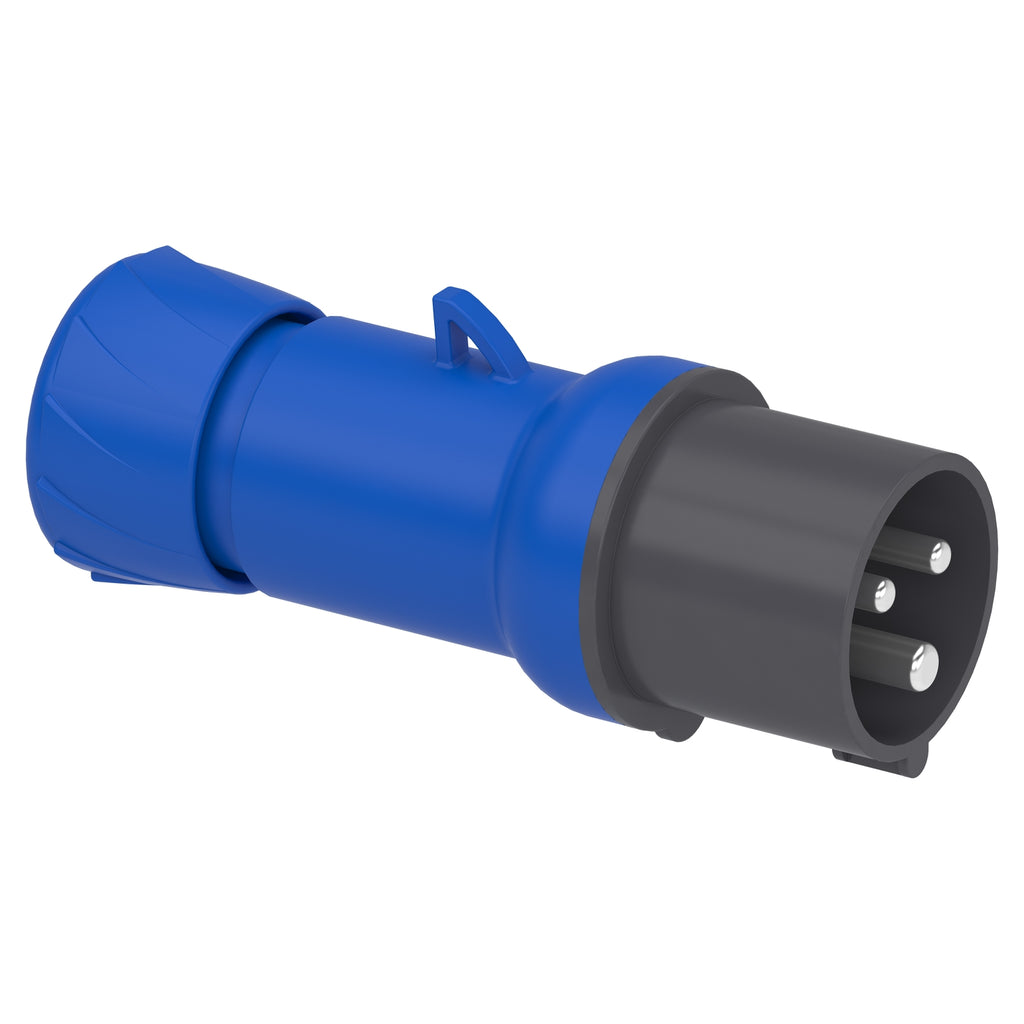

Industrial Plug Schneider Plug 3x16A Blue/White IP44 PKE16M423

Roll over image to zoom in

Industrial Plug Schneider Plug 3x16A Blue/White IP44 PKE16M423

Name: Industrial Plug Schneider Plug 3x16A Blue/White IP44 PKE16M423
Brand: Schneider
SKU: 0008325
Price: 85500.0 IDR
Availability: OutOfStock

Save 41%

SchneiderSKU: 0008325

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
range	PratiKa
product or component type	Wander plug
device short name	PratiKa plug
plug, socket category	Low voltage
poles description	2P + E
network type	AC
outlet standard	Industrial

Complementary
plug, socket, control station shape	Straight
[In] rated current	16 A
[Ue] rated operational voltage	200...250 V
network frequency	50/60 Hz
ground lug clockwise position	6 h
plug, socket material	Housing: self-extinguishing engineering polymer
contacts material	Sleeves: brass
connections - terminals	Captive screws
cable cross section	1…4 mm²
cable outer diameter	8…15 mm
cable entry	Fair lead Cable gland
thread type	Pg 16
net weight	0.123 kg
height	129 mm
width	59 mm
depth	59 mm
colour	Grey (RAL 7035)
voltage colour	Blue

Environment
standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
fire resistance	850 °C conforming to IEC 60695-2-11
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
operating altitude	2000 m
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
