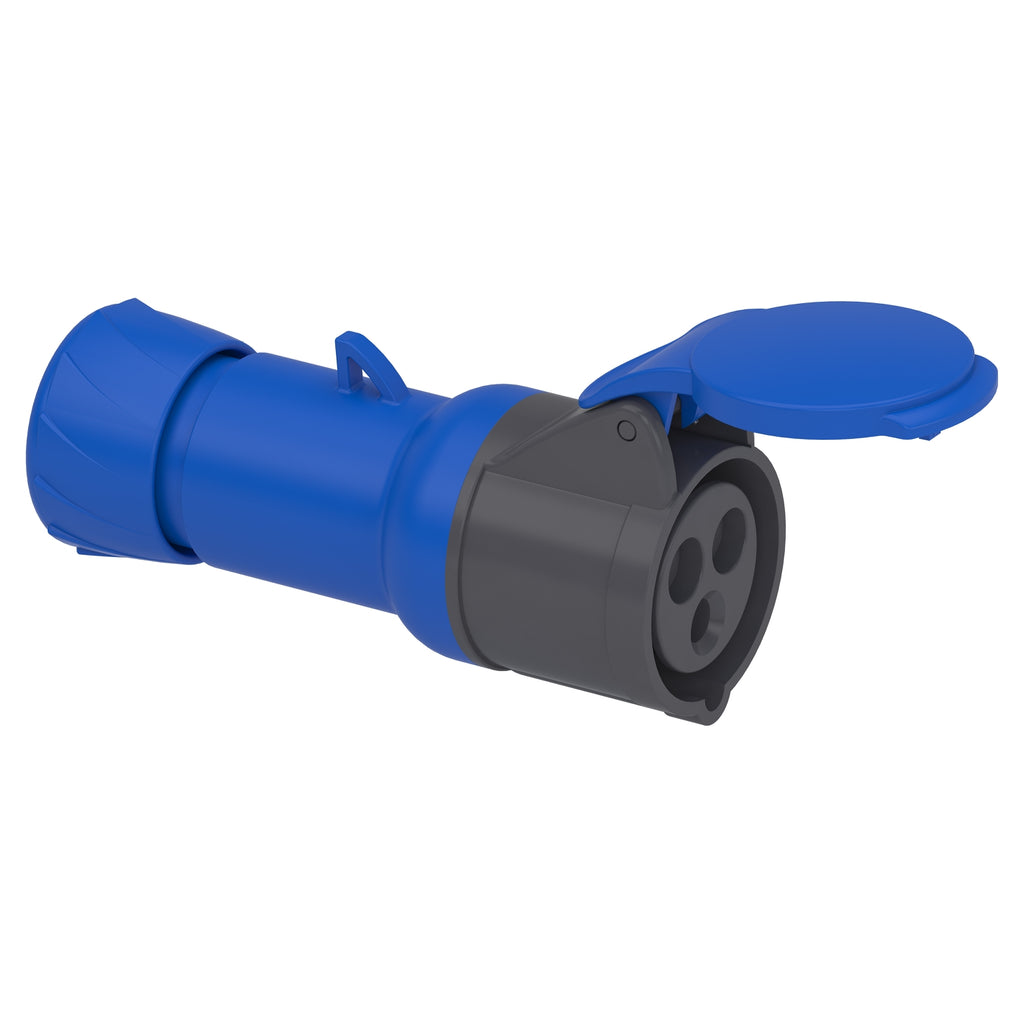

Industrial Socket Schneider Mobile Socket 3x16A Blue/White IP44 PKF16M423

Roll over image to zoom in

Industrial Socket Schneider Mobile Socket 3x16A Blue/White IP44 PKF16M423

Name: Industrial Socket Schneider Mobile Socket 3x16A Blue/White IP44 PKF16M423
Brand: Schneider
SKU: 0008332
Price: 124500.0 IDR
Availability: InStock

Save 41%

SchneiderSKU: 0008332

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
Range	Mureva
Product or component type	Wander socket
Device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	2P + E
Network type	AC
Outlet standard	Industrial

Complementary
Plug, socket, control station shape	Straight
[In] rated current	16 A
[Ue] rated operational voltage	200...250 V
Network frequency	50/60 Hz
ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: brass
Connections - terminals	Captive screws
Cable cross section	1…4 mm²
Cable outer diameter	8…15 mm
Cable entry	Fair lead Cable gland
Thread type	Pg 21
Net weight	0.16 kg
height	78 mm
Width	78 mm
Depth	140 mm
Colour	Grey (RAL 7035)
Voltage colour	Blue

Environment
standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-1
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
