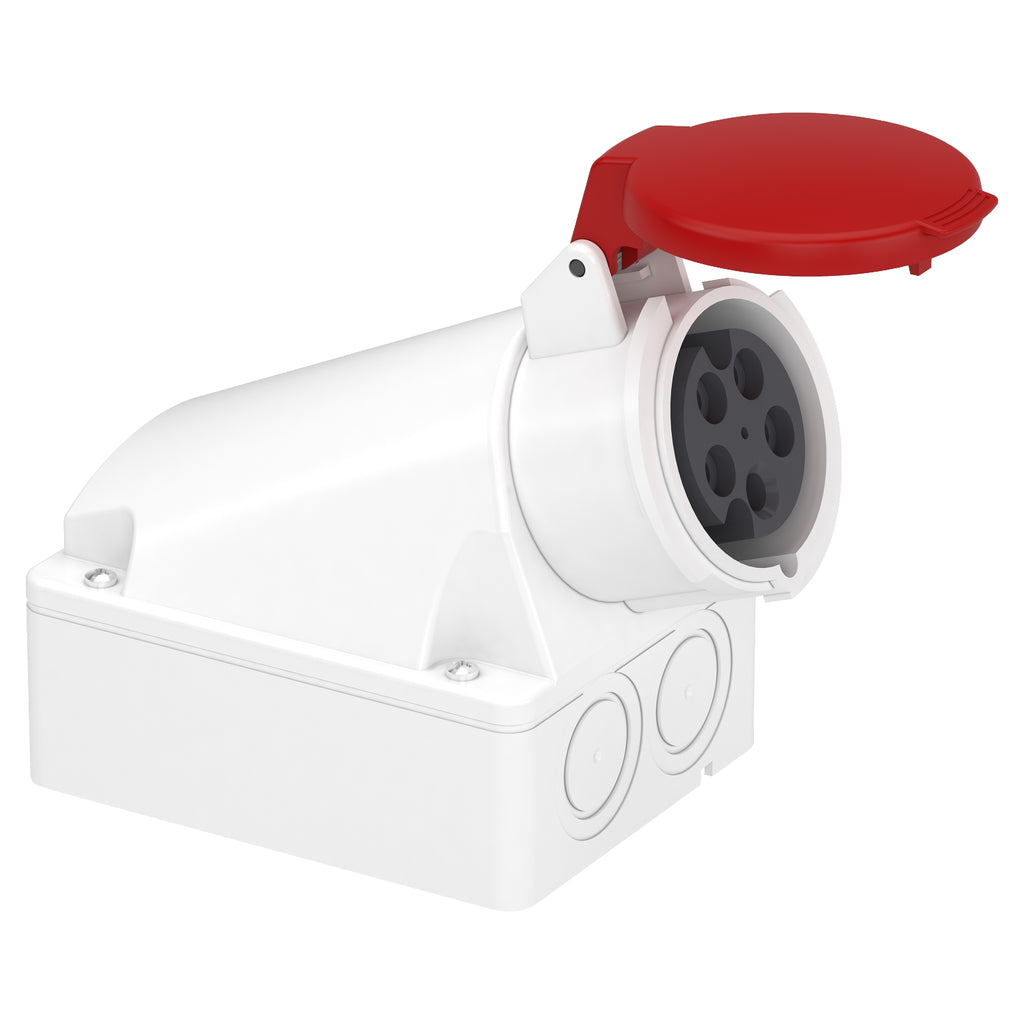

Industrial Socket Schneider Wall Mounted 5x16A Red/White IP45 83109

Roll over image to zoom in

Industrial Socket Schneider Wall Mounted 5x16A Red/White IP45 83109

Name: Industrial Socket Schneider Wall Mounted 5x16A Red/White IP45 83109
Brand: Schneider
SKU: 0008306
Price: 304000.0 IDR
Availability: OutOfStock

Save 33%

SchneiderSKU: 0008306

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
Range	Mureva
Product or component type	Socket
device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	3P + N + E
Network type	AC
Outlet standard	Industrial

Complementary
Mounting mode	Wall-mounted
Plug, socket, control station shape	Angled
[In] rated current	16 A
[Ue] rated operational voltage	380...415 V
Network frequency	50/60 Hz
ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Connections - terminals	Captive screws, completely loosened
Cable cross section	1…4 mm²
Cable outer diameter	8…15 mm
Net weight	0.453 kg
Base dimension	106 x 130 mm
height	130 mm
Width	106 mm
Depth	176 mm
Colour	Grey (RAL 7035)
Voltage colour	Red

Environment
standards	EN 60309-2 EN 60309-1
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-11
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s )
