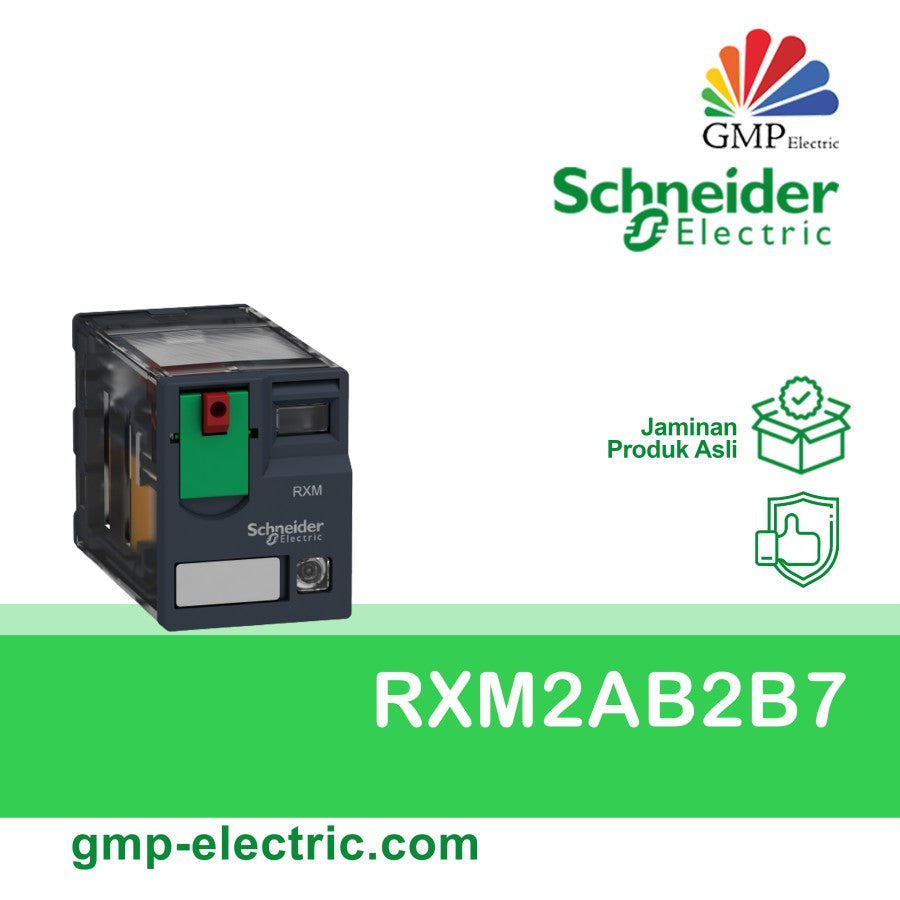

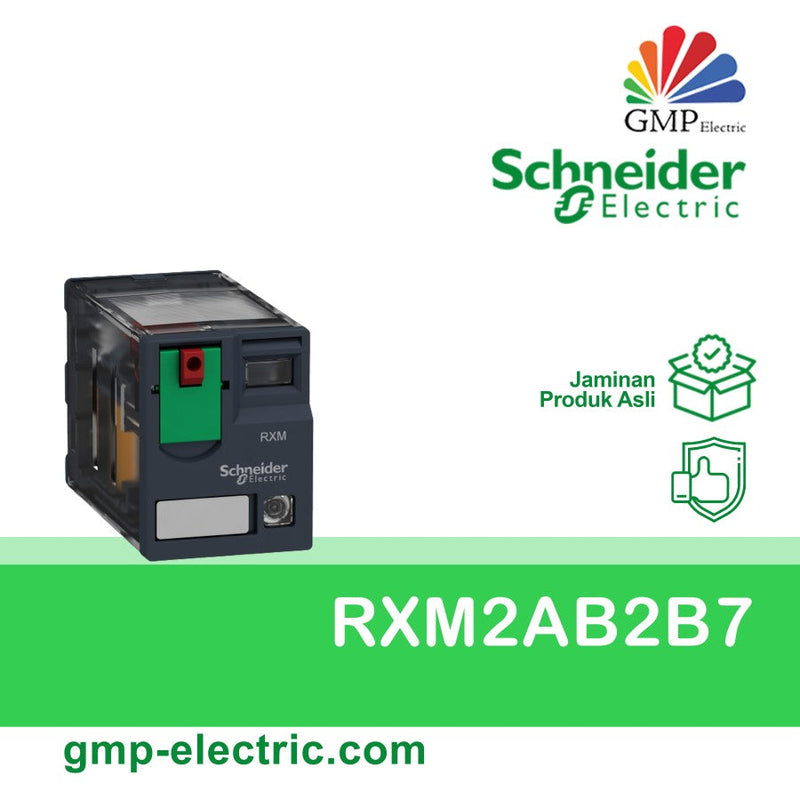

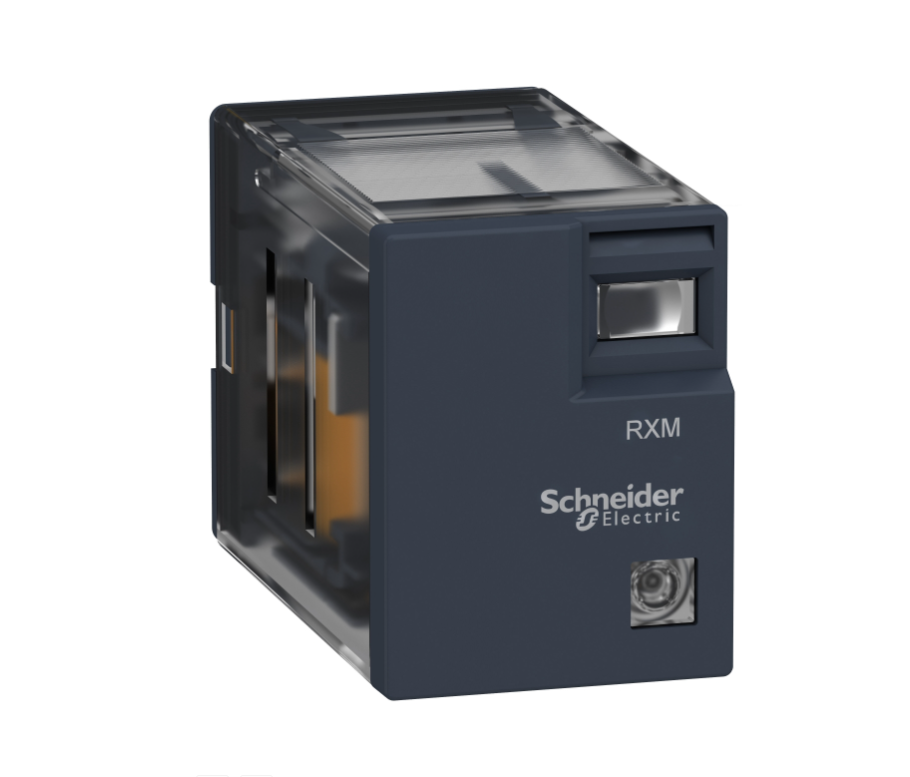

Relay Schneider RXM2AB2B7 24VAC, LED Indicator, 2 C/O 5A 250VAC

Share this product

Main
range of product	Harmony Relay
series name	Miniature
product or component type	Plug-in relay
device short name	RXM
coil interference suppression	Without
utilisation coefficient	20 %
sale per indivisible quantity	10

Complementary
contact operation	Standard
[Uc] control circuit voltage	24 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current	5 A at -40…55 °C
status LED	With
control type	Without push-button
[Ui] rated insulation voltage	250 V conforming to IEC
[Uimp] rated impulse withstand voltage	3.6 kV during 1.2/50 µs conforming to IEC 61810-7
contacts material	Silver alloy (Ag/Ni)
[Ie] rated operational current	5 A (AC-1/DC-1) NO conforming to IEC 2.5 A (AC-1/DC-1) NC conforming to IEC
minimum switching current	10 mA
maximum switching voltage	250 V AC 250 V DC
minimum switching voltage	17 V
load current	5 A at 250 V AC 5 A at 28 V DC
maximum switching capacity	1250 VA AC 140 W DC
minimum switching capacity	170 mW
operating rate	<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
mechanical durability	10000000 cycles
electrical durability	100000 cycles for resistive load
average coil consumption in VA	1.2 AC
drop-out voltage threshold	>= 0.15 Uc AC
operating time	20 ms between coil de-energisation and making of the Off-delay contact 20 ms between coil energisation and making of the On-delay contact
average resistance	160 Ohm network: AC at 20 °C +/- 15 %
rated operational voltage limits	19.2...26.4 V AC
protection category	RT I
test levels	Level A group mounting
operating position	Any position

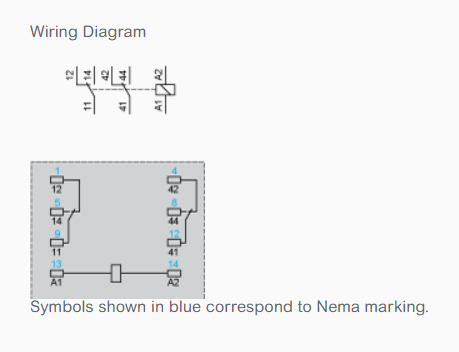

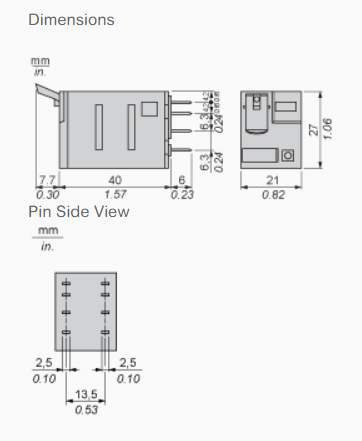

CAD overall width	21 mm
CAD overall height	27 mm
CAD overall depth	46 mm
net weight	0.033 kg
dielectric strength	2000 V AC between coil and contact 2000 V AC between poles 1000 V AC between contacts
safety reliability data	B10d = 100000

Environment
standards	CE EN/IEC 61810-1 (iss. 2)
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-40…55 °C
vibration resistance	3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to EN/IEC 60068-2-6 6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to EN/IEC 60068-2-6
IP degree of protection	IP40 conforming to EN/IEC 60529
shock resistance	10 gn for opening conforming to EN/IEC 60068-2-27 5 gn for closing conforming to EN/IEC 60068-2-27
