Description

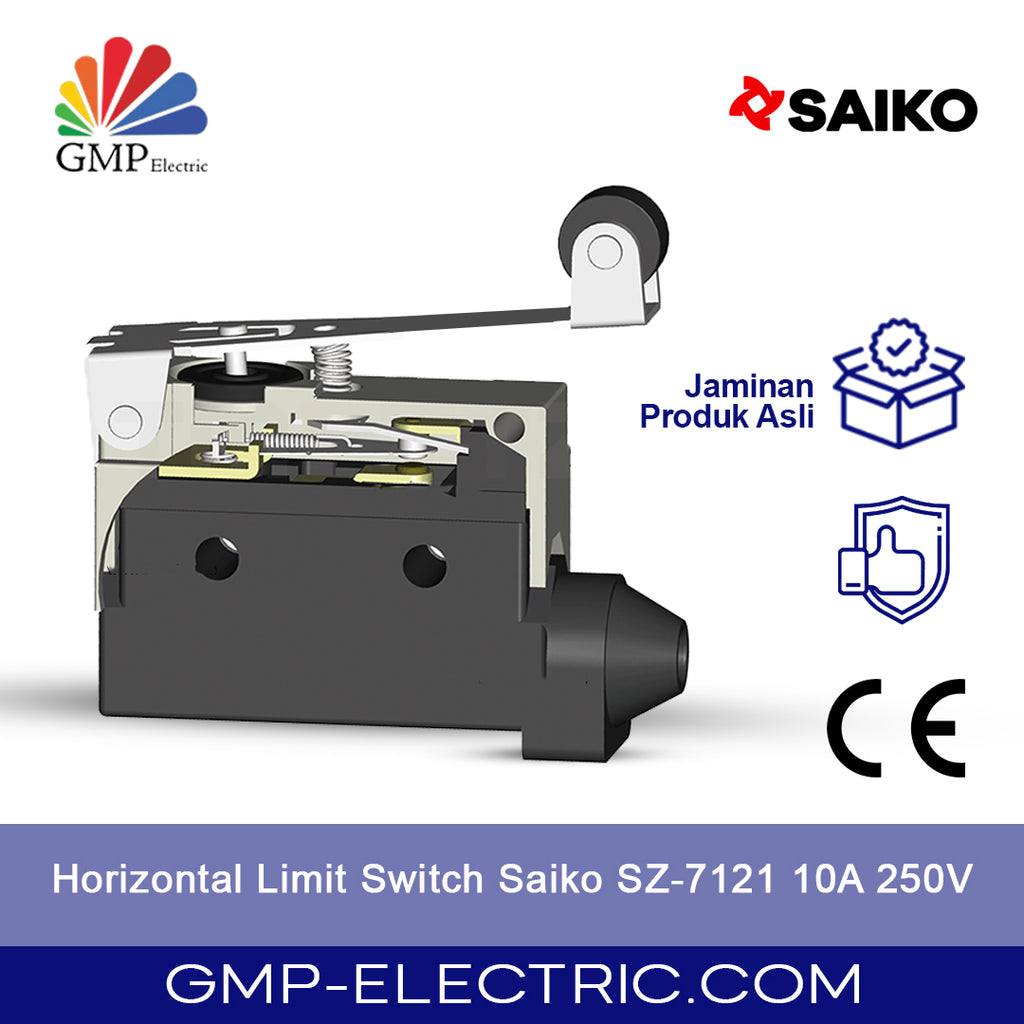

Horizontal Limit Switch Saiko SZ-7121 10A 250V
■ Contact Form:
Ratings
| Rated voltage | Noninductive Load (A) | Inductive Load (A) | ||||||
| Resistance Load | Lamp Load | Inductive Load (A) | Motor Load | |||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125VAC | 10 | 3 | 1.5 | 10 | 5 | 2.5 | ||
| 250VAC | 10 | 2.5 | 1.25 | 10 | 3 | 1.5 | ||
| 480VAC | 3 | 1.5 | 0.75 | 2.5 | 1.5 | 0.75 | ||
| 8VDC | 10 | 3 | 1.5 | 6 | 5 | 2.5 | ||
| 14VDC | 10 | 3 | 1.5 | 6 | 5 | 2.5 | ||
| 30VDC | 6 | 3 | 1.5 | 6 | 5 | 2.5 | ||
| 125VDC | 0.5 | 0.4 | 0.4 | 0.05 | 0.05 | 0.05 | ||
| 250VDC | 0.25 | 0.2 | 0.2 | 0.03 | 0.03 | 0.03 | ||
NOTES: 1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current
3. while motor load has an inrush current of 6 times the steady-state current.
4. Product with spring, its usable range of operating part is within one third of the whole
spring length from the front end of spring.
Characteristics
| Operation speed | 0.05mm-50cm/sec |
| Operating frequency | Electiacl: 30 operations/minute |
| Contact resistance | 15mΩmax. (initial value) |
| Insulation resistance | 100mΩ above(at 500VDC) |
| Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| Vibration | Action:10 to 55Hz,1.5mm pairs swing |
| Shock | Mechanical durable: 1,000m/Sec2(about 100g's) Malfunction: 300m/Sec2(about 30g's) |
| Ambient temperature | -10~+80℃ (With no icing) |
| Humidity | 35- 95% RH |
| Weight |
About 53g (TZ-7121) About 87g (TZ-7312) |
| Electrical life | Above 500000 |
Operating Characteristics
| Operating Characteristics | Model |
TZ-7100 |
TZ-7110 |
TZ-7310 |
TZ-7312 |
TZ-7120 |
| Operating force | OF(Max) |
5.88N |
5.88N |
5.88N |
5.88N |
1.47N |
| Release force | RF(Min) |
0.98N |
0.98N |
0.98N |
0.98N |
0.392N |
| Pre-travel | PT(Max) |
2.0mm |
2.0mm |
2.0mm |
2.0mm |
13.5mm |
| Over-travel | OT(Min) |
0.8mm |
5.0mm |
6.0mm |
6.0mm |
4.0mm |
| Movement differential | MD(Max) |
0.8mm |
0.8mm |
0.8mm |
0.8mm |
3.2mm |
| Operational position | OP |
30.5±0.8mm |
44±1.2mm |
21.8±1.2mm |
33.3±1.2mm |
25±1mm |
| Initial position | FP |
35mm |
| Operating Characteristics | Model |
TZ-7140 |
TZ-7121 |
TZ-7141 |
TZ-7124 |
TZ-7144 |
TZ-7166 |
| Operating force | OF(Max) |
2.156N |
1.764N |
2.352N |
1.96N |
2.744N |
1.176N |
| Release force | RF(Min) |
0.588N |
0.49N |
0.784N |
0.588N |
0.98N |
|
| Pre-travel | PT(Max) |
8.5mm |
11.0mm |
6.5mm |
11mm |
6.5mm |
250mm |
| Over-travel | OT(Min) |
2.5mm |
3.0mm |
2.0mm |
3.0mm |
2.0mm |
11mm |
| Movement differential | MD(Max) |
2.0mm |
2.4mm |
1.5mm |
2.4mm |
1.5mm |
|
| Operational position | OP |
25±1mm |
40±1mm |
40±1mm |
50±1.2mm |
50±1.2mm |
|
| Initial position | FP |
32mm |
46mm |
56mm |
