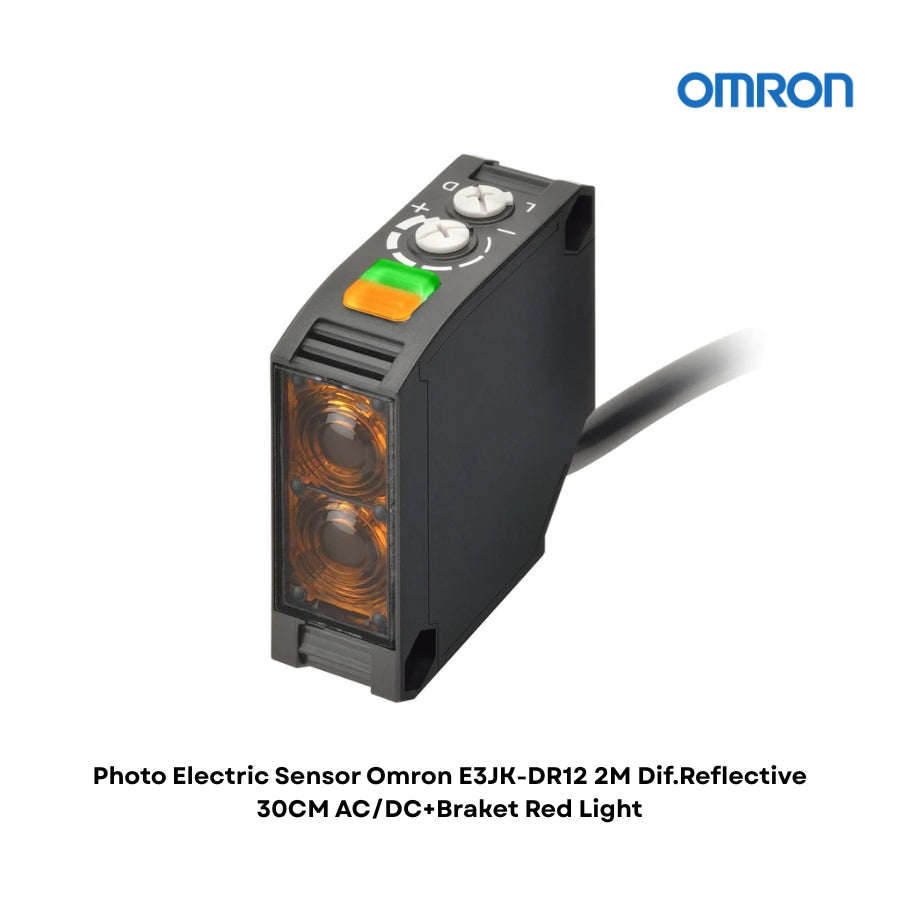

SPESIFIKASI PRODUK
• Brand: OMRON
• Model: E3JK-DR12 2M
• Type: Photoelectric Sensor
• Sensing Method: Diffuse-Reflective
• Sensing Distance: 300 mm / 30 cm
• Light Source: Red LED 624 nm
• Power Supply: 24–240VAC ±10% / 24–240VDC ±10%
• Frequency AC: 50/60 Hz
• Output: Relay Output SPDT
• Contact Rating: 250VAC 3A max.
• Operation Mode: Light-ON / Dark-ON Selectable
• Response Time: 20 ms max.
• Sensitivity Setting: Single-turn Adjustment
• Cable: Pre-wired 2 meter
• Housing: ABS
• Protection Degree: IP64
• Operating Temperature: -25 hingga +55°C
• Operating Humidity: 35–85% RH
KEUNGGULAN
✓ Brand Omron Terpercaya
✓ Red Light 624 nm sehingga mudah digunakan untuk aplikasi deteksi objek
✓ Jarak sensing hingga 30 cm
✓ Mendukung AC/DC 24–240V
✓ Dilengkapi Relay Output SPDT
✓ Mode Light-ON / Dark-ON dapat dipilih
✓ Kabel pre-wired 2 meter
✓ Dilengkapi mounting bracket pada varian -C
✓ Housing ABS dengan proteksi IP64
✓ Cocok untuk panel kontrol dan otomasi industri
BERAT PRODUK
Perkiraan ±180 gram/unit
