SPESIFIKASI PRODUK
-
Brand: OMRON
-

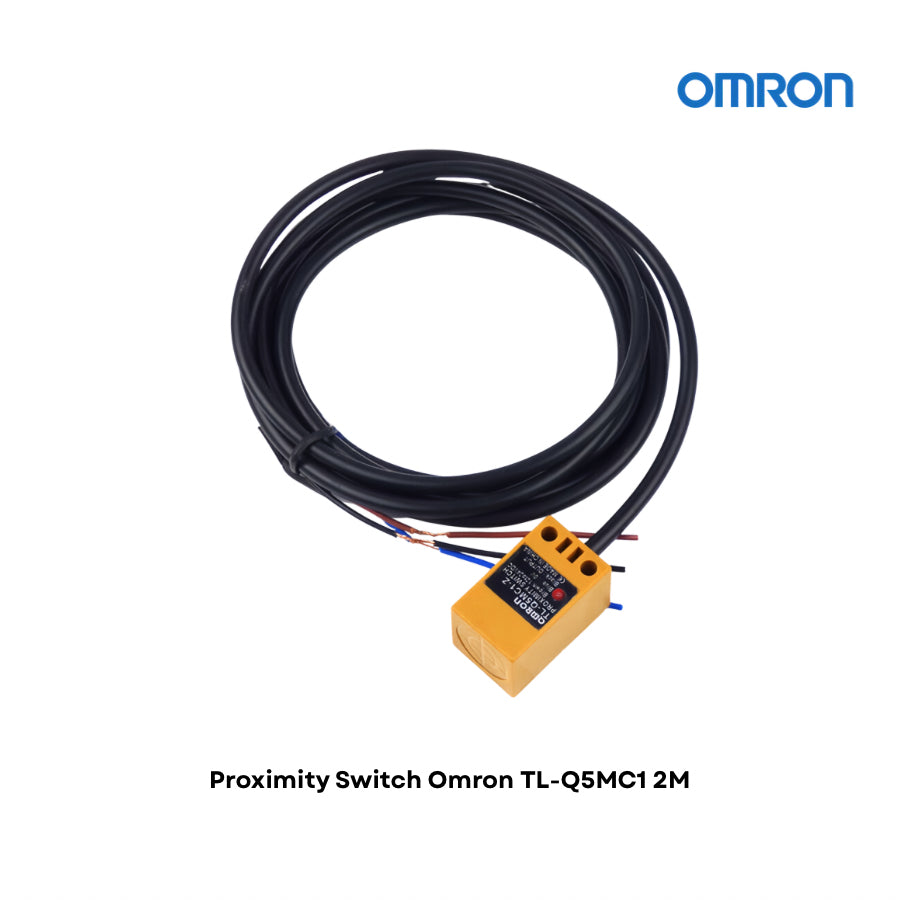

Model: TL-Q5MC1 2M
-
Series: TL-N / TL-Q
-
Type: Rectangular Standard Proximity Sensor
-
Sensing Method: Inductive
-
Shape: Square / Rectangular
-
Sensing Head Size: 17 × 17 × 28 mm
-
Shielding: Unshielded
-
Sensing Distance: 5 mm ±10%
-
Setting Distance: 0–4 mm
-
Differential Distance: Maks. 10% dari sensing distance
-
Sensing Object: Ferrous metal
-
Standard Sensing Object: Iron 15 × 15 × 1 mm
-
Power Supply: 12–24VDC
-
Operating Voltage Range: 10–30VDC
-
Ripple: Maks. 10%
-
Current Consumption: Maks. 10 mA pada 24VDC
-
Output: NPN Open Collector
-
Output Switching Capacity: Maks. 50 mA / 30VDC
-
Operation Mode: NO (Normally Open)
-
Response Frequency: 500 Hz
-
Response Time: Maks. 2 ms
-
Indicator: LED merah / detection indicator
-
Connection: Pre-wired cable
-
Cable Length: 2 meter
-
Protection: IP67
-
Operating Temperature: -25°C hingga +70°C
-
Operating Humidity: 35–95% RH
-
Protection Circuit: Reverse polarity protection & surge suppressor
-
Material: Heat-resistant ABS
KEUNGGULAN
✓ Brand Omron Terpercaya
✓ Sensing distance hingga 5 mm.
✓ Menggunakan sistem inductive proximity sensing, tanpa kontak langsung dengan objek.
✓ Output NPN Open Collector.
✓ Konfigurasi NO (Normally Open).
✓ Menggunakan DC 3-wire sehingga cocok untuk berbagai rangkaian kontrol industri.
✓ Sudah dilengkapi kabel pre-wired 2 meter.
✓ Memiliki proteksi IP67.
✓ Response time cepat, maksimal 2 ms.
✓ Memiliki detection indicator LED merah.
✓ Dilengkapi perlindungan terhadap reverse polarity dan surge.
✓ Desain compact dengan ukuran sensing head 17 × 17 × 28 mm.
BERAT PRODUK
Perkiraan ±90 gram/unit
