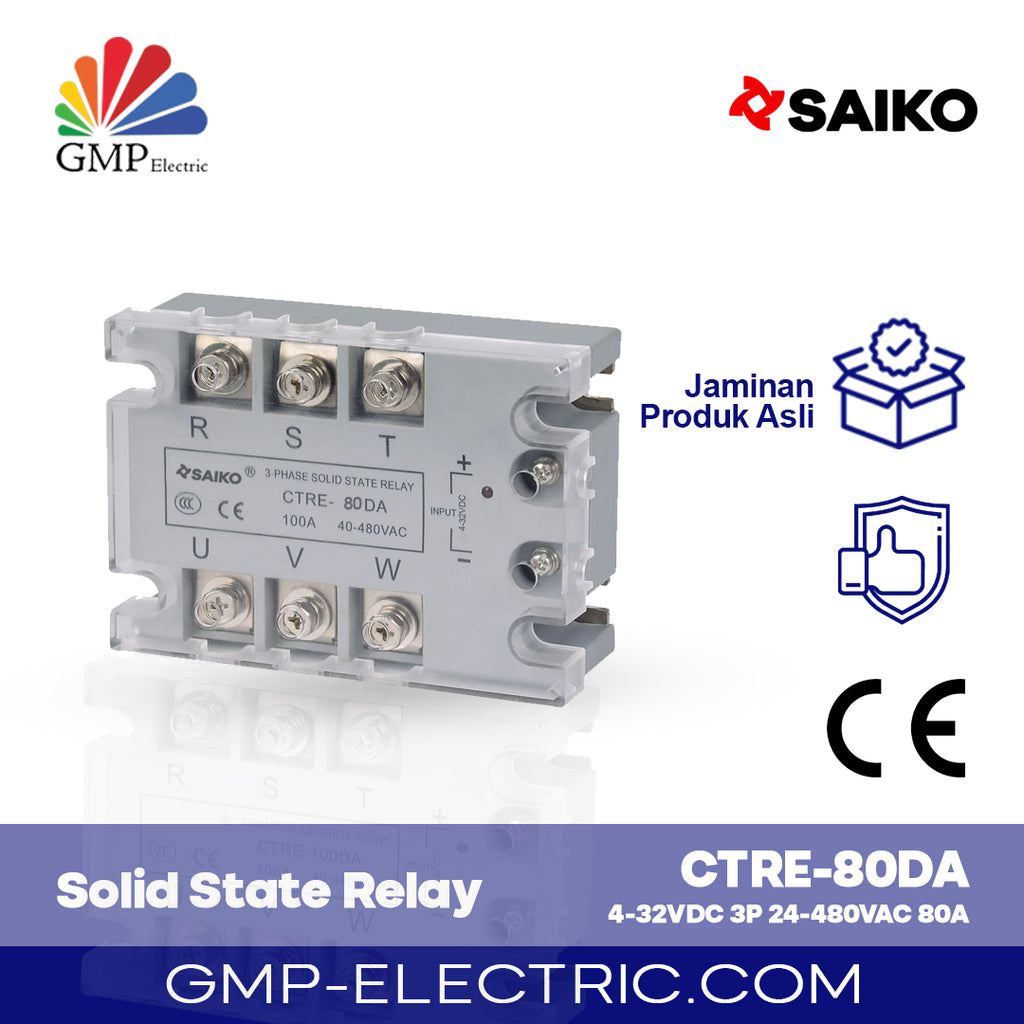

Solid State Relay Saiko ECO CTRE-80DA 4-32VDC 3P 24-480VAC 80A

Current:0.5A~400A

Voltage:12V~680V

General Install Size

Vacuum Weld Techinics

Led indicator showing “ON” or “OFF”

Protect Panel

IEC standard

Input & output type could chose DC/AC AC/AC DC/DC

Overview

Solid State Relay(CSR) is industrial control appliances which use power semiconductor devices for main control part,compare with traditional magnetic contact industrial controllers, it is more high-powered, intelligent, digital, systematic and green development.

according switch mode CSR have zero-cross and random type. When the input control signal, random type conduction immediately, zero cross type need load voltage turn to zero region just can conduction. Revocation of the control signal,all can cut off when less than maintenance current. zero cross type may cause the maximum half-cycle delay, but reduces the impact of the load and radiofrequency interference, is the ideal switching devices.Random type fast response,suitable for dimmer,thermostats resistive loads and some inductive load applications.

When the CSR turn off, if in the phase current and voltage have different, will have a large rise rate (dv/dt) on the triac, such as dv/dt higher than Triac standatrd (300V/us), will result in delay shutdown even failure. use anti-parallel thyristor's CSR(powerful type) will been greatly improved at dv/dt(dv / dt is 500V/us). Therefore, in the field of capacitive load or inductive load, suggest the use powerful type CSR. CNTD's CSR are all powerful type.

Solid-state voltage regulator consists of thyristor switching circuit, resistance-capacitance phase shifting circuit,lag circuit and over-voltage absorption circuit.The use of only one external potentiometer can be used to achieve AC power regulation.In many occasions can replace the heavy contact voltage lighting power supply,voltage,temperature,brightness, speed and other analog adjustment.

AC DC switch & Temp control                          Automate Control

CNC machinery                                    Packaging machinery

Textile machinery                                   Glass machinery

Plastic machinery

RC: Built-in resistance capacity absorption circuit.  MOV: External shunt metal oxide varistor.
