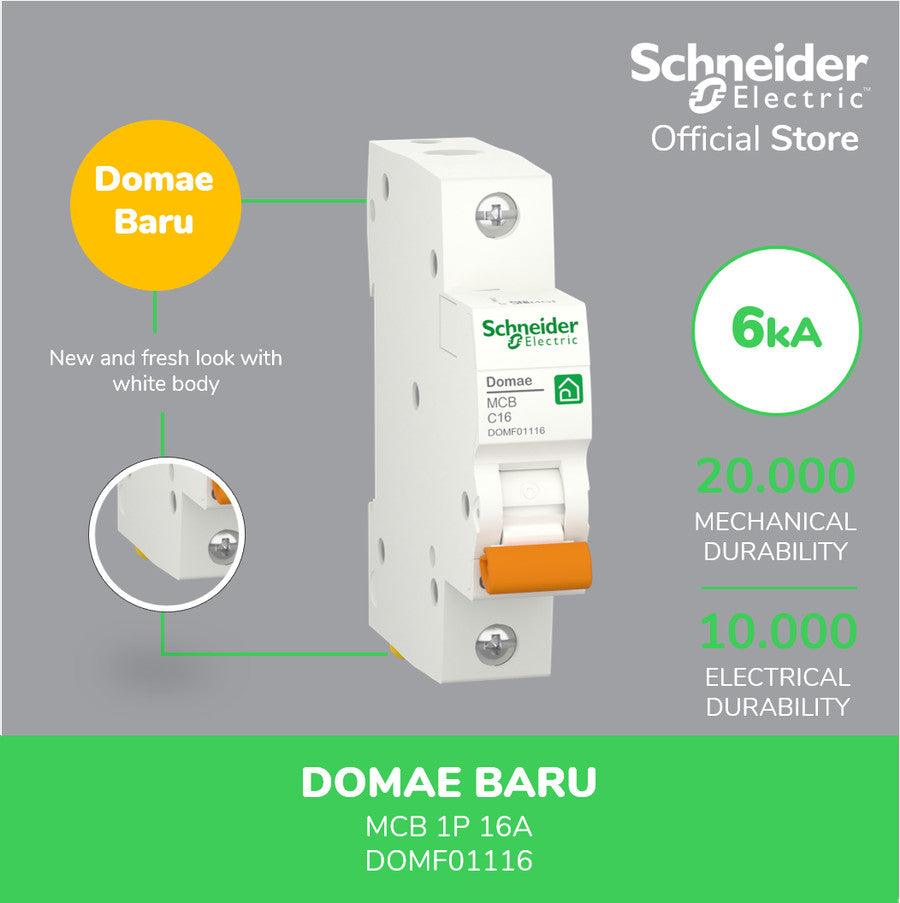

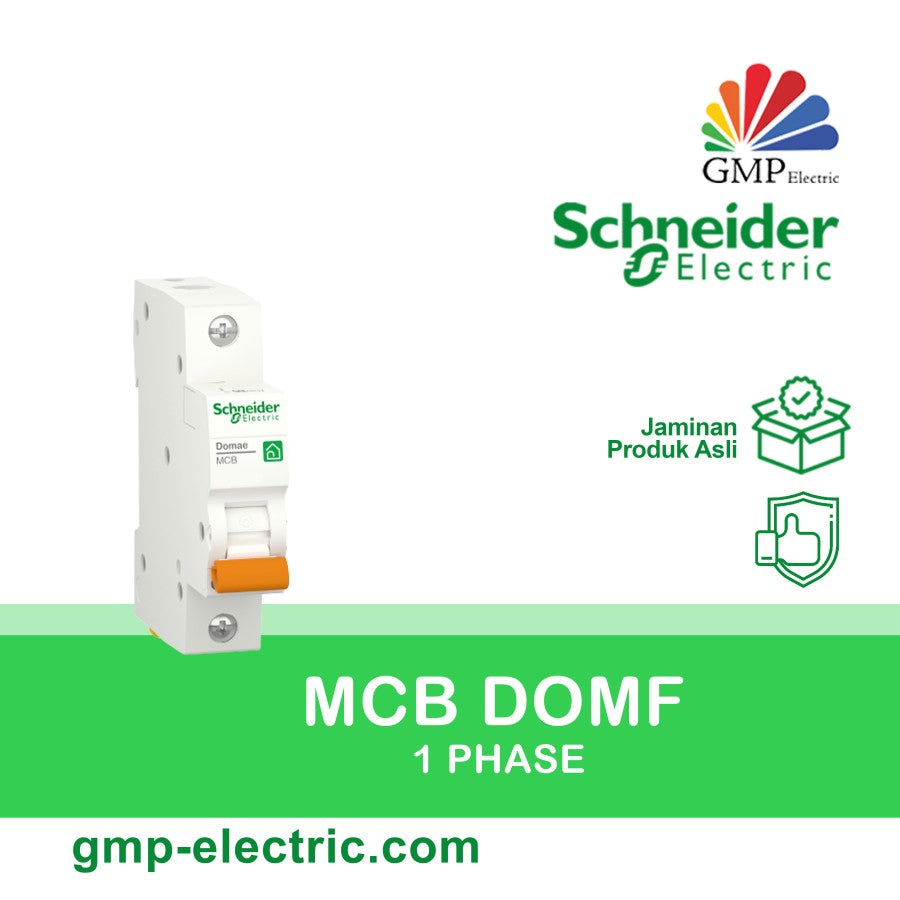

MCB Schneider Domae 1P 16A White DOMF01160

SchneiderSKU: 0016319

Share this product

Complementary
network frequency	50/60 Hz
[Ue] rated operational voltage	230 V AC 50/60 Hz
magnetic tripping limit	5...10 x In
control type	Toggle
mounting mode	Clip-on
mounting support	DIN rail
comb busbar and distribution block compatibility	YES
9 mm pitches	2
height	81 mm
width	18 mm
depth	71.5 mm
net weight	0.095 kg
colour	White
mechanical durability	20000 cycles
electrical durability	10000 cycles
connections - terminals	Tunnel type terminals (top or bottom) - 1...25 mm�� - rigid Tunnel type terminals (top or bottom) - 1...16 mm�� - flexible
wire stripping length	14 mm for top or bottom connection
tightening torque	2 N.m top or bottom
earth-leakage protection	Without

Environment
standards	IEC 60898-1
product certifications	SNI
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
overvoltage category	III
tropicalisation	2 conforming to IEC 60068-1
relative humidity	95 % at 55 ��C
ambient air temperature for operation	-5��60 ��C
ambient air temperature for storage	-40��85 ��C
