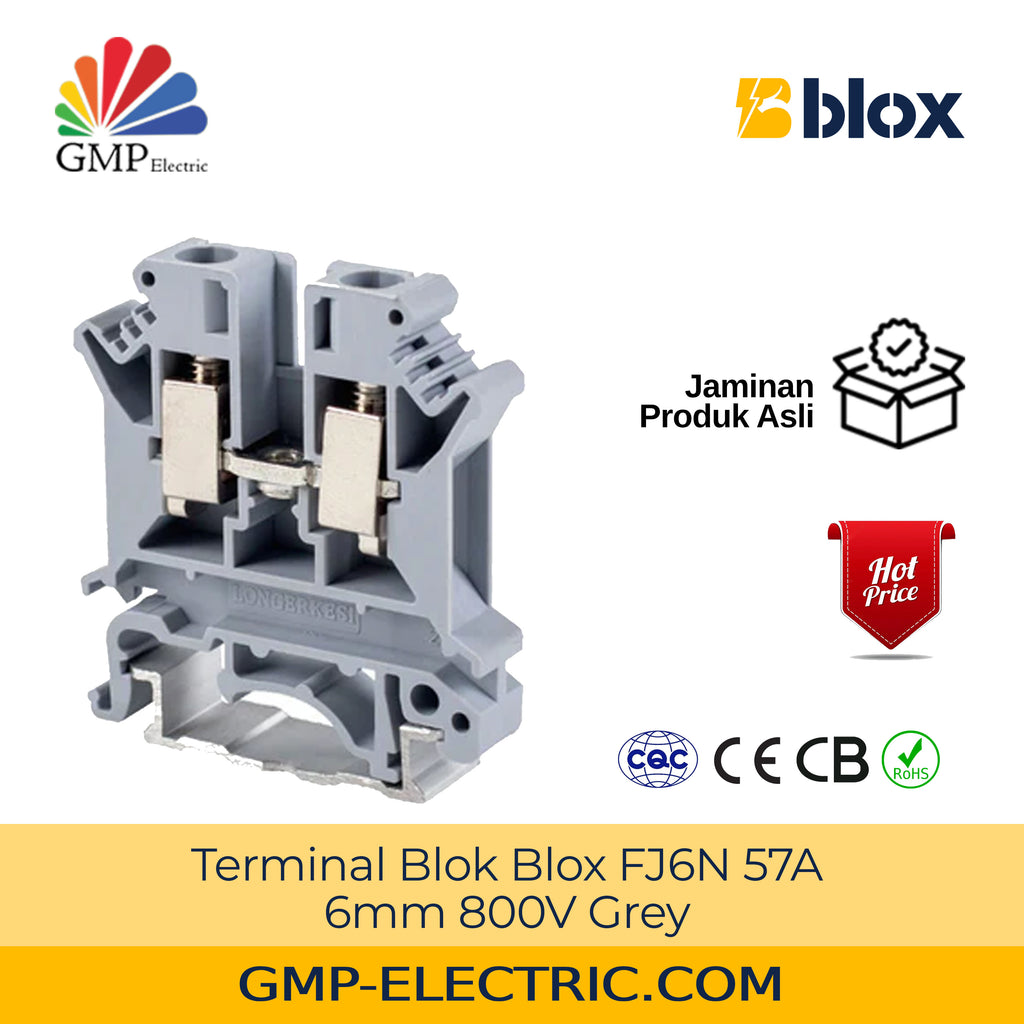

🔹 Sertifikasi: CB / CE / CQC / RoHS
🔹 Dimensi: 8.2 x 42.5 x 47 mm
🔹 Material:
-
Screw: M4, Zinc-Coated Steel
-
Pressure Frame: Nickel-Coated Brass
-
Conductor: Nickel-Coated Brass
-
Housing: PA66/V-0 (Tahan Panas & Api)
📌 Data Listrik:
✅ Standar: IEC 60947-7-1, UL 1059
✅ Tegangan Maksimum: 800V (IEC) / 600V (UL)
✅ Arus Maksimum: 57A (IEC) / 30A (UL)
📌 Data Pengkabelan:
✔️ Strip Length: 10 mm
✔️ Kabel Fleksibel: 0.2 ~ 6 mm²
✔️ Kabel Rigid: 0.2 ~ 10 mm²
✔️ Imperial Wire: AWG 24 ~ 8
✔️ Torsi Pengencangan: 1.5 ~ 1.8 Nm
📦 Packing:
-
Isi per Box: 40 pcs
-
Isi per Karton: 2400 pcs
🛠 Aksesori:
✔️ End Plate: Model D-FJ4/10, Tebal 1.8mm (100 pcs/bag)
✔️ Fixed Bridge: Model FBI10-8, Arus Maks 57A (20 pcs/bag)
✔️ Insertion Bridge: Model EB10-8, Arus Maks 57A (10 pcs/bag)
✔️ Small Partition & Partition Plate: TS-K (200 pcs/bag), ATP-FJ (100 pcs/bag)
✔️ Marking Tag: ZB8 (100 pcs/bag)
⚡ Aplikasi:
🔹 Panel listrik industri
🔹 Sistem distribusi daya
🔹 Rangkaian kontrol dan otomasi
