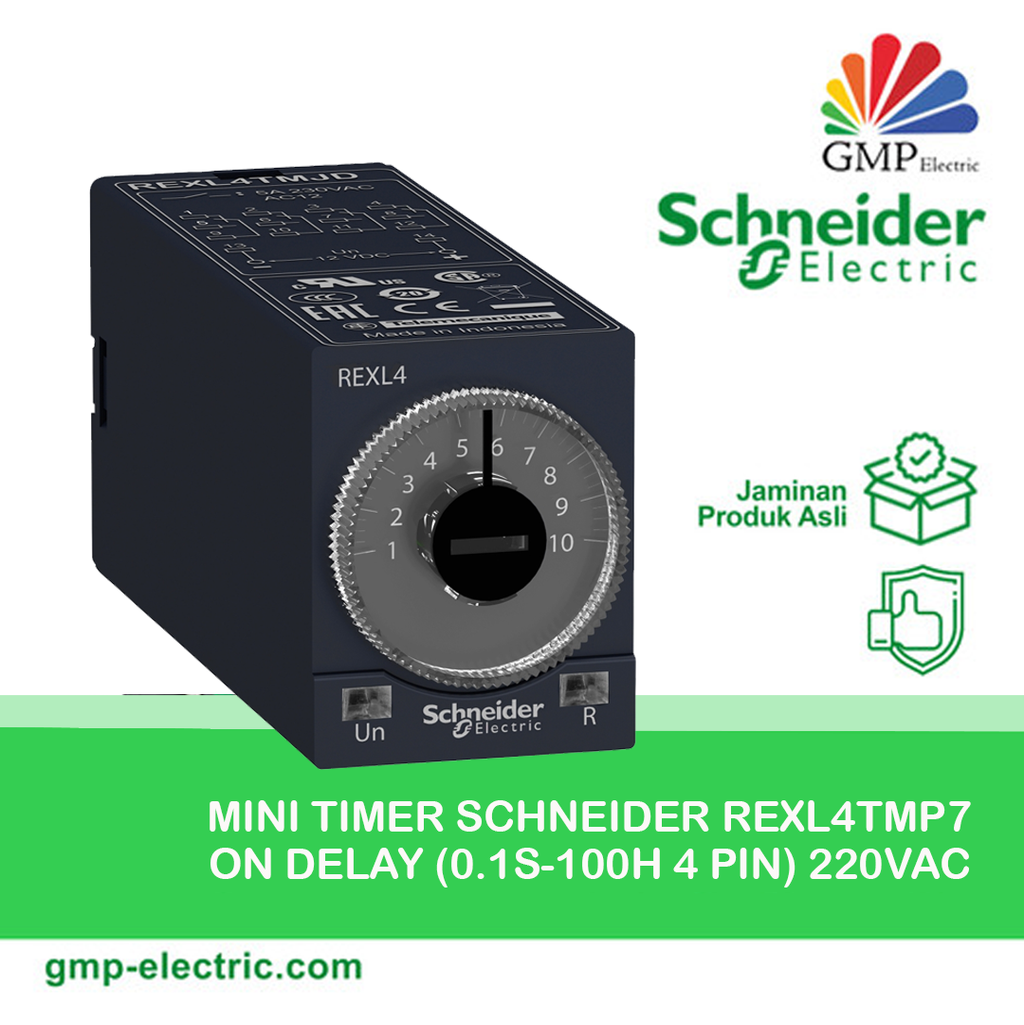

Mini Timer Schneider REXL4TMP7 On Delay (0.1s-100h 4 Pin) 220VAC

Roll over image to zoom in

Mini Timer Schneider REXL4TMP7 On Delay (0.1s-100h 4 Pin) 220VAC

Name: Mini Timer Schneider REXL4TMP7 On Delay (0.1s-100h 4 Pin) 220VAC
Brand: Schneider
SKU: 0006990
Price: 267800.0 IDR
Availability: InStock

Save 43%

SchneiderSKU: 0006990

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Range of product	Harmony Timer Relays
Fixing mode	Plug-in (socket)
Product or component type	Miniature timing relay
Discrete output type	Relay
Contacts type and composition	4 C/O
Component name	REXL
time delay type	Power on-delay
time delay range	6...60 s 1...10 s 6...60 min 1...10 min 0.1...1 s 10...100 h 1...10 h
Width	21 mm

Complementary
Contacts material	Cadmium free
[Us] rated supply voltage	230 V AC 50/60 Hz
Voltage range	0.85...1.15 Us
[In] rated current	5 A AC
Repeat accuracy	+/- 0.5 %
Setting accuracy of time delay	10 % at full scale at 25 °C conforming to IEC 61812-1
Temperature drift	0.05 %/°C
maximum reset time	250 ms after time delay, on de-energisation 50 ms during time delay, on de-energisation
Voltage drift	+/- 0.2 %/V
Maximum switching capacity	4 x 5 A
maximum temporary permissible current	10 A for < 10 s
Minimum switching current	100 mA
Electrical durability	100000 cycles at 250 V AC resistive
Mechanical durability	10000000 cycles
maximum power consumption	3 VA
[Ui] rated insulation voltage	250 V conforming to IEC 255 Group C 250 V conforming to VDE 0010
Output overvoltage protection	2 J
Surge withstand	2 kV conforming to IEC 61000-4-5 level 3
Creepage distance	4 kV/3 conforming to IEC 60664-1
Local signalling	1 LED (red) for output in operation 1 LED (yellow) for power ON
Function available	A- Power on-delay relay-4 C/O
Control type	Without test button
Shape of pin	Flat
Number of functions	1
Net weight	0.05 kg
