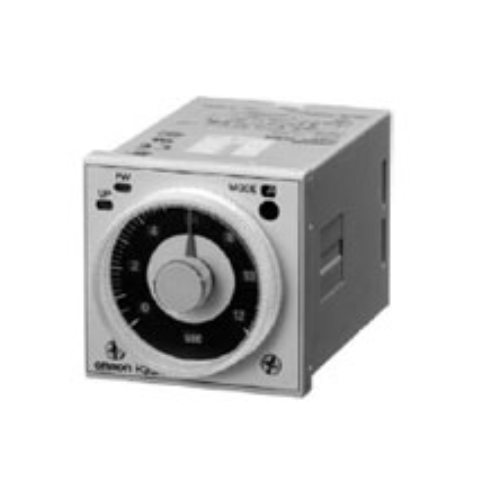

Solid-state Multi-functional Timer Omron
Type : H3BA-N
Operating Voltage : 100 to 240VAC (50/60 Hz) / 100 to 125 VDC

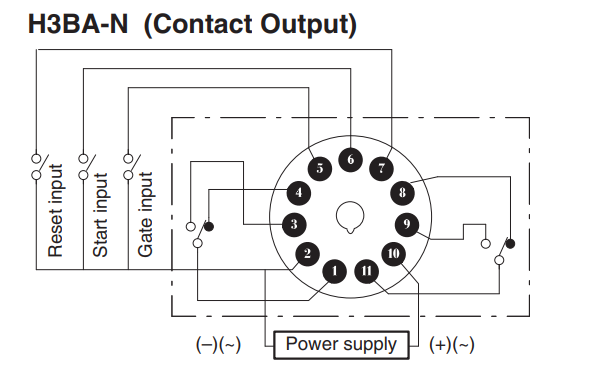

Number of Pin : 11Pin
Output : Relay Output (SPDT) 5A at 250VAC

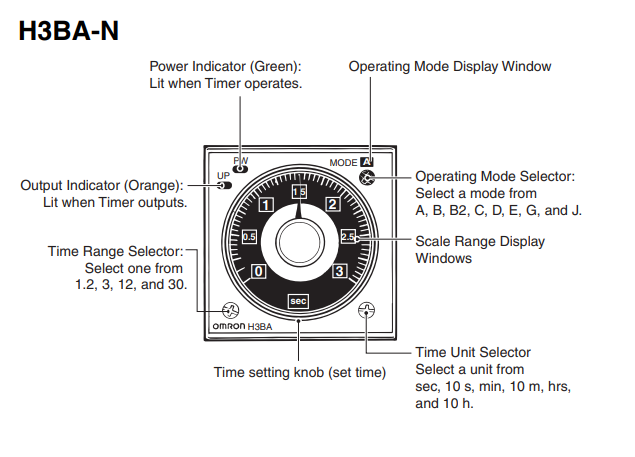

Operating Mode : A : On Delay
B: Flicker OFF Start
B2 : Flicker On Start
C : Signal ON/OFF-delay
D : Signal OFF-delay
E : Interval
G : Signal ON/OFF-delay
J : One-Shot
Time Range : 0.05s to 300h
Time Ranges
| Time unit |
sec |
× 10 s |
min |
× 10 m |
hrs |
× 10 h |
| Full scale setting |
| 1.2 |
Set time |
0.05 to 1.2 |
1.2 to 12 |
0.12 to 1.2 |
1.2 to 12 |
0.12 to 1.2 |
1.2 to 12 |
| 3 |
0.3 to 3 |
3 to 30 |
0.3 to 3 |
3 to 30 |
0.3 to 3 |
3 to 30 |
| 12 |
1.2 to 12 |
12 to 120 |
1.2 to 12 |
12 to 120 |
1.2 to 12 |
12 to 120 |
| 30 |
3 to 30 |
30 to 300 |
3 to 30 |
30 to 300 |
3 to 30 |
30 to 300 |
Socket : PF11A-E
PF115A
