Description
-
Characteristics

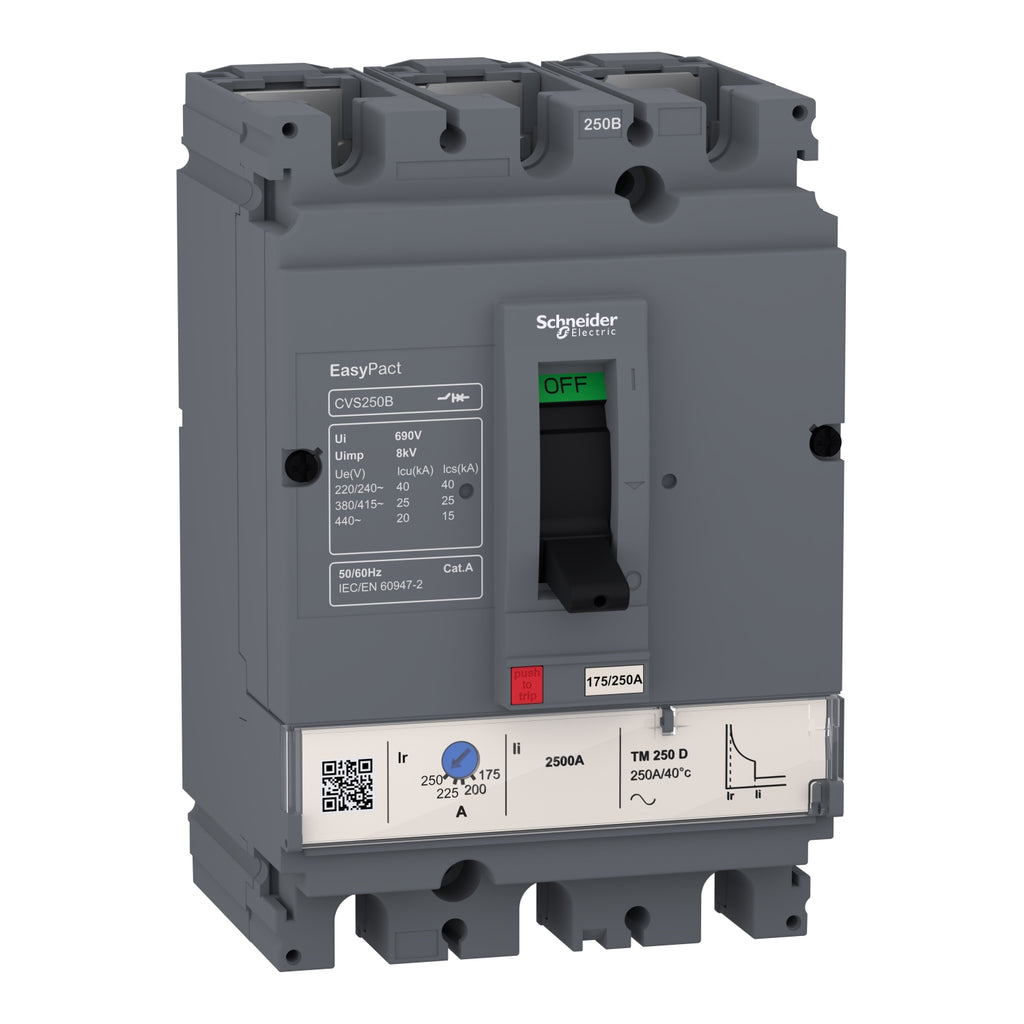

Main range of product Easypact CVS100...250product or component type Circuit breakerdevice short name CVS100Bdevice application Distributionpoles description 4Pprotected poles description 3dneutral position LeftEarth leakage protection (Vigi add on) Without[In] rated current 100 A at 40 °Cbreaking capacity code Bnetwork type AC[Icu] Breaking capacity 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2utilisation category Category Atrip unit name TM-Dtrip unit technology Thermal-magnetictrip unit rating 100 A at 40 °Cprotection type Overload protection (thermal)
Short-circuit protection (magnetic)Complementary network frequency 50/60 Hzcontrol type Togglemounting mode Fixedmounting support Backplateupside connection Frontdownside connection Frontconnections - terminals Screw connection[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2thermal protection adjustment range 70…100 A[Ics] rated service breaking capacity 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2mechanical durability 30000 cycleselectrical durability 12000 cycles 415 V In conforming to IEC 60947-2connection pitch 35 mmcontact position indicator Yesneutral protection setting No protection (3d)long time pick-up adjustment type Ir Adjustablelong time pick-up adjustment range 0.7...1 x Inlong time delay adjustment type Fixedinstantaneous pick-up adjustment type Ii Fixedinstantaneous pick-up adjustment range 800 Aheight 161 mmwidth 140 mmdepth 86 mmnet weight 2.2 kgEnvironment electrical shock protection class Class IIstandards EN 60947-2
IEC 60947-2product certifications GOST
IECIP degree of protection IP40pollution degree 3 conforming to IEC 60664-1ambient air temperature for operation -25…70 °Cambient air temperature for storage -50…85 °CPacking Units Unit Type of Package 1 PCENumber of Units in Package 1 1Package 1 Weight 2.17 kgPackage 1 Height 13.6 cmPackage 1 width 15 cmPackage 1 Length 19.2 cmUnit Type of Package 2 BB1Number of Units in Package 2 1Package 2 Weight 4 kgPackage 2 Height 15.8 cmPackage 2 width 9 cmPackage 2 Length 13.8 cmUnit Type of Package 3 S04Number of Units in Package 3 9Package 3 Weight 20.296 kgPackage 3 Height 30 cmPackage 3 width 40 cmPackage 3 Length 60 cmOffer Sustainability Sustainable offer status Green Premium productREACh Regulation EU RoHS Directive Compliant
EU RoHS DeclarationMercury free YesRoHS exemption information China RoHS Regulation China RoHS declaration
Product out of China RoHS scope. Substance declaration for your informationEnvironmental Disclosure Circularity Profile WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish binsContractual warranty Warranty 18 months
