SPESIFIKASI PRODUK
-

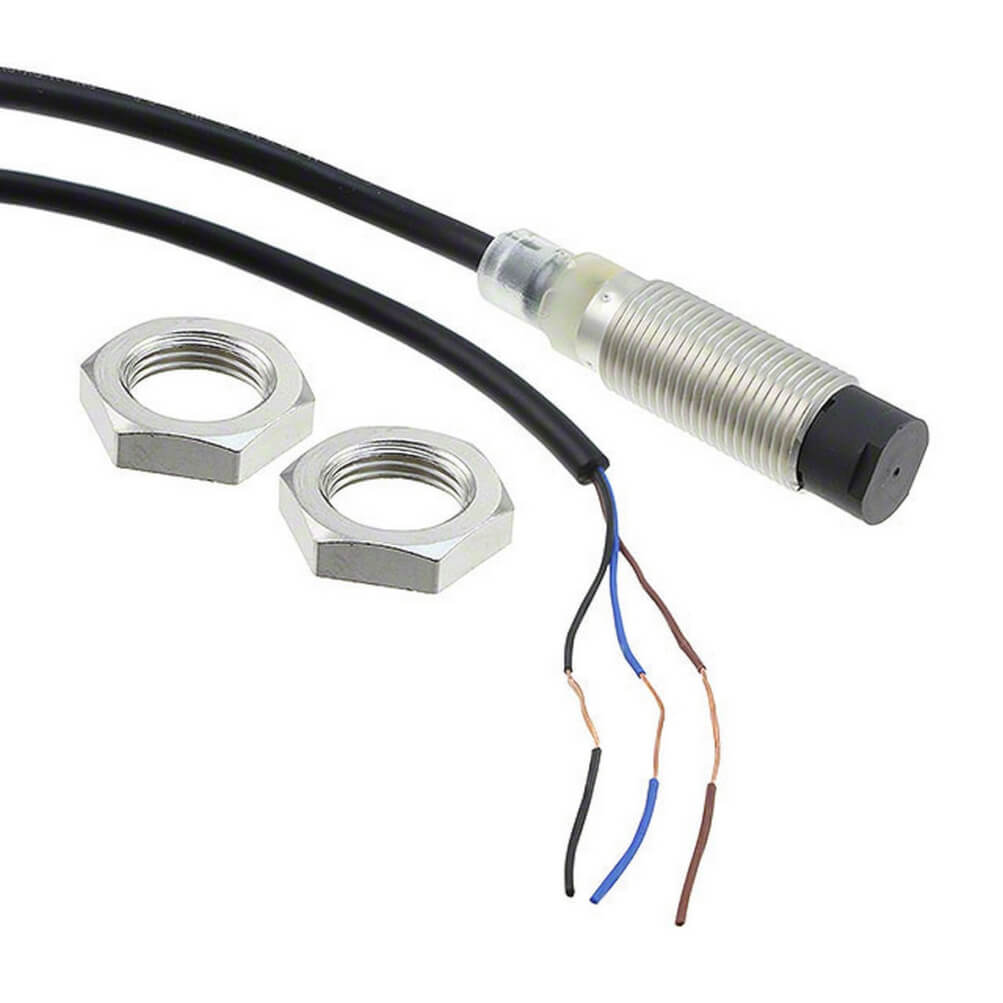

Brand: OMRON
-
Model: E2B-M12KN08-WP-C1
-
Series: E2B
-
Type: Inductive Proximity Sensor / Proximity Switch
-
Size: M12
-
Body: Short Body
-
Mounting Type: Unshielded / Non-flush
-
Sensing Distance: 8 mm
-
Output: NPN
-
Operation Mode: NO (Normally Open)
-
Connection: Pre-wired Cable
-
Konfigurasi: DC 3-Wire
-
Supply Voltage: 10–30VDC
-
Housing Material: Brass, Nickel Plated
-
Cable: PVC
-
Cable Length: 2 meter untuk varian 2M
-
Overall Length: ±47 mm
-
Thread Length: ±23 mm
-
Protection: IP67
-
Operating Temperature: -25°C sampai +70°C
-
Response Frequency: hingga 1.000 Hz
-
Indicator: LED
KEUNGGULAN
✓ Brand Omron Terpercaya
✓ Proximity Sensor ukuran M12
✓ Sensing distance 8 mm
✓ Tipe Unshielded / Non-flush
✓ Output NPN NO
✓ Supply 10–30VDC
✓ Konfigurasi 3 Wire Pre-wired
✓ Kabel PVC pre-wired
✓ Housing brass nickel-plated
✓ Proteksi IP67
✓ Response frequency hingga 1.000 Hz
BERAT PRODUK
Perkiraan ±65 gram/unit
