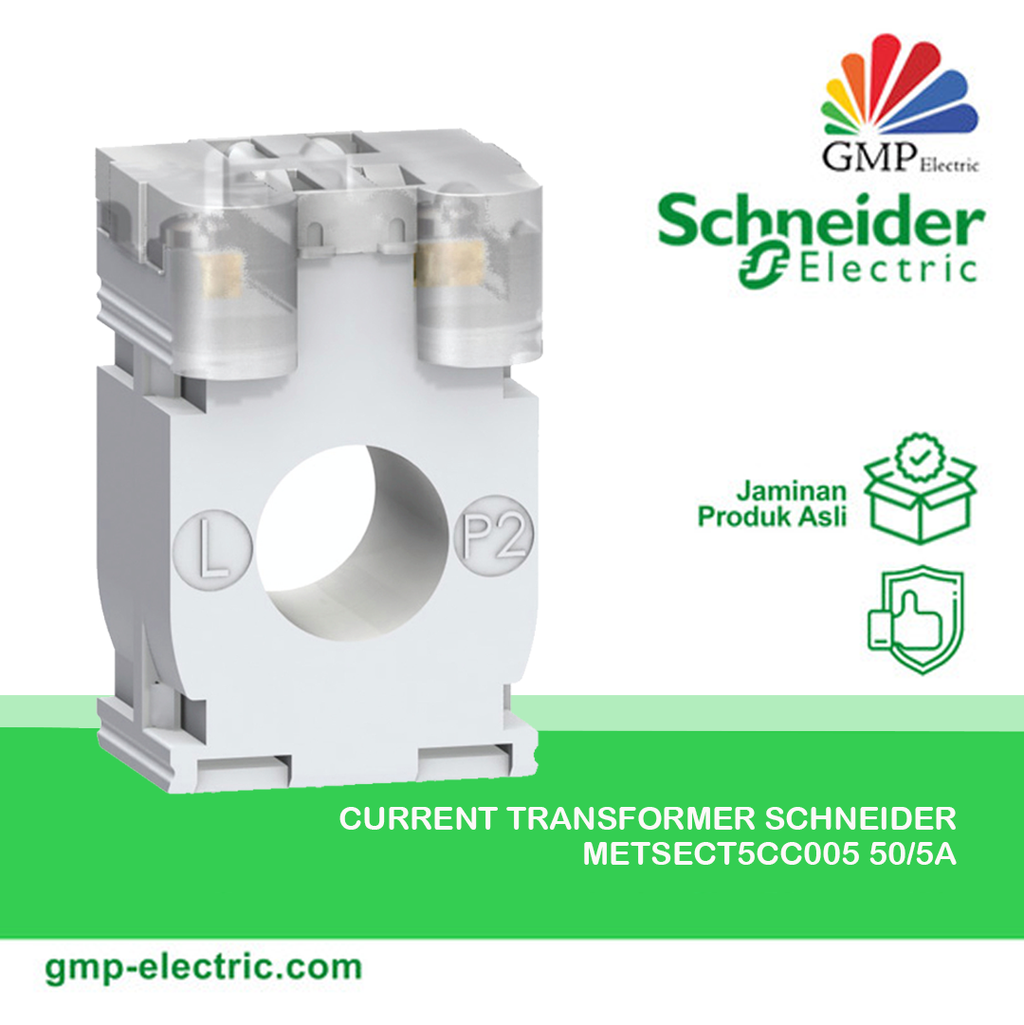

Current Transformer Schneider METSECT5CC005 50/5A

Roll over image to zoom in

Current Transformer Schneider METSECT5CC005 50/5A

Name: Current Transformer Schneider METSECT5CC005 50/5A
Brand: Schneider
SKU: 0005430
Price: 288100.0 IDR
Availability: OutOfStock

Save 42%

SchneiderSKU: 0005430

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Range	PowerLogic
Product name	CT
Product or component type	Current transformer
Secondary current	5 A
Accuracy class	Class 1 at 1.25 VA Class 3 at 1.5 VA
[In] rated current	50 A

Complementary
current transformer type	Tropicalised for cable
current transformer ratio	50/5
[Ith] conventional free air thermal current	3 kA
dynamic withstand current	2.5 Ith
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
[Ui] rated insulation voltage	3 kV
Mounting mode	Clip-on By screws
mounting support	Mounting plate DIN rail
Width	44 mm outside:
Height	65 mm outside:
Depth	30 mm frame: 37 mm total:
Diameter	21 mm
Net weight	0.19 kg
[Uimp] rated impulse withstand voltage	3 kV
Electrical insulation class	Class B
Cable outer diameter	21 mm
Sealing	With

Environment
standards	VDE 0414 IEC 61869-2
product certifications	CE
IP degree of protection	IP20
Relative humidity	0…95 %
Ambient air temperature for operation	-25…60 °C
