Description
Articlenr. R1.200.1102.0

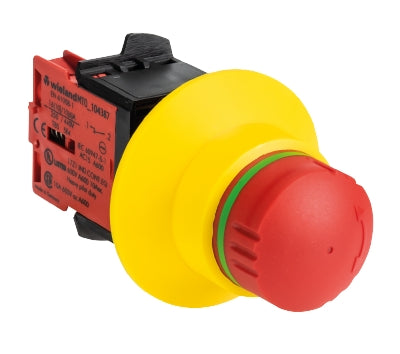

E-Stop button (SNH 0100, 1 NC (contact-break-detection))
Commercial data
| Article number | R1.200.1102.0 |
|---|---|
| Article description | Emergency stop complete SNH 1102 |
| EAN | 4049088044373 |
| Order Unit | 1 piece(s) |
| Country of origin | DE |
| Customs tariff number | 85365080 |
Dimensions
| Length packed | 100 mm |
|---|---|
| Width packed | 100 mm |
| Height packed | 60 mm |
| Gross weight packed | 68.4 g |
| Net weight single part | 64.91 g |
| Volume packed | 600 ccm |
| Certificates / Approvals |  |
 |
| Build in depth | 62 mm |
|---|
| ECLASS 11 | |
|---|---|
| ECLASS 8.1 | 27371244 |
| ETIM 7.0 | EC002034 |
| ETIM 6.0 | EC002034 |
| ETIM 5.0 | EC002034 |
| ETIM 4.0 | EC002034 |
| ETIM 3.0 | EC002034 |
| Hole diameter | 22.3 mm |
|---|---|
| Rated insulation voltage Ui | 600 V |
| Unlocking method | Turn unlatching mechanism |
| Housing material | Plastic |
| Surface finish | AgNi |
| With lighting | No |
| Utility category | 3 A (AC-15 at 250V AC) / 10 A (DC-13 at 24V DC) |
| Max. conductor cross section | 2.5 mm² |
| Degree of protection (IP) | IP65 |
| Connection type auxiliary circuit | screw connection |
| Connection type conductor | screw connection |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 0 |
| Min. switching voltage | 5 V |
| Min. ambient temperature | -30 °C |
| Max. ambient temperature | 70 °C |
| Switching principle contact elements | Slow action switch |
| Min. switching current | 1 mA |
| B10d-Value | 250000 |
| Illumination connection | No |
| Fall-off protection |
