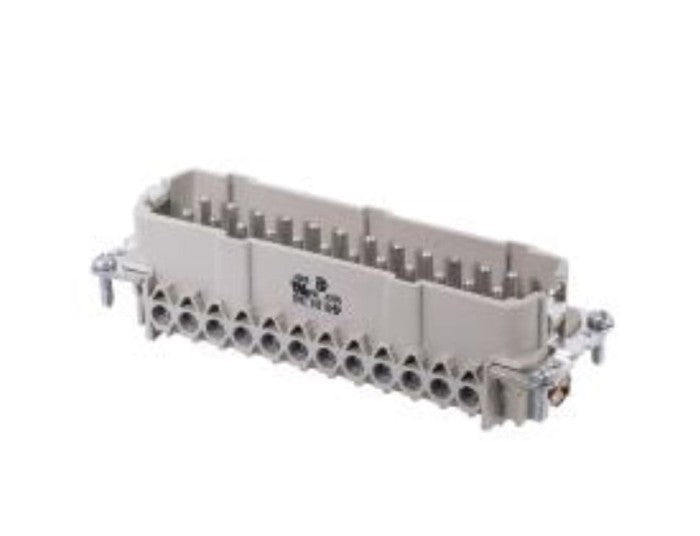

Heavy Duty Connector Insert Wieland 24P Male 16A (70.310.2440.0)

Heavy Duty Connector Wieland REVOS

Type : Revos
Art : 70.310.2440.0
Model : Insert Male
Contact Material : Copper Alloy - Tin-plated
Operating Temperature : -40 ~ 120C
Number of Connection : 24 P + E
Rated Voltage/current : 600V 16A (UL/CSA)
Wire : 0.5mm2 to 2.5mm2

Approval :
