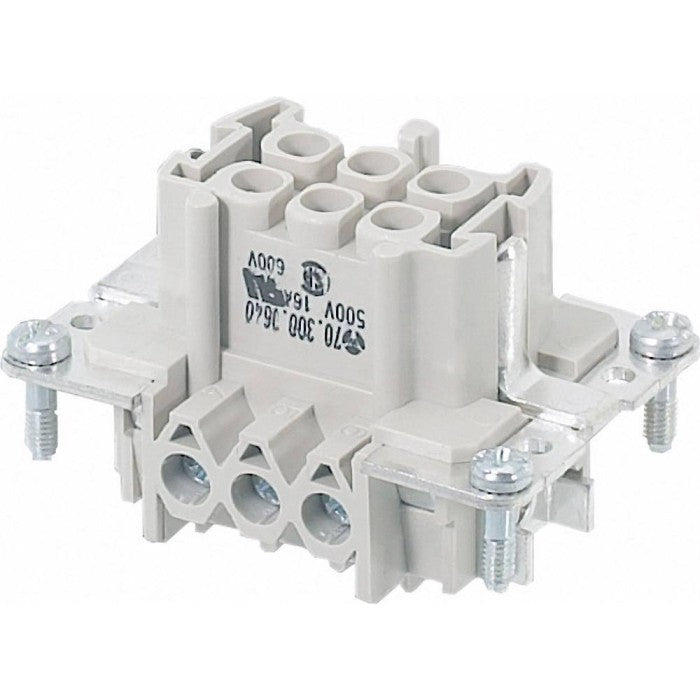

Heavy Duty Connector Insert Wieland 6P Female 16A (70.300.0640.0)

Heavy Duty Connector Wieland REVOS

Type : Revos
Art : 70.300.0640.0
Female Insert
Number of Connection : 6 P + E
Mating Cycles : 200
Pollution Degree : 3
Warna : Grey
Operating Temperature : -40 ~ 120C

Connection Type : Screw connection
Number of Poles : 6 P
Wire : 0.5mm ~ 2.5mm2
Rated Voltage : 16A 600V (UL)
                         16A 600V (CSA)
Contact Material : Copper Alloy - Tin plated
Contact Resistance : 1.5mOhm
Wire strip length : 7mm

Dimention : 73.6mm x 43mm x 51mm
Approval :
