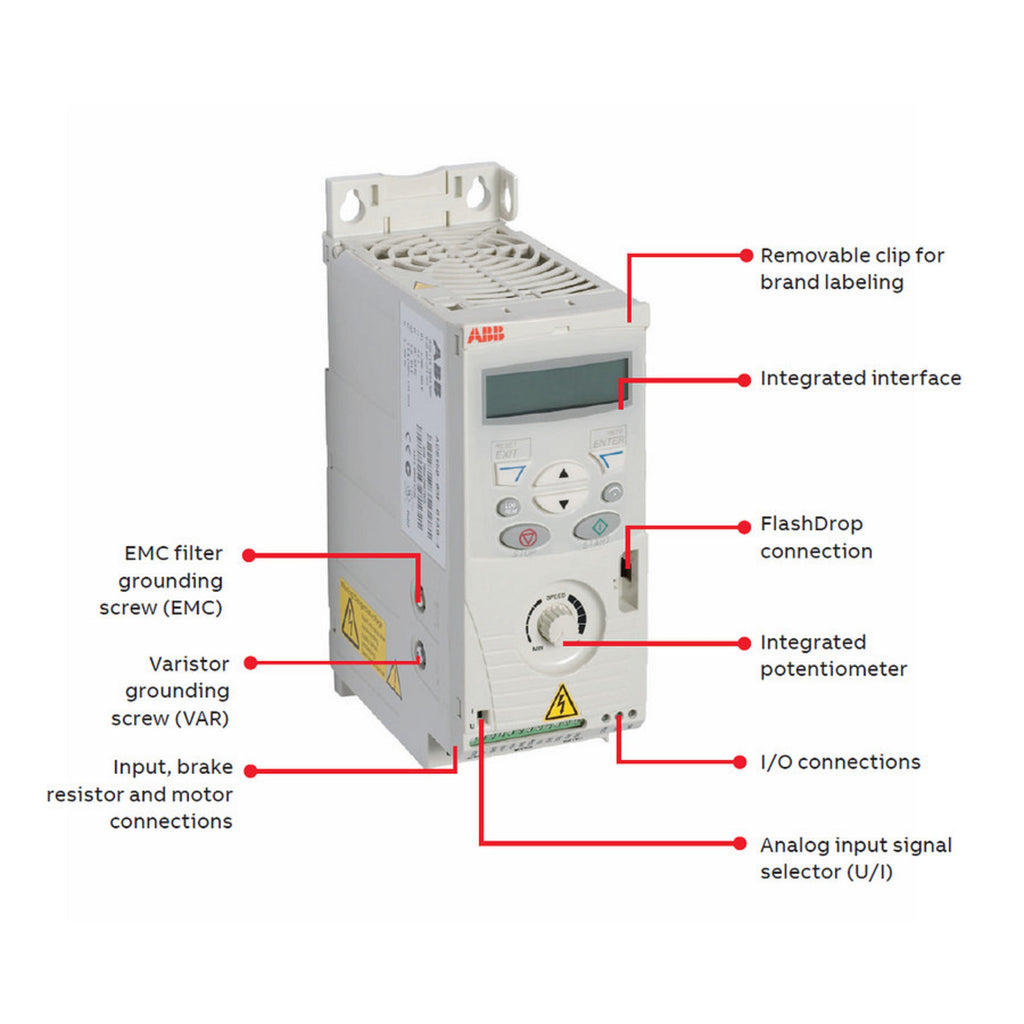

Features : - User friendly LCD control panel - Flexible Mounting alternatives : Screw or din Rail mounting , sideways or side by side - Integrated EMC Filter - Built-in Brake chopper as standard - Flash Drop Tool for faster and easier drive setup and commissioning for volume manufacturing and maintenance. Enable to upload and download Drive parameters. - PID Control - Coated Boards to protects the electronics from hazards including static discharge and airborne contaminates, including moisture.
Voltage and Power Range : 1 Phase 200 to 240VAC +/- 10% Frequency : 48 to 63Hz Ambient Temperature : -10 to 50C Degree of Protection : IP20
Braking : Built in brake chopper as standard
1 Analog input : Voltage (0(2)-10V), Current (0(4)-20mA), Potensiometer 10V +/- 1% 10KOhm. 5 Digital input : 12 to 24VDC , PNP and NPN, pulse train 0 to 16khz Input Impedence : 2.4 kohm 1 Auxilary Output : +24VDC, max 200mA 1 relay Output : NO+NC, 250VAC 5A/ 30VDC 0.5A
Dimention : 239 mm X 70 mm X 142 mm
