- Symbol : NYFGbY or CU/PVC/SFA/PVC
- Copper Low Voltage Cable

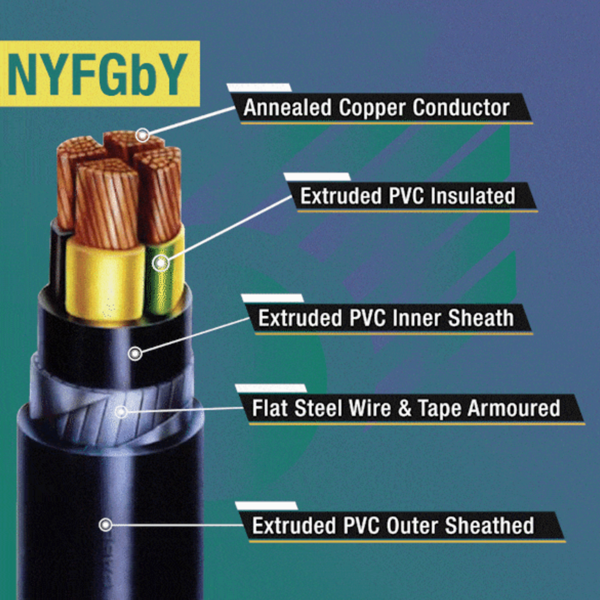

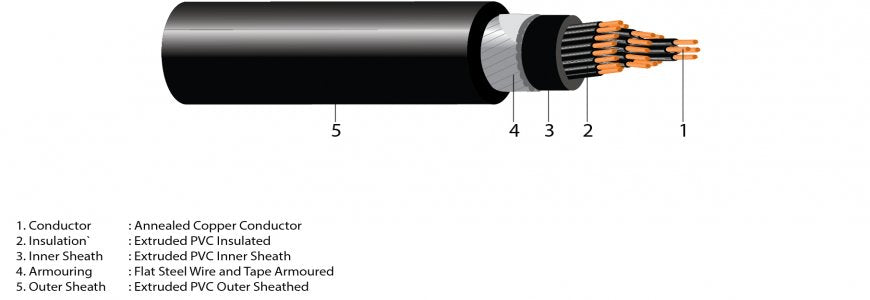

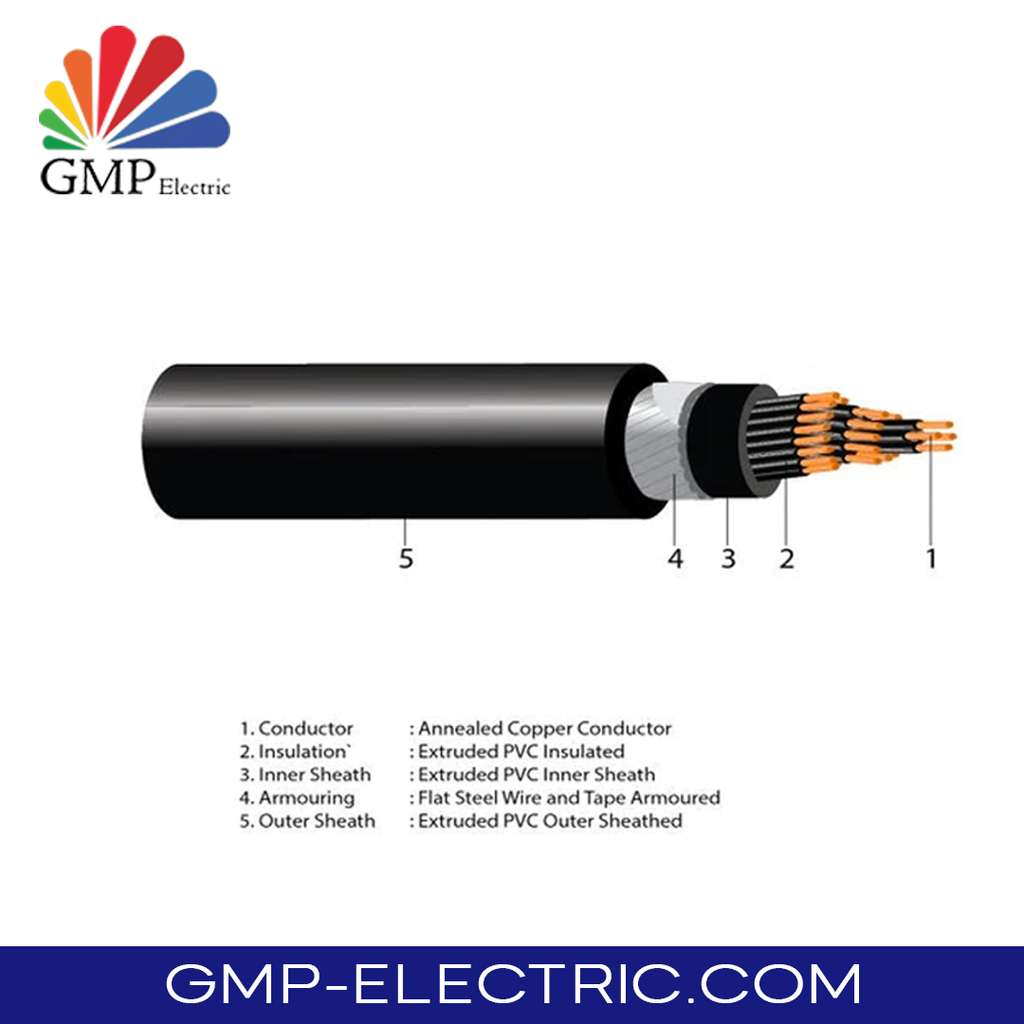

- Construction:
1. Annealed Copper Conductor
2. Extruded PVC Insulated
3. Extruded PVC Inner Sheath
4. Flat steel wire and tape armoured
5. Extruded PVC Outer Sheated
- Rated Voltage : 0.6/1 kV
- Specification :
SPLN 43-2 : 1994
SNI IEC 60502-1 2009
IEC 60502
- Application :
1. Indoor and outdoor installation direct burial
2. Preferably use where considerable mechanical stress must be envisaged
| Model Number |
NYFGBY |
| Unit |
1roll(50m) |
| Size (mm²) |
2x10 |
| Length (m) |
50 |
| Berat (Kg) |
0.8 |
