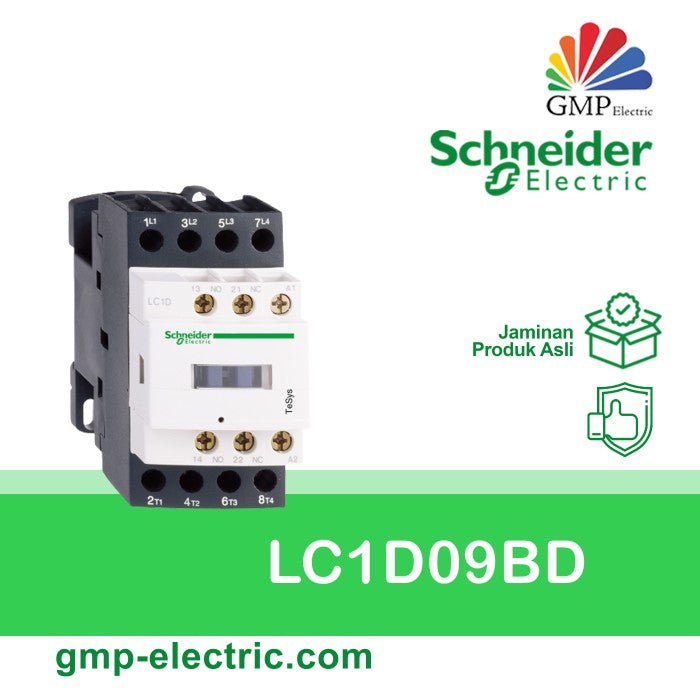

Kontaktor Schneider LC1D Series Original, LC1D09BD 24VDC. Kami adalah Authorized Industrial Dealer Schneider dan Toko Resmi Schneider di Cikarang dan Jakarta
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys D
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1D
|
|
| contactor application |
Motor control
Resistive load |
|
| utilisation category |
AC-4
AC-3 AC-1 |
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| [Ue] rated operational voltage |
Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC |
|
| [Ie] rated operational current |
9 A (at <60 ��C) at <= 440 V AC AC-3 for power circuit
25 A (at <60 ��C) at <= 440 V AC AC-1 for power circuit |
|
| motor power kW |
2.2 kW at 220...230 V AC 50/60 Hz (AC-3)
4 kW at 380...400 V AC 50/60 Hz (AC-3) 4 kW at 415...440 V AC 50/60 Hz (AC-3) 5.5 kW at 500 V AC 50/60 Hz (AC-3) 5.5 kW at 660...690 V AC 50/60 Hz (AC-3) 2.2 kW at 400 V AC 50/60 Hz (AC-4) |
|
| motor power HP (UL / CSA) |
1 hp at 230/240 V AC 50/60 Hz for 1 phase motors
2 hp at 200/208 V AC 50/60 Hz for 3 phases motors 2 hp at 230/240 V AC 50/60 Hz for 3 phases motors 5 hp at 460/480 V AC 50/60 Hz for 3 phases motors 7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors 0.33 hp at 115 V AC 50/60 Hz for 1 phase motors |
|
| control circuit type |
AC at 50/60 Hz
|
|
| [Uc] control circuit voltage |
220 V AC 50/60 Hz
|
|
| auxiliary contact composition |
1 NO + 1 NC
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947
|
|
| overvoltage category |
III
|
|
| [Ith] conventional free air thermal current |
25 A (at 60 ��C) for power circuit
10 A (at 60 ��C) for signalling circuit |
|
| Irms rated making capacity |
250 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
|
| rated breaking capacity |
250 A at 440 V for power circuit conforming to IEC 60947
|
|
| [Icw] rated short-time withstand current |
105 A 40 ��C - 10 s for power circuit
210 A 40 ��C - 1 s for power circuit 30 A 40 ��C - 10 min for power circuit 61 A 40 ��C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit |
|
| associated fuse rating |
10 A gG for signalling circuit conforming to IEC 60947-5-1
25 A gG at <= 690 V coordination type 1 for power circuit 20 A gG at <= 690 V coordination type 2 for power circuit |
|
| average impedance |
2.5 mOhm - Ith 25 A 50 Hz for power circuit
|
|
| [Ui] rated insulation voltage |
Power circuit: 690 V conforming to IEC 60947-4-1
Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified |
|
| electrical durability |
0.6 Mcycles 25 A AC-1 at Ue <= 440 V
2 Mcycles 9 A AC-3 at Ue <= 440 V |
|
| power dissipation per pole |
1.56 W AC-1
0.2 W AC-3 |
|
| Front cover |
With
|
|
| mounting support |
Plate
Rail |
|
| standards |
CSA C22.2 No 14
EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
|
| product certifications |
BV
LROS (Lloyds register of shipping) UL GOST GL DNV CSA RINA CCC |
|
| connections - terminals |
Power circuit: screw clamp terminals 1 cable(s) 1���4 mm��flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 1���4 mm��flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1���4 mm��flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1���2.5 mm��flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1���4 mm��solid without cable end Power circuit: screw clamp terminals 2 cable(s) 1���4 mm��solid without cable end Control circuit: screw clamp terminals 1 cable(s) 1���4 mm��flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1���4 mm��flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1���4 mm��flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1���2.5 mm��flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1���4 mm��solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1���4 mm��solid without cable end |
|
| tightening torque |
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat �� 6 mm
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat �� 6 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
|
| operating time |
12...22 ms closing
4...19 ms opening |
|
| safety reliability level |
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
|
| mechanical durability |
15 Mcycles
|
|
| maximum operating rate |
3600 cyc/h 60 ��C
|
| coil technology |
Without built-in suppressor module
|
|
|---|---|---|
| control circuit voltage limits |
0.3...0.6 Uc (-40���70 ��C):drop-out AC 50/60 Hz
0.8...1.1 Uc (-40���60 ��C):operational AC 50 Hz 0.85...1.1 Uc (-40���60 ��C):operational AC 60 Hz 1...1.1 Uc (60���70 ��C):operational AC 50/60 Hz |
|
| inrush power in VA |
70 VA 60 Hz cos phi 0.75 (at 20 ��C)
70 VA 50 Hz cos phi 0.75 (at 20 ��C) |
|
| hold-in power consumption in VA |
7.5 VA 60 Hz cos phi 0.3 (at 20 ��C)
7 VA 50 Hz cos phi 0.3 (at 20 ��C) |
|
| heat dissipation |
2���3 W at 50/60 Hz
|
|
| auxiliary contacts type |
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1 |
|
| signalling circuit frequency |
25...400 Hz
|
|
| minimum switching current |
5 mA for signalling circuit
|
|
| minimum switching voltage |
17 V for signalling circuit
|
|
| non-overlap time |
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact |
|
| insulation resistance |
> 10 MOhm for signalling circuit
|
|
| contact compatibility |
M2
|
|
| compatibility code |
LC1D
|
|
| motor power range |
1.1���2 kW at 200���240 V 3 phases
2.2���3 kW at 380���440 V 3 phases 4���6 kW at 380���440 V 3 phases 4���6 kW at 480���500 V 3 phases |
|
| motor starter type |
Direct on-line contactor
|
|
| contactor coil voltage |
24 V DC standard
|
| IP degree of protection |
IP20 front face conforming to IEC 60529
|
|
|---|---|---|
| protective treatment |
TH conforming to IEC 60068-2-30
|
|
| pollution degree |
3
|
|
| ambient air temperature for operation |
-40���60 ��C
60���70 ��C with derating |
|
| ambient air temperature for storage |
-60���80 ��C
|
|
| operating altitude |
0...3000 m
|
|
| fire resistance |
850 ��C conforming to IEC 60695-2-1
|
|
| flame retardance |
V1 conforming to UL 94
|
|
| mechanical robustness |
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms |
|
| height |
77 mm
|
|
| width |
45 mm
|
|
| depth |
86 mm
|
