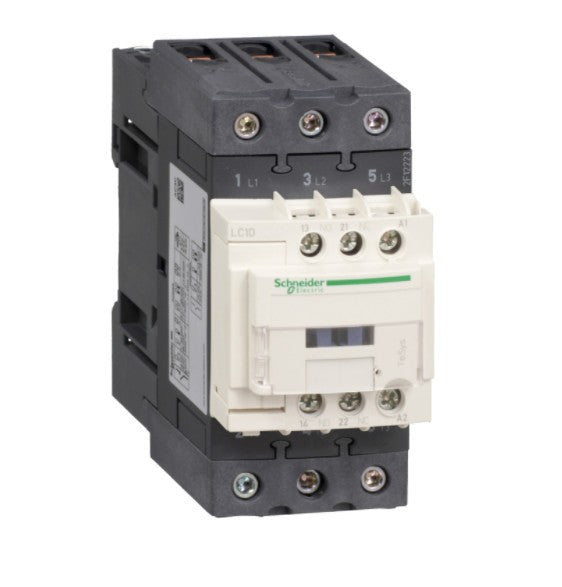

Magnetic Contactor Schneider LC1D50AM7
Type : LC1D50AM7
Voltase Coil : 220 VAC 50/60Hz
Utilisation Category : AC-3
AC-1
AC-4
Poles Description : 3P (3 NO)
Rated Opeational Voltage : Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC
Rated Operational Current : 80A ( at <60C) 440V AC AC-1
50A ( at <60C) 440V AC AC-3
Motor Power KW : 22 kW at 380..400VAC 50/60 Hz (AC-3)
15 kW at 220...230V AC 50/60 Hz (AC-3)
30 kW at 500V AC 50/60 Hz (AC-3)
33 kW at 660...690VAC 50/60 Hz (AC-3)
25kW at 415V AC 50/60 Hz (AC-3)
30 kW at 440 V AC 50/60 Hz (AC-3)
11 kW at 400 V AC 50/60 Hz (AC-4)
Motor Power HP (UL/CSA) : 3 hp at 115 V AC 50/60 Hz for 1 phase motors
7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
15 hp at 200/208 V AC 50/60 Hz for 3 phases motors
15 hp at 230/240 V AC 50/60 Hz for 3 phases motors
40 hp at 460/480 V AC 50/60 Hz for 3 phases motors
40 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Auxilary Contact : 1 NO + 1 NC
Overvoltage Category : III
Dimensi : 122 mm (height) x 55 mm (width) x 120 mm (depth)
