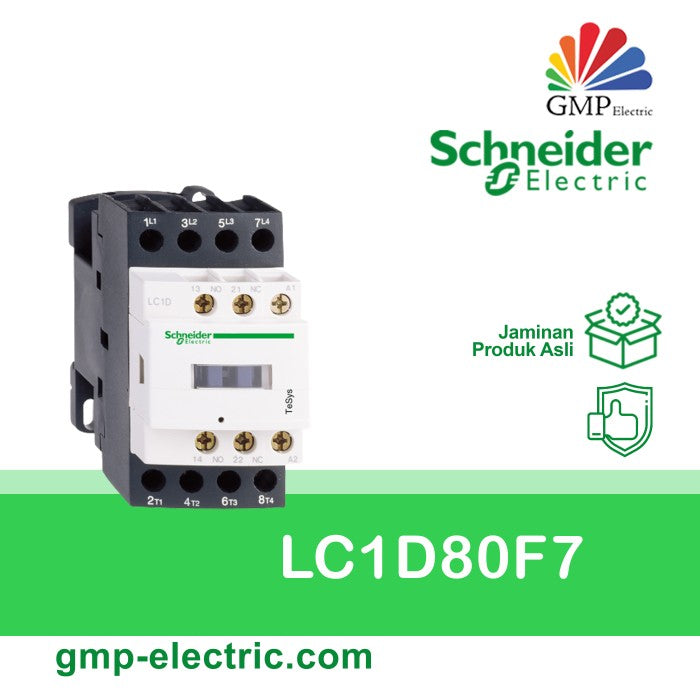

Magnetic Contactor Schneider LC1D80F7
Type : LC1D80F7
Voltase Coil : 110 VAC 50/60Hz
Utilisation Category : AC-3
AC-1
AC-4
Poles Description : 3P (3 NO)
Rated Opeational Voltage : Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC
Rated Operational Current : 125A ( at <60C) 440V AC AC-1
80A ( at <60C) 440V AC AC-3
Motor Power KW : 22 kW at 220...230 V AC 50/60 Hz (AC-3)
37 kW at 380...400 V AC 50/60 Hz (AC-3)
45 kW at 415...440 V AC 50/60 Hz (AC-3)
55 kW at 500 V AC 50/60 Hz (AC-3)
45 kW at 660...690 V AC 50/60 Hz (AC-3)
45 kW at 1000 V AC 50/60 Hz (AC-3)
15 kW at 400 V AC 50/60 Hz (AC-4)
Motor Power HP (UL/CSA) : 20 hp at 200/208 V AC 50/60 Hz for 3 phases motors
7.5 hp at 115 V AC 50/60 Hz for 1 phase motors
15 hp at 230/240 V AC 50/60 Hz for 1 phase motors
25 hp at 230/240 V AC 50/60 Hz for 3 phases motors
60 hp at 460/480 V AC 50/60 Hz for 3 phases motors
60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Auxilary Contact : 1 NO + 1 NC
Overvoltage Category : III
Dimensi : 127 mm (height) x 85 mm (width) x 130 mm (depth)
