Description
| range |
EasyPact
|
|
|---|---|---|
| product name |

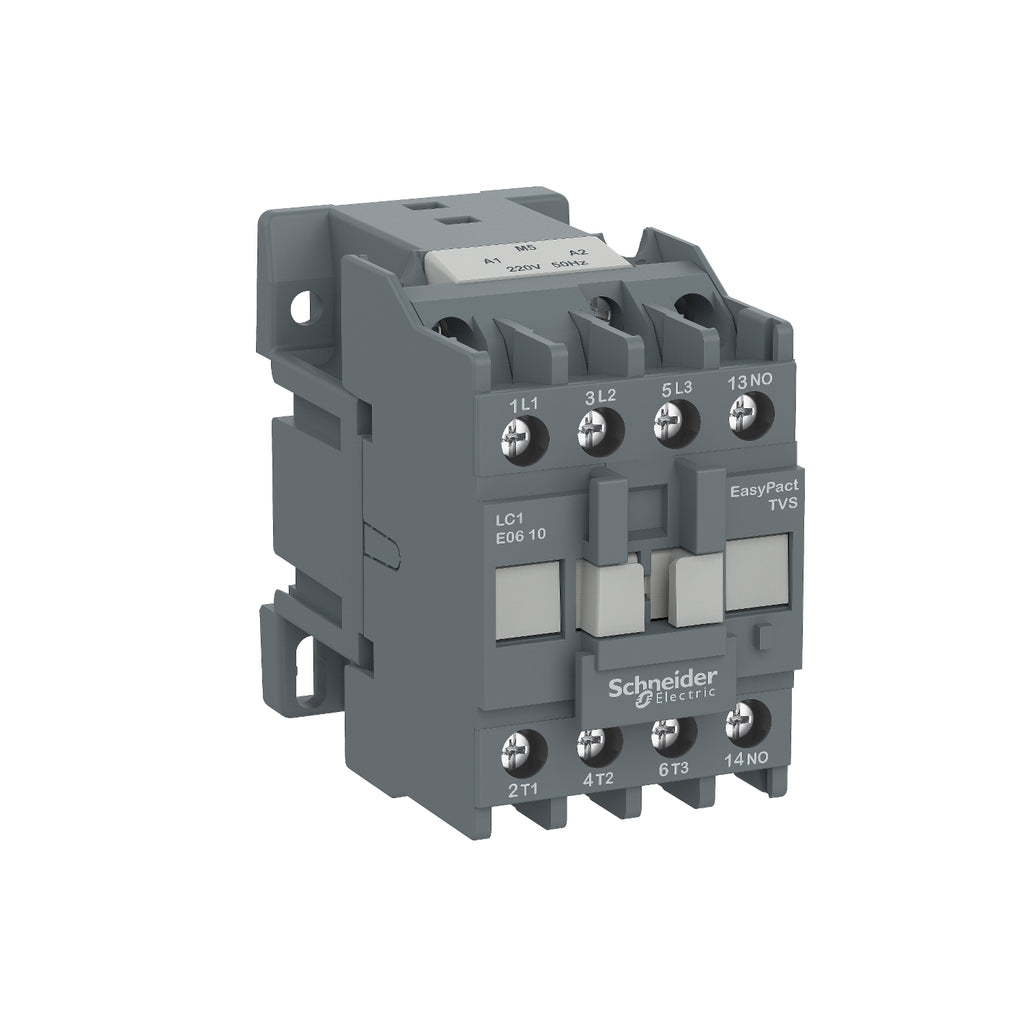

EasyPact TVS
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1E
|
|
| contactor application |
Motor control
Resistive load |
|
| utilisation category |
AC-3
AC-1 |
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| [Ue] rated operational voltage |
Power circuit: <= 690 V AC 50/60 Hz
|
|
| [Ie] rated operational current |
32 A (at <60 °C) at <= 415 V AC AC-1 for power circuit
18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
|
| motor power kW |
4 kW at 220...230 V AC 50/60 Hz
7.5 kW at 380...400 V 9 kW at 415 V 9 kW at 440 V 10 kW at 500 V 10 kW at 660...690 V |
|
| control circuit type |
AC at 50/60 Hz
|
|
| [Uc] control circuit voltage |
220 V AC 50/60 Hz
|
|
| height |
74 mm
|
|
| width |
45 mm
|
|
| depth |
80 mm
|
|
| net weight |
0.3 kg
|
|
| colour |
Grey (RAL 7011)
|
| auxiliary contact composition |
1 NO
|
|
|---|---|---|
| [Uimp] rated impulse withstand voltage |
6 kV coil not connected to the power circuit conforming to IEC 60947
|
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-4-1
|
|
| overvoltage category |
III
|
|
| Irms rated making capacity |
180 A at 440 V AC for power circuit conforming to IEC 60947-4-1
|
|
| rated breaking capacity |
144 A at 440 V for power circuit conforming to IEC 60947
|
|
| [Icw] rated short-time withstand current |
145 A 40 °C - 10 s for power circuit
84 A 40 °C - 60 s for power circuit 40 A 40 °C - 600 s for power circuit |
|
| associated fuse rating |
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
35 A gG at <= 690 V coordination type 1 for power circuit |
|
| average impedance |
2.5 mOhm - Ith 32 A 50 Hz for power circuit
|
|
| power dissipation per pole |
0.81 W AC-3
2.6 W AC-1 |
|
| control circuit voltage limits |
Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C)
Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) |
|
| operating time |
12...22 ms on closing
4...19 ms on opening |
|
| mechanical durability |
10000000 cycles
|
|
| maximum operating rate |
1800 cyc/h 60 °C
|
|
| inrush power in VA |
95 VA 50 Hz cos phi 0.75 (at 20 °C)
95 VA 60 Hz cos phi 0.75 (at 20 °C) |
|
| hold-in power consumption in VA |
8.5 VA 50 Hz cos phi 0.3 (at 20 °C)
8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
|
| heat dissipation |
2…3 W for control circuit
|
|
| minimum switching current |
5 mA for control circuit
|
|
| minimum switching voltage |
17 V for control circuit
|
|
| non-overlap time |
1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact |
|
| insulation resistance |
> 10 MOhm for control circuit
|
|
| electrical durability |
300000 cycles AC-1
1200000 cycles AC-3 |
|
| mounting support |
Plate
DIN rail |
|
| connections - terminals |
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end |
|
| tightening torque |
Power circuit: 1.2 N.m
Control circuit: 1.5 N.m |
| standards |
IEC 60947-1
IEC 60947-4-1 IEC 60947-5-1 |
|
|---|---|---|
| product certifications |
EAC
|
|
| IP degree of protection |
IP2x conforming to IEC 60529
|
|
| protective treatment |
TH (pollution degree 3) conforming to IEC 60068
|
|
| pollution degree |
3
|
|
| ambient air temperature for operation |
-5…55 °C
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| permissible ambient air temperature around the device |
-20…70 °C at Uc
|
|
| operating altitude |
3000 m without derating
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| mechanical robustness |
Vibrations contactor open: 1.5 Gn, 5...300 Hz
Vibrations contactor closed: 3 Gn, 5...300 Hz Shocks contactor open: 7 Gn for 11 ms Shocks contactor closed: 10 Gn for 11 ms |
