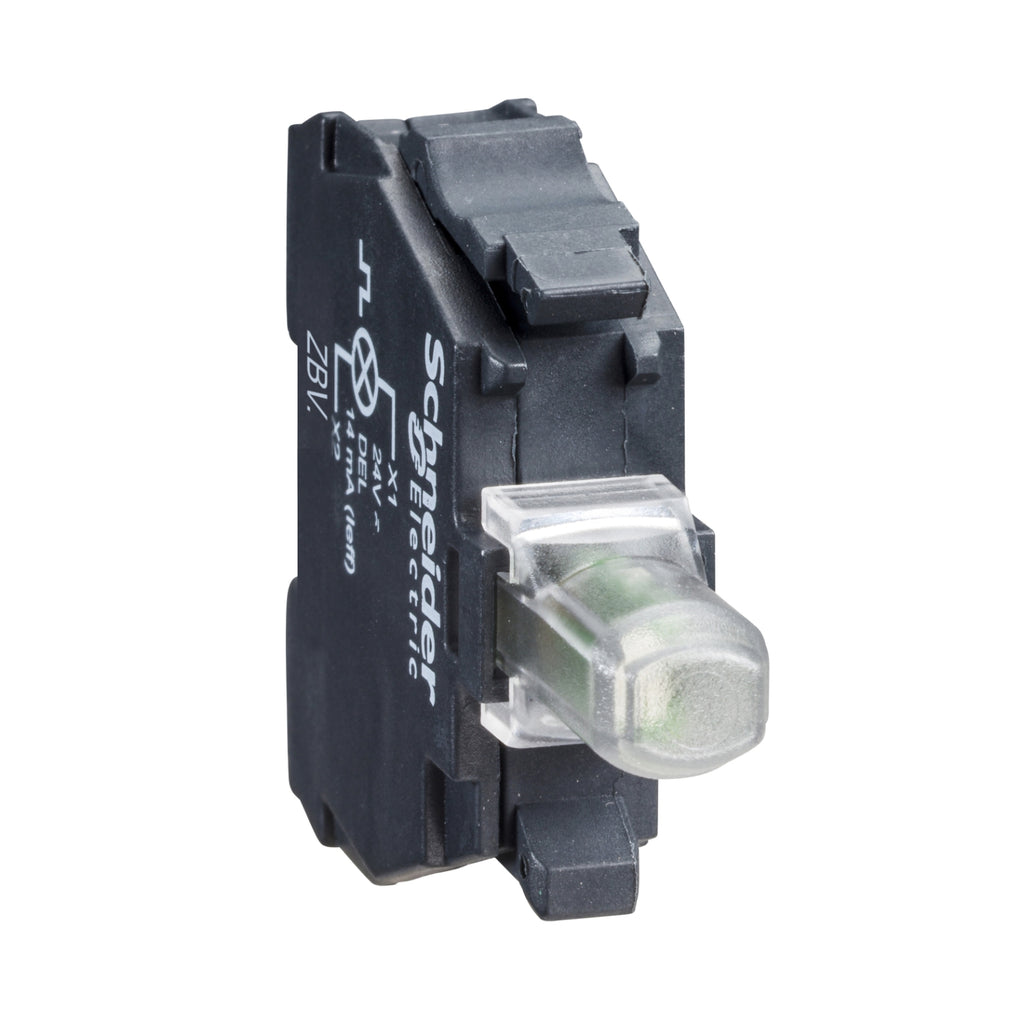

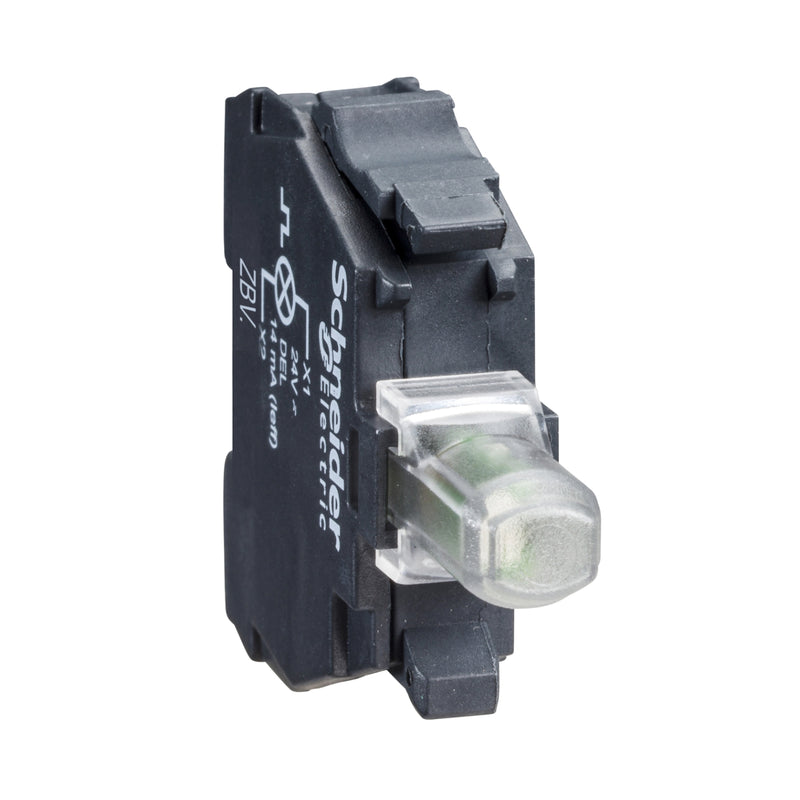

Light Blok Schneider ZBVM5 220 Vac

Harmony XB5
Harmony XB4

Light block

ZBV

5

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1

Steady

Protected LED

Integral LED

Direct

Orange

230...240 V AC at 50/60 Hz

0.017 kg

0.8…1.2 N.m conforming to EN 60947-1

Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver

195…264 V AC

14 mA

100000 h at rated voltage and 25 °C

1 kV conforming to IEC 61000-4-5

Front mounting

M1
M2
M3
M4
M5
M6
M10
MF1
P1
P2
PF1

Basic element

TH

-40…70 °C

-40…70 °C

IP20 conforming to IEC 60529

EN/IEC 60947-5-1
UL 508
EN/IEC 60947-5-4
EN/IEC 60947-5-5
CSA C22.2 No 14
JIS C8201-5-1
EN/IEC 60947-1
JIS C8201-1

UL listed
CSA

2 kV conforming to IEC 61000-4-4

10 V/m conforming to IEC 61000-4-3

6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Class B conforming to IEC 55011

230...240 V
