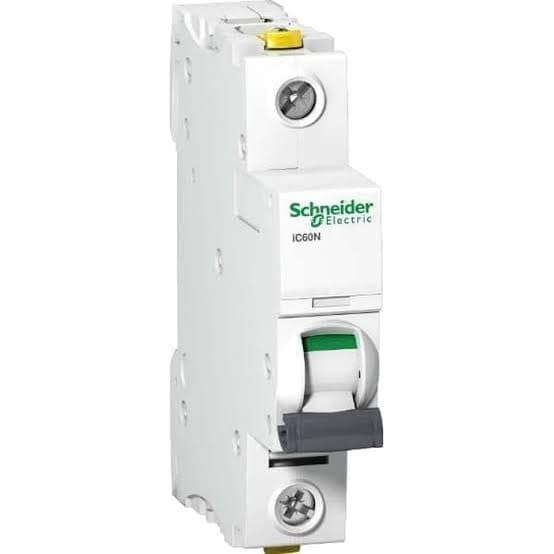

MCB Schneider iC60N, 6kA 1P 3A White A9F74103

Roll over image to zoom in

MCB Schneider iC60N, 6kA 1P 3A White A9F74103

Name: MCB Schneider iC60N, 6kA 1P 3A White A9F74103
Brand: Schneider
SKU: 0004719
Price: 94700.0 IDR
Availability: OutOfStock

Save 54%

SchneiderSKU: 0004719

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
device application	Distribution
range	Acti 9
product name	Acti 9 iC60
product or component type	Miniature circuit-breaker
device short name	IC60N
poles description	1P
number of protected poles	1
[In] rated current	3 A
network type	AC DC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 10 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
utilisation category	Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2
suitability for isolation	Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2
standards	EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2

Complementary
network frequency	50/60 Hz
magnetic tripping limit	8 x In +/- 20 %
[Ics] rated service breaking capacity	27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz 7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz 7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz 15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz 6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz 6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz 10 kA 100 % conforming to EN 60947-2 - 72 V DC 10 kA 100 % conforming to IEC 60947-2 - 72 V DC 15 kA 100 % conforming to EN 60947-2 - 12...60 V DC 15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC
limitation class	3 conforming to EN 60898-1 3 conforming to IEC 60898-1
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2
contact position indicator	Yes
control type	Toggle
local signalling	Trip indicator
mounting mode	Fixed
mounting support	DIN rail
comb busbar and distribution block compatibility	Top or bottom: YES
9 mm pitches	2
height	85 mm
width	18 mm
depth	78.5 mm
net weight	0.215 kg
colour	White
mechanical durability	20000 cycles
electrical durability	10000 cycles
connections - terminals	Single terminal (top or bottom) 1��25 mm�� rigid Single terminal (top or bottom) 1��16 mm�� flexible
wire stripping length	14 mm for top or bottom connection
tightening torque	2 N.m top or bottom
earth-leakage protection	Without

Environment
IP degree of protection	IP20 conforming to IEC 60529 IP20 conforming to EN 60529
pollution degree	3 conforming to EN 60947-2 3 conforming to IEC 60947-2
overvoltage category	IV
tropicalisation	2 conforming to IEC 60068-1
relative humidity	95 % at 55 ��C
operating altitude	0...2000 m
ambient air temperature for operation	-35��70 ��C
ambient air temperature for storage	-40��85 ��C
