Description
| device application |
Distribution
|
|
|---|---|---|
| range |
Acti 9
|
|
| product name |

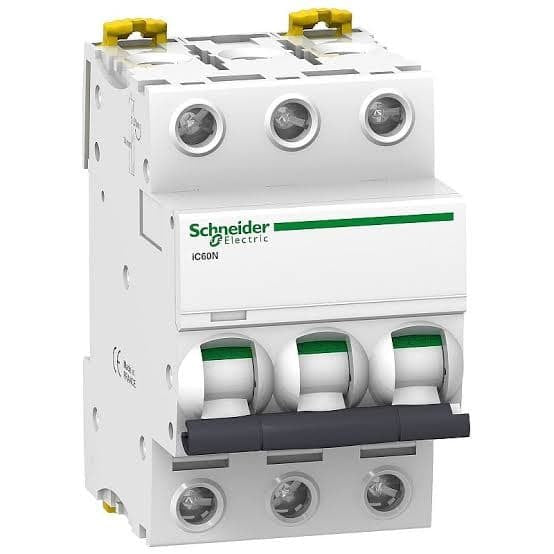

Acti 9 iC60
|
|
| product or component type |
Miniature circuit-breaker
|
|
| device short name |
IC60N
|
|
| poles description |
3P
|
|
| number of protected poles |
3
|
|
| [In] rated current |
40 A
|
|
| network type |
AC
DC |
|
| trip unit technology |
Thermal-magnetic
|
|
| curve code |
C
|
|
| breaking capacity |
6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2 |
|
| utilisation category |
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2 |
|
| suitability for isolation |
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 |
|
| standards |
IEC 60947-2
IEC 60898-1 EN 60898-1 EN 60947-2 |
| network frequency |
50/60 Hz
|
|
|---|---|---|
| magnetic tripping limit |
8 x In +/- 20 %
|
|
| [Ics] rated service breaking capacity |
15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz 4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz 15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz 4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz 27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz 27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz 6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz 6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz 10 kA 100 % conforming to IEC 60947-2 - 125...180 V DC 10 kA 100 % conforming to EN 60947-2 - 125...180 V DC |
|
| limitation class |
3 conforming to EN 60898-1
3 conforming to IEC 60898-1 |
|
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2 |
|
| contact position indicator |
Yes
|
|
| control type |
Toggle
|
|
| local signalling |
Trip indicator
|
|
| mounting mode |
Fixed
|
|
| mounting support |
DIN rail
|
|
| comb busbar and distribution block compatibility |
Top or bottom: YES
|
|
| 9 mm pitches |
6
|
|
| height |
85 mm
|
|
| width |
54 mm
|
|
| depth |
78.5 mm
|
|
| net weight |
0.375 kg
|
|
| colour |
White
|
|
| mechanical durability |
20000 cycles
|
|
| electrical durability |
10000 cycles
|
|
| connections - terminals |
Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible |
|
| wire stripping length |
14 mm for top or bottom connection
|
|
| tightening torque |
2 N.m top or bottom
|
|
| earth-leakage protection |
Separate block
|
| IP degree of protection |
IP20 conforming to IEC 60529
IP20 conforming to EN 60529 |
|
|---|---|---|
| pollution degree |
3 conforming to EN 60947-2
3 conforming to IEC 60947-2 |
|
| overvoltage category |
IV
|
|
| tropicalisation |
2 conforming to IEC 60068-1
|
|
| relative humidity |
95 % at 55 °C
|
|
| operating altitude |
0...2000 m
|
|
| ambient air temperature for operation |
-35…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
