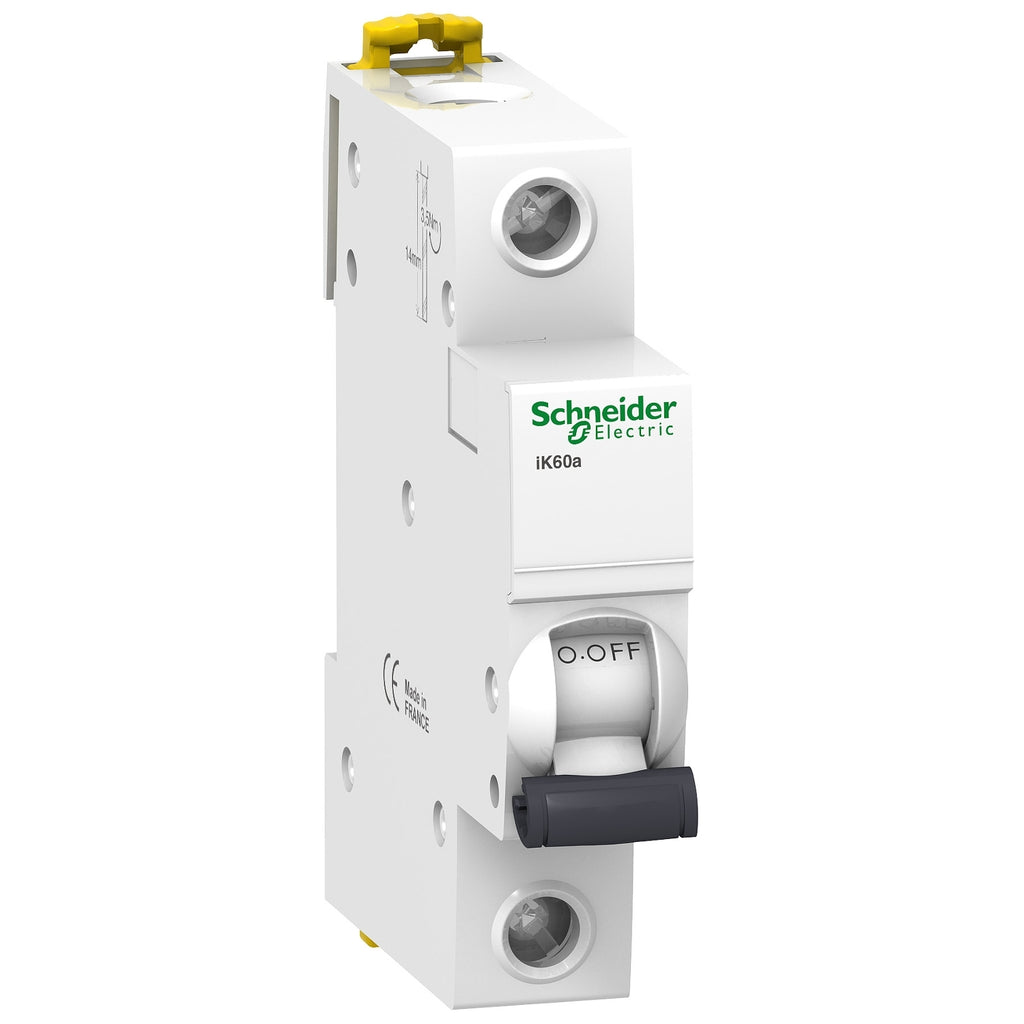

MCB Schneider iK60a, 4,5kA 1P 6A White A9K14106

Name: MCB Schneider iK60a, 4,5kA 1P 6A White A9K14106
Brand: Schneider
SKU: 0014912
Price: 60000.0 IDR
Availability: OutOfStock

Save 49%

SchneiderSKU: 0014912

Share this product

Main
device application	Distribution
range	Acti 9
product name	Acti 9 iK60
product or component type	Miniature circuit-breaker
device short name	IK60N
poles description	1P
number of protected poles	1
[In] rated current	6 A at 30 °C
network type	AC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	4500 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
suitability for isolation	Yes conforming to EN/IEC 60898-1
standards	EN/IEC 60898-1
product certifications	AENOR

Complementary
network frequency	50/60 Hz
magnetic tripping limit	5...10 x In
[Ics] rated service breaking capacity	4500 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz
limitation class	3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage	440 V AC 50/60 Hz conforming to EN/IEC 60898-1
[Uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60898-1
control type	Toggle
local signalling	ON/OFF indication
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	2
height	85 mm
width	18 mm
depth	78.5 mm
net weight	100 g
colour	White
mechanical durability	20000 cycles
electrical durability	10000 cycles
locking options description	Padlocking device
connections - terminals	Tunnel type terminal (top or bottom) 1…25 mm² rigid
wire stripping length	14 mm for top or bottom connection
tightening torque	2 N.m top or bottom
earth-leakage protection	Without

Environment
IP degree of protection	IP20 conforming to IEC 60529
pollution degree	2 conforming to EN/IEC 60898-1
overvoltage category	III
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C
