Description
| range of product |

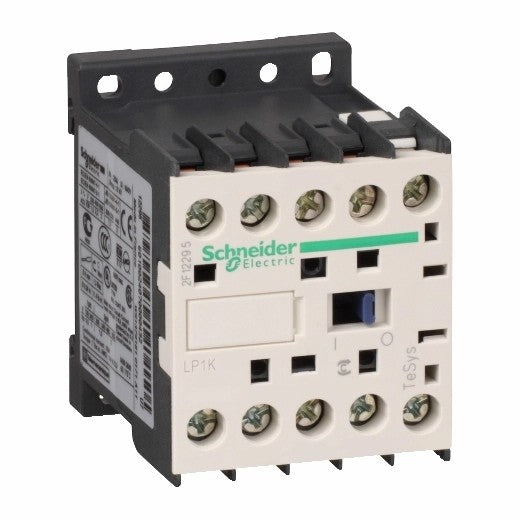

TeSys K
|
|
|---|---|---|
| range |
TeSys
|
|
| product or component type |
Contactor
|
|
| device short name |
LP1K
|
|
| contactor application |
Motor control
Resistive load |
|
| utilisation category |
AC-3
AC-1 AC-4 |
|
| poles description |
3P
|
|
| pole contact composition |
3 NO
|
|
| [Ie] rated operational current |
20 A (at <50 ��C) at <= 440 V AC AC-1 for power circuit
9 A at <= 440 V AC AC-3 for power circuit 16 A (at <70 ��C) at 690 V AC AC-1 for power circuit |
|
| auxiliary contact composition |
1 NO
|
| auxiliary contacts type |
type instantaneous 1 NO
|
|
|---|---|---|
| control circuit voltage limits |
Operational: 0.8...1.15 Uc (at <50 ��C)
Drop-out: 0.1...0.75 Uc (at <50 ��C) |
|
| [Ui] rated insulation voltage |
Power circuit: 600 V conforming to UL 508
Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-5-1 Signalling circuit: 600 V conforming to UL 508 Power circuit: 600 V conforming to CSA C22.2 No 14 Signalling circuit: 600 V conforming to CSA C22.2 No 14 |
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
| overvoltage category |
III
|
|
| mounting support |
Rail
Plate |
|
| flame retardance |
V1 conforming to UL 94
Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
|
| tightening torque |
1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2
1.3 N.m - on screw clamp terminals - with screwdriver flat �� 6 mm |
|
| [Ue] rated operational voltage |
Power circuit: 690 V AC 50/60 Hz
Signalling circuit: <= 690 V AC 50/60 Hz |
|
| [Ith] conventional free air thermal current |
20 A (at 50 ��C) for power circuit
10 A (at 50 ��C) for signalling circuit |
|
| Irms rated making capacity |
110 A AC for power circuit conforming to NF C 63-110
110 A AC for power circuit conforming to IEC 60947 110 A AC for signalling circuit conforming to IEC 60947 |
|
| rated breaking capacity |
110 A at 415 V conforming to IEC 60947
110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947 |
|
| associated fuse rating |
25 A gG at <= 440 V for power circuit
25 A aM for power circuit 10 A gG for signalling circuit conforming to IEC 60947 10 A gG for signalling circuit conforming to VDE 0660 |
|
| average impedance |
3 mOhm - Ith 20 A 50 Hz for power circuit
|
|
| inrush power in W |
3 W (at 20 ��C)
|
|
| hold-in power consumption in W |
3 W at 20 ��C
|
|
| operating time |
30...40 ms coil energisation and NO closing
10 ms coil de-energisation and NO opening |
|
| safety reliability level |
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
|
| mechanical durability |
10 Mcycles
|
|
| maximum operating rate |
3600 cyc/h
|
|
| minimum switching current |
5 mA for signalling circuit
|
|
| minimum switching voltage |
17 V for signalling circuit
|
|
| insulation resistance |
> 10 MOhm for signalling circuit
|
|
| height |
58 mm
|
|
| width |
45 mm
|
|
| depth |
57 mm
|
|
| net weight |
0.225 kg
|
| product certifications |
UL
CSA |
|
|---|---|---|
| ambient air temperature for operation |
-25���50 ��C
|
|
| ambient air temperature for storage |
-50���80 ��C
|
|
| operating altitude |
2000 m without derating
|
