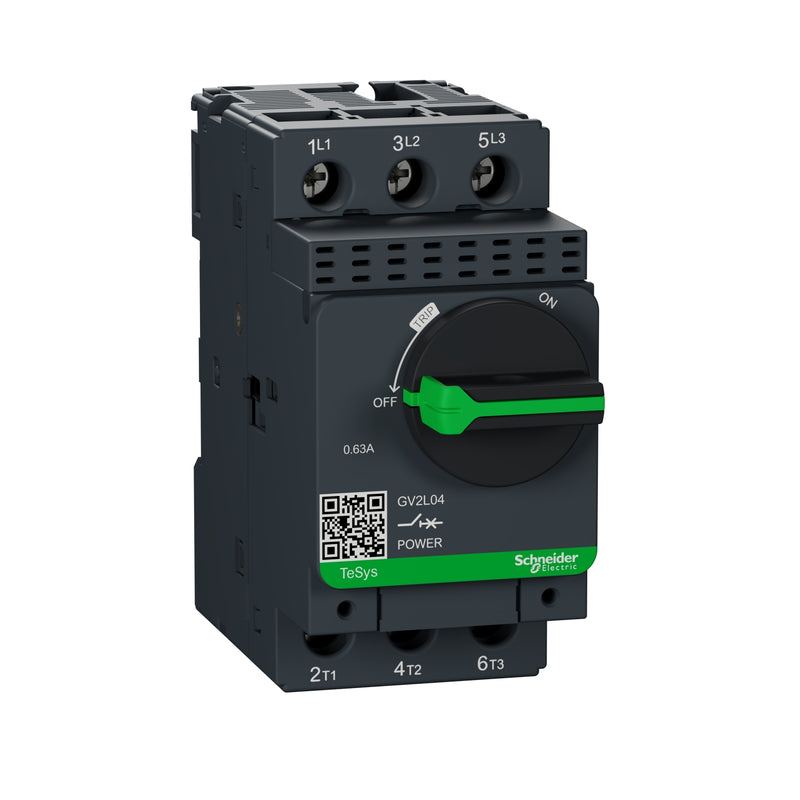

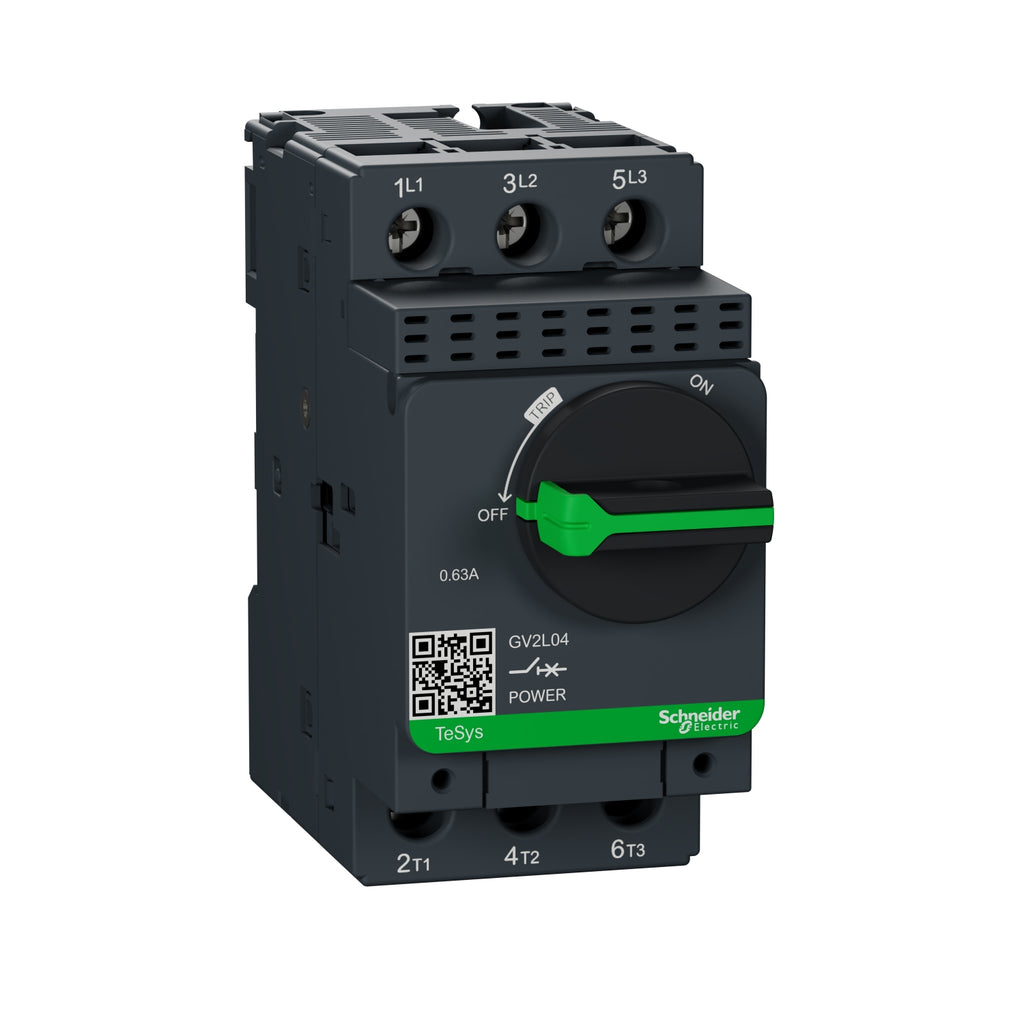

Motor Breaker Schneider GV2L10 2.2kW 100kA

TeSys

TeSys GV2

GV2L

Motor

3P

AC

Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1

50/60 Hz conforming to IEC 60947-2

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

Magnetic

78 A

35 mm symmetrical DIN rail: clipped
Panel: screwed (with 2 x M4 screws)

Any position

2.2 kW at 400/415 V AC 50/60 Hz
3 kW at 500 V AC 50/60 Hz
4 kW at 690 V AC 50/60 Hz

Rotary knob

690 V AC 50/60 Hz conforming to IEC 60947-2

690 V AC 50/60 Hz conforming to IEC 60947-2

IEC 60947-2 6 kV

1.8 W

100000 cycles

100000 cycles for AC-3 at 415 V

40 cyc/h

Continuous conforming to IEC 60947-4-1

Screw clamp terminals 2 cable(s) 1…6 mm² solid
Screw clamp terminals 2 cable(s) 1.5…6 mm² flexible without cable end
Screw clamp terminals 2 cable(s) 1…4 mm² flexible with cable end

1.7 N.m on screw clamp terminals

Shocks: 30 Gn conforming to IEC 60068-2-27
Vibrations: 5 Gn, 5...150 Hz conforming to IEC 60068-2-6

Yes conforming to IEC 60947-1

89 mm

45 mm

97 mm

0.33 kg

EN/IEC 60947-2
EN/IEC 60947-4-1
CSA C22.2 No 60947-4-1
UL 60947-4-1

IECEE CB Scheme
UL
CSA
CCC
EAC
RINA
LROS (Lloyds register of shipping)
DNV-GL
BV

TH

IP20 conforming to IEC 60529

IK04

-20…60 °C

-40…80 °C

960 °C conforming to IEC 60695-2-1

0...2000 m
